Explosion Proof LED Lighting for Hazardous Locations, Class I Div 1 and Div 2, UL844 Rated

Choose hazardous location lighting built for gas, vapor, and combustible dust areas, where standard fixtures cannot be used. This explosion proof LED lighting lineup covers Class I Division 1 lighting and Class I Division 2 lighting across multiple form factors, including linear fixtures, flood and high bay styles, portable work lights, and exit and emergency units for code compliance and safer operations.

UL844 listings across model families covering Class I, Class II, and Class III hazardous ratings, IP66 sealing, plus NEMA 4X and IK10 options where specified, ATEX and IECEx options, including a portable unit listed for Zone 0, UL 1598A Marine rated linear fixtures for wet and offshore use cases, Explosion proof exit and emergency lighting with UL924 and 3-hour backup options, 5-year warranty is listed on select families, including IR1, EX-ES03, FYS/FYD, and FFS/FFD

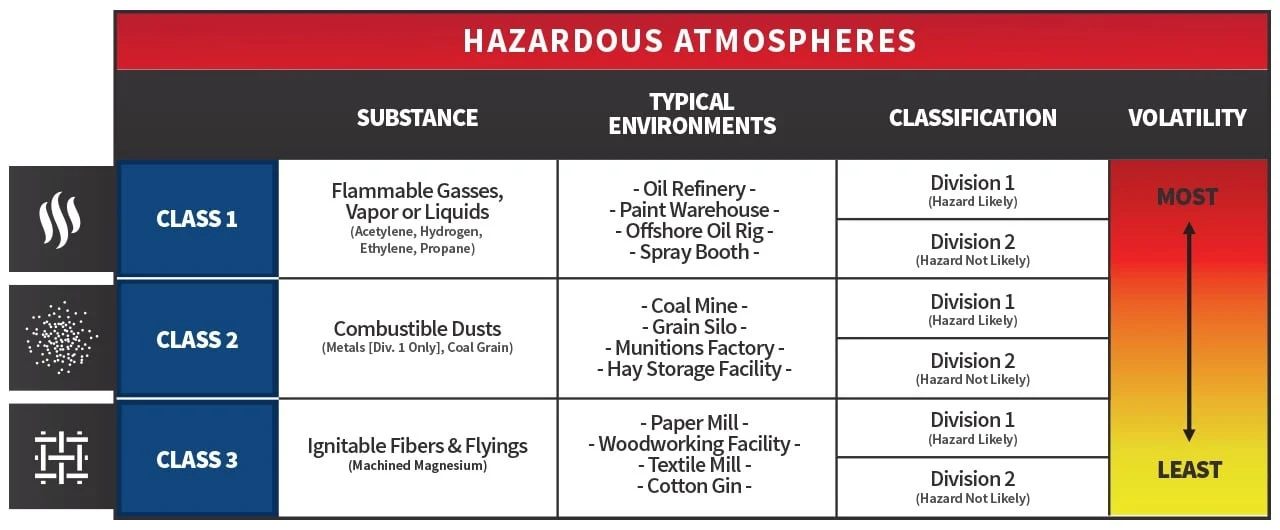

When to Choose Explosion Proof LED Lighting for Class I Div 1, Div 2, and Class II Dust Areas

Use explosion proof lights when your area classification requires hazardous location fixtures, for example Class I gases or vapors, and Class II combustible dust. Selection starts with the rating, then the form factor: linear fixtures for aisles, corridors, and process runs, flood and high bay styles for yards and high ceilings, and dedicated exit and emergency lighting for egress. If you need temporary lighting for maintenance, a certified portable work light can reduce downtime while staying compliant.

  • Class I Division 1 lighting: choose families that list C1D1 coverage (EXI, IR4, EX-C, EXD, EX-ES03, EX-MV01)

  • Class I Division 2 lighting: fit for areas where hazards are normally confined (IR1, IR3, IR7, EXH, EXA, plus many multi-rated families)

  • Class II hazardous location lighting (dust): choose C2D1-focused options where dust is primary (EXH, plus multi-rated families that list C2D1)

  • Wet, marine, offshore: prioritize UL 1598A Marine rated linear fixtures, and sealed IP-rated housings where specified

  • Wide-area coverage: flood and high bay families with selectable beam optics and multiple mounting styles

  • Egress and code: UL924 exit and emergency models with listed backup duration

  • Maintenance and confined spaces: certified portable work light options

Explosion proof linear LED fixtures installed along an industrial corridor providing uniform, low-glare illumination for hazardous locations.
High-resolution 16:9 3D render of the EXI Explosion Proof Linear LED light fixture with powder-coated aluminum body, dual-bar LED design, protective covers, and heavy-duty mounting bracket, on a soft gray-blue gradient background.

EXI Explosion Proof Linear LED, Class 1 Div 1, Class 1 Div 2, UL844, ATEX, IECEx

The EXI is our flagship explosion proof linear platform for the most demanding hazardous environments. Certified for Class 1 Division 1 and 2 (gas/vapor) and Class 2 (dust) categories, the EXI pairs an IP66/IK10 enclosure with corrosion‑resistant construction and flexible optical distributions (40°, 60°, 90°, 120°). Available in 2‑ft and 4‑ft builds with wide‑range drivers (100–277V or 200–480V), EXI supports ceiling or wall mounting, simple service access, and high lumen packages suitable for new installs or retrofit programs.

Key Features

  • Class 1 Div 1 & Div 2 coverage; Class 2 capable

  • IP66, IK10 impact resistance; marine‑ready enclosure

  • Optics: 40° / 60° / 90° / 120° beam patterns

  • 2‑ft and 4‑ft versions; up to 120W configurations

  • 100–277V or 200–480V drivers for universal deployment

  • Consistent photometric performance and long L70 lifetime

Variations & Ordering (EXI Family)

Model Wattage Typical Lumens Voltage Beam Options Approvals
EX-20W I2YZDA 20 W 2,800 lm 100 to 277 V or 200 to 480 V D40, D60, D90, D120 C1D1, C1D2, C2D1, C2D2, C3, IP66, IK10
EX-40W I2YZDA 40 W 5,600 lm 100 to 277 V or 200 to 480 V D40, D60, D90, D120 C1D1, C1D2, C2D1, C2D2, C3, IP66, IK10
EX-60W I2YZDA 60 W 8,400 lm 100 to 277 V or 200 to 480 V D40, D60, D90, D120 C1D1, C1D2, C2D1, C2D2, C3, IP66, IK10
EX-80W I4YZDA 80 W 11,200 lm 100 to 277 V or 200 to 480 V D40, D60, D90, D120 C1D1, C1D2, C2D1, C2D2, C3, IP66, IK10
EX-120W I4YZDA 120 W 16,800 lm 100 to 277 V or 200 to 480 V D40, D60, D90, D120 C1D1, C1D2, C2D1, C2D2, C3, IP66, IK10
IR1 Series Class 1 Div 2 hazardous location fixture – fiberglass reinforced housing with acrylic lens, corrosion-resistant wet-location lighting, single fixture 16:9 3D render.

IR1 Non-Metallic Hazardous Location Linear LED, Class 1 Div 2, Class 2 Div 2, Wet Location

The IR1 Series is our most economical explosion proof linear solution, designed specifically for Class I Division 2 (C1D2) and Class II Division 2 (C2D2) hazardous locations. Built with a non-metallic, corrosion-resistant fiberglass housing and a high-impact acrylic lens, the IR1 delivers reliable performance in marine environments, wet locations, solvent storage, petrochemical plants, coal facilities, wastewater plants, and food processing operations. Lightweight yet rugged, it provides a cost-effective alternative to traditional metal enclosures while meeting UL 844 and UL 1598A Marine standards. Available in LED strip and fluorescent T5/T8 versions, the IR1 is a versatile fixture for both retrofit and new installations.

Key Features

  • Class I, Division 2; Class II, Division 2 (Groups A, B, C, D, F, G)

  • Non-metallic fiberglass reinforced housing with stainless steel latches

  • Impact-resistant acrylic diffuser for maximum durability

  • LED Strip arrays (40W–80W) or T5/T8 fluorescent options

  • Typical output: 4,400 – 10,000 lumens

  • UL 1598A Marine Rated (saltwater), UL 844 C1D2/C2D2 compliant

  • Surface or suspended mounting options

  • 5-year warranty

Variations & Ordering (IR1 Table)

Model Wattage Typical Lumens Listings
IR1-4-1-LED-UNV 40 W 4,400 lm UL 1598 A Marine, UL 844 C1D2 and C2D2
High-resolution 16:9 3D render of the IR3 Series hazardous location linear fixture with powder-coated aluminum housing, acrylic lens cover, internal fluorescent/LED lamps, and robust mounting hardware.

IR3 Hazardous Location Linear LED, Class 1 Division 2, UL 1598A Marine

The IR3 serves Class 1 Division 2 applications—areas where hazardous gases or vapors are handled but are normally confined—and carries marine suitability for offshore or wet environments. An aluminum body and clear protective lens safeguard a two‑strip LED array (≈80–92W) that reaches up to ~16,000 lumens. Swivel brackets support surface or suspended installation, making IR3 a strong choice for pump rooms, pier corridors, and refueling shelters.

Key Features

  • Class 1 Division 2 certified; UL 1598A Marine for wet/corrosive environments

  • 4‑ft format with high output two‑strip array

  • Swivel brackets for precise aim; surface or suspended mounting

  • Broad driver range for facility compatibility

  • Optional emergency versions available

Variations & Ordering (IR3 Table)

Model Wattage Typical Lumens Voltage LED Strips
IR3-4-2-LED-DR-UNV 92 W 16,000 lm 120 to 277 V AC 2×46 W, 8,000 lm per strip
High-resolution 3D render of the IR4 Series Class 1 Div 1 explosion proof linear fixture with cast aluminum housing, reinforced glass tubes, fluorescent/LED options, and swivel mounting brackets.

IR4 Explosion Proof Linear LED, Class 1 Division 1, UL844, UL 1598A Marine

The IR4 is a heavy‑duty Class 1 Division 1 linear for areas with continuous or frequent presence of ignitable gases or vapors. A reinforced enclosure with tempered lens protects dual LED arrays (≈70W total) to deliver ~13,000 lumens in a 4‑ft form factor. Accessories include a wire guard, safety cable, and shock‑mount options. The IR4 installs via surface or suspension mount and is a top candidate for C1D1 walkways, compressor rooms, and process skids.

Key Features

  • Certified for C1D1 (Groups C, D) and C2D1/C2D2 (E, F, G)

  • ~70W array with ~13,000 lm typical output

  • Rugged aluminum construction with serviceable components

  • Mounting: surface or suspended; accessory wire guard and safety cable

  • Emergency egress option (selected configurations)

Variations & Ordering (IR4 Table)

Model Wattage Typical Lumens Voltage Beam CCT Operating Temp
IR4-4-2-LED-UNV 70 W 13,000 lm 120 to 277 V AC 120° 4000 K -20 to +45 °C
High-resolution 16:9 3D render of the MAES IR7 Series explosion proof linear light fixture with powder-coated steel housing, tempered glass panel, fluorescent tubes inside, and zinc latch details on a gradient background.

IR7 Hazardous Location Linear LED, Class 1 Div 2, Class 2 Div 2, High Lumen Output

The IR7 is a configurable Class 1 Division 2 / Class 2 Division 2 platform built around modular strip counts. Select 2, 3, 4, or 6 strips (≈40W each) to scale output from ~8,800 to ~26,400 lumens. A durable steel housing with a front access door simplifies service. Primary mounting uses end brackets with chain; surface and adjustable options are also available. Choose IR7 for high‑output lines, loading bays, and dusty production zones.

Key Features

  • C1D2 and C2D2 compliance in a rugged steel housing

  • 2 / 3 / 4 / 6 LED strips (≈40W per strip) for scalable output

  • Front access door, hinged ballast/driver entry

  • Mounting: chain or surface (adjustable kits available)

  • Wide lumen range for retrofit or new install matching

Variations & Ordering (IR7 Family)

Model Wattage Typical Lumens Voltage LED Strips
IR7-4-2-LEDDR-UNV 80 W 8,800 lm 120 to 277 V AC 2×40 W
IR7-4-3-LEDDR-UNV 120 W 13,200 lm 120 to 277 V AC 3×40 W
IR7-4-4-LEDDR-UNV 160 W 17,600 lm 120 to 277 V AC 4×40 W
IR7-4-6-LEDDR-UNV 240 W 26,400 lm 120 to 277 V AC 6×40 W
High-resolution 3D render of the EXH Series Class 2 Div 1 Linear LED fixture with copper-free aluminum housing, polycarbonate lens, LED strip array, and adjustable brackets, displayed on a soft gradient background.

EXH Hazardous Location Linear LED, Class 2 Division 1 Dust, Class 1 Division 2

Where combustible dust is the primary hazard, the EXH provides a sealed NEMA 4X and IP66 linear solution. Typical 4‑ft versions are offered in 40W and 80W with ~5,480 and ~8,400 lumens respectively, achieving efficacies up to ~140 lm/W. It’s a match for grain handling, milling, packaging lines, and dusty process areas—while also carrying C1D2 ratings for facilities with occasional gas/vapor exposure.

Key Features

  • Class 2 Division 1 dust rating; also Class 1 Division 2

  • NEMA 4X / IP66 enclosure; corrosion‑resistant build

  • 40W & 80W typical options; up to ~140 lm/W

  • Surface or pendant mounting

  • Strong value for dust‑dominant facilities and retrofits

Variations & Ordering (EXH Family)

Model Wattage Typical Lumens Voltage Options CCT Beam
EX-10W H2YZDA 10 W 1,400 lm 100 to 277 V or 200 to 480 V 4000 to 5700 K 120°
EX-20W H2YZDA 20 W 2,800 lm 100 to 277 V or 200 to 480 V 4000 to 5700 K 120°
EX-30W H2YZDA 30 W 4,200 lm 100 to 277 V or 200 to 480 V 4000 to 5700 K 120°
EX-30W H4YZDA 30 W 4,200 lm 100 to 277 V or 200 to 480 V 4000 to 5700 K 120°
EX-40W H4YZDA 40 W 5,600 lm 100 to 277 V or 200 to 480 V 4000 to 5700 K 120°
EX-50W H4YZDA 50 W 7,000 lm 100 to 277 V or 200 to 480 V 4000 to 5700 K 120°
EX-60W H4YZDA 60 W 8,400 lm 100 to 277 V or 200 to 480 V 4000 to 5700 K 120°
EXA Series Class 1 Div 2 & Class 2 Div 1 explosion proof flood light – rugged aluminum housing with LED array, heat-dissipating fins, and adjustable U-bracket, 16:9 single fixture 3D render.

EXA Series Hazardous Location Flood Light, Class 1 Div 2, Class 2 Div 1, UL844

The EXA Series provides rugged flood lighting for hazardous outdoor yards and process areas. Certified for C1D2 and C2D1, it features durable housings, multiple beam spreads, and adjustable mounting options for flexible deployment. Ideal for refineries, pump stations, and chemical storage yards

Key Features

  • Class 1 Div 2 & Class 2 Div 1 certified

  • IP66/IK10 impact and moisture protection

  • Beam optics: 40°, 60°, 90°, 120°

  • Wide wattage range: 20W–200W (up to ~28,000 lumens)

  • Mounting: wall, ceiling, or pole

Variations & Ordering (EXA Series Family)

Model W Catalog code Beam options CCT Ratings
EX-20W 20 EX-20W A2N50D120 D40, D60, D90, D120 5000 K UL844 C1D2 A, B, C, D, C2D1 E, F, G, C2D2 E, F, G, Class III, IP66, IK10
EX-40W 40 EX-40W A2N50D120 D40, D60, D90, D120 5000 K UL844 C1D2 A, B, C, D, C2D1 E, F, G, C2D2 E, F, G, Class III, IP66, IK10
EX-60W 60 EX-60W A2N50D120 D40, D60, D90, D120 5000 K UL844 C1D2 A, B, C, D, C2D1 E, F, G, C2D2 E, F, G, Class III, IP66, IK10
EX-80W 80 EX-80W A2N50D120 D40, D60, D90, D120 5000 K UL844 C1D2 A, B, C, D, C2D1 E, F, G, C2D2 E, F, G, Class III, IP66, IK10
EX-100W 100 EX-100W A2N50D120 D40, D60, D90, D120 5000 K UL844 C1D2 A, B, C, D, C2D1 E, F, G, C2D2 E, F, G, Class III, IP66, IK10
EX-150W 150 EX-150W A3N50D120 D40, D60, D90, D120 5000 K UL844 C1D2 A, B, C, D, C2D1 E, F, G, C2D2 E, F, G, Class III, IP66, IK10
EX-180W 180 EX-180W A3N50D120 D40, D60, D90, D120 5000 K UL844 C1D2 A, B, C, D, C2D1 E, F, G, C2D2 E, F, G, Class III, IP66, IK10
EX-200W 200 EX-200W A3N50D120 D40, D60, D90, D120 5000 K UL844 C1D2 A, B, C, D, C2D1 E, F, G, C2D2 E, F, G, Class III, IP66, IK10
EX-C Series Class 1 Div 1 explosion proof LED flood light – compact round aluminum housing with concentric LED array, U-bracket mount, hazardous location lighting, 16:9 single fixture 3D render.

EX-C Series Explosion Proof LED Flood Light, Class 1 Div 1, ATEX, IECEx

The EX-C Series is a compact C1D1 flood light designed for confined hazardous zones like oil & gas skids, compressor stations, and process units. With outputs up to 42,000 lumens, it delivers dependable visibility where safety is critical

Key Features

  • Certified for Class 1 Div 1 & Div 2 (Groups A–G)

  • Output range: 20W–300W (up to ~42,000 lumens)

  • Optics: 40°, 60°, 90°, 120° beam options

  • Wall or pendant mounting options

  • IP66/IK10 enclosure, UL844, ATEX, IECEx

Variations & Ordering (EX-C Series Family)

Model W Catalog code Voltage Typical lumens Ratings
EX-20W 20 EX-20W C2YZDA 100 to 277 V, 200 to 480 V N/A ATEX IIC Gb Ex db IIC T6 Gb, IIB T6 Gb, IIIC T80 Db, IECEx Ex db IIC T6 Gb, IP66
EX-60W 60 EX-60W C2YZDA 100 to 277 V, 200 to 480 V N/A ATEX IIC Gb Ex db IIC T6 Gb, IIB T6 Gb, IIIC T80 Db, IECEx Ex db IIC T6 Gb, IP66
EX-80W 80 EX-80W C2YZDA 100 to 277 V, 200 to 480 V N/A ATEX IIC Gb Ex db IIC T6 Gb, IIB T6 Gb, IIIC T80 Db, IECEx Ex db IIC T6 Gb, IP66
EX-100W 100 EX-100W CYZDA 100 to 277 V, 200 to 480 V 14,000 ATEX IIC Gb Ex db IIC T6 Gb, IIB T6 Gb, IIIC T80 Db, IECEx Ex db IIC T6 Gb, IP66
EX-150W 150 EX-150W CYZDA 100 to 277 V, 200 to 480 V N/A ATEX IIC Gb Ex db IIC T6 Gb, IIB T6 Gb, IIIC T80 Db, IECEx Ex db IIC T6 Gb, IP66
EX-200W 200 EX-200W C3YZDA 100 to 277 V, 200 to 480 V 28,000 ATEX IIC Gb Ex db IIC T6 Gb, IIB T6 Gb, IIIC T80 Db, IECEx Ex db IIC T6 Gb, IP66
EX-300W 300 EX-300W C3YZDA 100 to 277 V, 200 to 480 V 42,000 ATEX IIC Gb Ex db IIC T6 Gb, IIB T6 Gb, IIIC T80 Db, IECEx Ex db IIC T6 Gb, IP66
EXD Series Class 1 Div 1 explosion proof flood & high bay LED light – rugged rectangular aluminum housing with dense LED array, heat-dissipating fins, and corrosion-proof design, 16:9 single fixture 3D render.

EXD Series Explosion Proof Flood and High Bay, Class 1 Div 1, High Output

The EXD Series combines the power of a flood light with the coverage of a high bay. Certified for C1D1 hazardous locations, it’s a top choice for power plants, refineries, and chemical facilities requiring large-scale illumination

Key Features

  • C1D1 certified for Groups C & D

  • Wattage: 180W (~30,000 lm output)

  • Beam optics: 40°, 60°, 90°, 120°

  • Rugged, corrosion-proof housing

  • Mounting: ceiling, wall, or high bay

Variations & Ordering (EXD Series Family)

Model group Wattage options Beam options Lens options Mounting Ratings
EXD Series 60, 80, 100, 150, 180, 200, 300 W D40, D60, D90, D120 Flat or spherical glass Wall bracket, ceiling bracket UL844 C1D1 C, D; C1D2 A, B, C, D; C2D1 E, F, G; C2D2 E, F, G; Class III; ATEX IIC Gb Ex db IIC T6 Gb, IIB T6 Gb, IIIC T80 Db; IECEx Ex db IIC T6 Gb; IP66, IK10
High-resolution 3D render of a portable explosion proof LED work light with a rugged yellow and black housing, extendable arm, coiled power cable, and adjustable LED lamp head. Industrial-grade design ideal for hazardous location lighting and temporary jobsite illumination.

EX-MV01 Portable Explosion Proof LED Work Light, Class 1 Division 1, Zone 0, ATEX, IECEx

The EX-MV01 is a lightweight, portable LED safety light for hazardous locations—engineered for Class I Division 1 and Division 2 tasks across maintenance, inspection, tank cleaning, confined spaces, and emergency use. A deployable mast with 360° rotation puts light exactly where it’s needed; compact design and battery power make it ideal for temporary and hard-to-reach areas.

Key Features

  • Certified: UL844 C1D1 (Groups A–D, T4), Class I Zone 0/ATEX/IECEx Ex ia IIC T4 Ga.

  • Output & Modes: High 1,600 lm / Low ≥500 lm / Flashing; CCT 4500–5000 K.

  • Runtime: Up to 10 hours (battery indicator + low-level warning).

  • Optics: 125° wide beam for close-range tasks.

  • Mast & Aim: Deployable mast with 360° rotation; multiple positions.

  • Rugged Build: IP66; aluminum alloy head, heavy-duty plastic body; 15.4 lb for easy carry.

  • Power & Charging: 10.8 V / 9 Ah Ni-MH battery; rated 5–19.5 W; 100–277 VAC charger.

  • Environment: Valid from –20°C to 40°C; IP66 dust/water protection.

Variations & Ordering (EX-MV01 Table)

Model Modes Output and runtime Beam and CCT Power and battery Size and weight Ratings and certifications
EX-MV01 High, Low, Flashing 1600 lm high, ≥500 lm work, up to 10 h 125°, 4500 to 5000 K 10.8 V 9 Ah Ni-MH, rated 5 to 19.5 W 386×210×237 mm, deploy height 567 to 825 mm, 7 kg IP66, -20 to +40°C, UL844 C1D1 Groups A B C D T4, Class I Zone 0 AEx ia IIC T4 Ga, Ex ia IIC T4 Ga
High-resolution 3D render of an explosion proof LED exit and emergency light combo with two adjustable LED heads, rugged aluminum housing, and bold red EXIT sign on a neutral gradient background.

EX-ES03 Class 1 Division 1 Explosion Proof Exit and Emergency Light Combo, UL924, NEMA 4X, IP66

Purpose-built for hazardous egress routes, EX-ES03 combines an LED exit legend with two high-lumen, fully adjustable emergency heads, so one unit handles both wayfinding and illumination under emergency power. Typical deployments include compressor rooms, tank farms, offshore platforms, stairwells, corridors, and pump galleries across oil & gas and chemical plants.

Key Features

  • Hazardous-location listings: UL844 C1D1/C1D2 and dust classes; UL924 emergency lighting (select variants ETL listed)

  • Battery backup: 3-hour emergency duration; independent backup for the exit legend and for the twin spot heads (better redundancy during an event)

  • Adjustable beams: Two high-lumen spotlights adjust horizontally and vertically for targeted egress illumination

  • Ingress protection: NEMA 4X and IP66 enclosure; IK10 enclosure impact resistance (IK08 glass with metal guard) for harsh industrial and marine environments

  • Conduit-ready: Dual 3/4" NPT hubs to simplify hazardous routing and sealing

  • Legend options: Red or green EXIT legend; directional arrows/labels available; impact-resistant panel

  • Power & runtime: 5W per emergency head; 3–5W legend; typical input 100–277VAC (select DC options on combo variant)

  • Environment: Charge 0°–45°C; discharge –20°–60°C; sealed for wet locations; 50,000-hour LED life; 5-year limited warranty

Variations & Ordering (EX-ES03 Family)

Model Type Input Voltage Power Backup Duration Exit Legend Options Key Ratings
ES03A1 Emergency Light 120–277VAC, 50/60Hz 2 × 5W heads 3 hours N/A UL844, UL924 (ETL), NEMA 4X, IP66, IK10, C1D1/C1D2, C2D1/C2D2, Class III
ES03A2 Emergency + Exit Combo 100–277VAC or 12–48VDC, 50/60Hz 2 × 5W heads + 3–5W legend 3 hours (independent systems) Red / Green letters, directional arrows UL844, UL924, NEMA 4X, IP66, IK10, C1D1/C1D2, C2D1/C2D2, Class III
ES03A3 Exit Sign Only 100–277VAC, 50/60Hz 3–5W legend 3 hours Red / Green letters, directional arrows UL844, UL924, NEMA 4X, IP66, IK10, C1D1/C1D2, C2D1/C2D2, Class III
ES03C1 Emergency Light (Screw-Cover) 120–277VAC, 50/60Hz 2 × 5W heads 3 hours N/A UL844, UL924 (ETL), NEMA 4X, IP66, IK10, C1D1/C1D2, C2D1/C2D2, Class III
FYS and FYD Series Explosion Proof LED Light, angled view, blue bezel, finned heatsink, yoke mounting bracket

FYS and FYD Series Explosion Proof LED Light for Class I Division 2, IP66, IK10

The FYS and FYD Series Explosion Proof LED Lights are engineered for hazardous and industrial environments, with certification for Class I, Division 2 (Groups A, B, C, D), Class II, Division 2 (Groups F, G), and Class III. Built with an IP66 and IK10 rated design, each fixture is fully sealed to help reduce maintenance over its lifetime. These luminaires support 100 to 277VAC and 200 to 480VAC input options, offer 150 lm/W efficacy, and provide multiple beam angle choices (25°, 60°, 90°, 110°) for targeted illumination. With multiple mounting options and 90-minute emergency capability, the platform is designed for reliable operation and long-term uptime, backed by a 5-year warranty.

Key Features

  • Certified for Class I, Division 2 (Groups A, B, C, D), Class II, Division 2 (Groups F, G), and Class III hazardous locations Maes Lighting Hazardous Explosi…

  • UL Certified and UL 844 Certified, plus RoHS compliant markings shown in the spec sheet Maes Lighting Hazardous Explosi…

  • IP66 and IK10 rated for harsh environments Maes Lighting Hazardous Explosi…

  • High efficiency performance listed at 150 lm/W Maes Lighting Hazardous Explosi…

  • Dual input voltage ranges: 100 to 277VAC and 200 to 480VAC Maes Lighting Hazardous Explosi…

  • Output range spans 3,000 to 12,000 lm (FYS) and 15,000 to 30,000 lm (FYD), by model Maes Lighting Hazardous Explosi…

  • Beam angle options: 25°, 60°, 90°, and 110° Maes Lighting Hazardous Explosi…

  • Multiple mounting options listed: Pendant, Yoke, Ceiling, Stanchion, Wall, and Pole Maes Lighting Hazardous Explosi…

  • 90-minute emergency operation listed, long lifespan over 100,000 hours, and engineered power supply details including fully potted drivers, ALT over 5 years of 24/7 operation, and MTBF exceeding 150,000 hours with annual failure rate under 0.3%

Variations & Ordering (FYS and FYD Family)

Model group Models included Power range (W) Lumen range (lm) Housing Size Key specs
FYS FYS-20W, FYS-40W, FYS-50W, FYS-60W, FYS-70W, FYS-80W 20 to 80W 3,000 to 12,000 lm φ308mm x 166mm 100 to 277VAC / 200 to 480VAC; IP66, IK10; Class I Div 2 (A-D), Class II Div 2 (F,G), Class III
FYD FYD-100W, FYD-120W, FYD-130W, FYD-140W, FYD-160W, FYD-180W, FYD-200W 100 to 200W 15,000 to 30,000 lm φ358mm x 157.4mm 100 to 277VAC / 200 to 480VAC; IP66, IK10; Class I Div 2 (A-D), Class II Div 2 (F,G), Class III
High-resolution 3D render of an explosion proof LED exit and emergency light combo with two adjustable LED heads, rugged aluminum housing, and bold red EXIT sign on a neutral gradient background.

FFS and FFD Series Explosion Proof LED Flood Light for Class I Division 2 Locations, IP66, IK10

Maes Lighting FFS and FFD Series Explosion Proof LED Flood Lights are fully sealed luminaires built for hazardous and industrial environments. The series is certified for Class I, Division 2 (Groups A, B, C, D), Class II, Division 2 (Groups F, G), and Class III, with IP66 and IK10 ratings for harsh locations. Across the family, output options range from 3,000 to 30,000 lumens at 150 lm/W, with input voltage choices of 100 to 277VAC or 200 to 480VAC. Select from 25°, 60°, 90°, or 110° beam angles and CRI 70 or 80, plus multiple mounting options and 90-minute emergency capability.

Key Features

  • Certified for Class I, Division 2 (Groups A, B, C, D), Class II, Division 2 (Groups F, G), and Class III applications Maes Lighting Hazardous Explosi…

  • IP66 and IK10 rated for harsh environments Maes Lighting Hazardous Explosi…

  • RoHS compliant product markings shown in the spec sheet Maes Lighting Hazardous Explosi…

  • Lumen efficacy listed at 150 lm/W Maes Lighting Hazardous Explosi…

  • Input voltage options: 100 to 277VAC, or 200 to 480VAC Maes Lighting Hazardous Explosi…

  • Beam angle options: 25°, 60°, 90°, 110° Maes Lighting Hazardous Explosi…

  • CRI options: 70 or 80 Maes Lighting Hazardous Explosi…

  • Lumen packages by model, 3,000 to 12,000 lm (FFS Series) and 15,000 to 30,000 lm (FFD Series) Maes Lighting Hazardous Explosi…

  • Multiple mounting options listed: Pendant, Yoke, Ceiling, Stanchion, Wall, Pole Maes Lighting Hazardous Explosi…

  • Emergency operation for 90 minutes, long lifespan over 100,000 hours, 5-year warranty, fully potted drivers with ALT and MTBF performance details listed

Variations & Ordering (FFS and FFD Family)

Model group Models included Power range (W) Lumen range (lm) Housing Size (mm) Key specs Emergency Backup Warranty
FFS FFS-20W, FFS-40W, FFS-50W, FFS-60W, FFS-70W, FFS-80W 20 to 80W 3,000 to 12,000 lm 320 x 200 x 93 100 to 277VAC / 200 to 480VAC; IP66, IK10; Class I Div 2 (A-D), Class II Div 2 (F,G), Class III 90 minutes 5 Years
FFD FFD-100W, FFD-120W, FFD-130W, FFD-150W, FFD-160W, FFD-180W, FFD-200W 100 to 200W 15,000 to 30,000 lm 390 x 288 x 142.4 100 to 277VAC / 200 to 480VAC; IP66, IK10; Class I Div 2 (A-D), Class II Div 2 (F,G), Class III 90 minutes 5 Years
High temperature LED lighting applications—steel mill ladle pour, paper mill calender stack, hot process bays—reliable lighting for 80–150 °C industrial environments.

Hazardous Location LED Lighting Applications for Oil and Gas, Chemical, Marine, and Dust Areas

Explosion proof LED lighting is used anywhere classified atmospheres require listed hazardous location fixtures and long-term reliability. Across this lineup, applications include wet and marine areas, process skids, compressor rooms, dusty processing lines, outdoor yards, and dedicated egress routes where exit and emergency lighting must remain compliant. Portable certified lighting supports maintenance and inspection tasks without compromising safety requirements.

Common industries and areas mentioned in the document include:

  • Refineries, petrochemical plants, chemical storage yards

  • Oil and gas skids, compressor stations, process units, process skids

  • Grain handling, milling operations, packaging lines, dusty process areas

  • Marine and wet environments, pump rooms, pier corridors, refueling shelters

  • Loading bays, high-output lines, dusty production zones

  • Tank farms, stairwells, corridors, pump galleries, offshore platforms

  • Maintenance, inspection, tank cleaning, confined spaces

IP66 wet-location gasket and stainless Torx fasteners on high-temperature industrial LED fixture with sealed cable gland, L70/L90, 3G/5G vibration rated.

Explosion Proof Lighting Certifications and Compliance, UL844, UL924, IP66, IK10, NEMA 4X

Hazardous location fixtures should be selected by the exact class, division, and group requirements, then matched to sealing, impact protection, and the installation environment. This page includes UL844 explosion proof lights across multiple form factors, plus models with UL924 for exit and emergency lighting. Where specified, families add IP66 sealing, NEMA 4X enclosures, IK10 impact ratings, and global approvals like ATEX and IECEx for projects that require them.

Hazardous location coverage (as listed):

  • Class I Division 1 and Division 2 options across multiple families

  • Class II dust ratings, including Class II Division 1 on select models and Division 2 across multiple platforms

  • Class III listings appear on several flood, exit/emergency, and platform families

IP66 wet-location gasket and stainless Torx fasteners on high-temperature industrial LED fixture with sealed cable gland, L70/L90, 3G/5G vibration rated.

UL standards and related listings mentioned:

  • UL844 across listed explosion proof and hazardous location families

  • UL 1598A Marine on select linear fixtures for wet and offshore environments

  • UL924 is listed on the explosion proof exit and emergency family

Ingress and durability ratings mentioned:

  • IP66 sealing across many families, NEMA 4X where specified, and IK10 where listed

Global approvals and markings (when specified):

  • ATEX and IECEx are listed on specific families (flood/high bay, linear, and portable)

  • RoHS markings are shown for select platform families

Explosion Proof LED Lighting FAQs for Hazardous Locations

What is explosion proof LED lighting for hazardous location areas?

Explosion proof LED lighting refers to fixtures listed for hazardous locations where ignitable gases, vapors, or combustible dust may be present. In this lineup, UL844 appears across multiple families, with models covering Class I Division 1 and Class I Division 2, plus Class II dust ratings and Class III where specified. Selection should be based on your area classification, then matched to the right form factor, linear, flood/high bay, portable, or exit and emergency, for the installation.

Which models support Class I Division 1 lighting and UL844 explosion proof listings?

For Class I Division 1 lighting, the document lists C1D1 coverage on several families, including EXI (linear), IR4 (linear), EX-C (flood), EXD (flood/high bay), EX-ES03 (exit and emergency), and EX-MV01 (portable work light). Each should still be matched to the exact groups and any additional Class II or Class III needs listed for your site. Share your classification and install details, and we can narrow the best-fit family quickly.

How do I choose Class I Division 2 lighting vs Class II hazardous location lighting for dust?

Class I Division 2 lighting is typically used where gases or vapors are handled but normally confined, and several linear and flood options in the document target that use case (IR1, IR3, IR7, EXA, plus multi-rated families). For dust-heavy operations, prioritize Class II ratings, and if dust is the primary hazard, the EXH family is positioned specifically for Class 2 Division 1 dust while also listing C1D2 coverage. Start with your dust versus gas exposure, then match output and mounting.

Do you offer explosion proof linear LED fixtures for wet, marine, and offshore environments?

Yes, the document lists multiple linear families with marine and wet-environment suitability. IR1 is described for wet locations and marine environments and lists UL 1598A Marine, IR3 lists UL 1598A Marine for offshore or wet environments, and IR4 includes UL 1598A Marine alongside its hazardous ratings. For projects that also prioritize sealed ingress protection and impact resistance, EXI lists IP66 and IK10 and is described with a marine-ready enclosure. Provide your environment details, and we will align rating and construction.

What optics and mounting options are available for hazardous location LED flood lights?

If you need area coverage and controlled beam spreads, the flood and high bay families list multiple optics and mounting choices. EXA and EX-C both list 40°, 60°, 90°, and 120° beam options with mounting options such as wall, ceiling, pole, or pendant depending on family. EXD also lists the same beam options and includes lens choices (flat or spherical glass) with bracket mounting options. Share target coverage and mounting constraints so we can recommend the right optic and bracket.

Do you have portable explosion proof LED work lights for maintenance and confined spaces?

The document includes a portable option, EX-MV01, designed for temporary job sites and confined work. It lists hazardous approvals including UL844 Class I Div 1 and Div 2 and an ATEX Zone 0 marking, plus IP66 protection. Performance details include a high mode listed at 1,600 lumens, a low mode listed at 500 lumens or higher, and runtimes listed up to 8 hours (high) and 20 hours (low) on a 6.4Ah battery. For quoting, share your runtime needs and charging access.

Is there UL924 explosion proof exit and emergency lighting for Class I Division 1 egress routes?

Yes, the EX-ES03 family is listed with UL844 and UL924 and is positioned for hazardous egress use. The document includes variants for emergency-only, exit-only, and a combo configuration, with a 3-hour backup duration listed. It also lists 2 × 5W emergency heads, a 3 to 5W exit legend for exit-capable variants, red or green letters with directional arrows, and NEMA 4X / IP66 / IK10 protection. Provide your mounting location and legend needs, and we will specify the right configuration.

What input voltage ranges are offered for explosion proof LED lighting on this page?

Several families list wide voltage ranges suitable for facility standards. EXI, EXH, and EX-C list 100 to 277 V and 200 to 480 V options. FYS/FYD and FFS/FFD list dual input voltage ranges of 100 to 277 VAC and 200 to 480 VAC. Linear families IR3, IR4, and IR7 list 120 to 277 V AC in their ordering tables. EX-ES03 lists 100 to 277 VAC, and its combo variant also lists a 12 to 48 VDC option. Share your site voltage and we will match the right driver option.

Which models include emergency operation or backup capability?

Emergency capability appears in multiple parts of the lineup. IR3 lists optional emergency versions, and IR4 lists an emergency egress option in selected configurations. EX-ES03 is an exit and emergency family with a 3-hour backup duration listed, depending on variant. For longer-duration emergency operation on general luminaires, FYS/FYD and FFS/FFD list 90-minute emergency operation. If you tell us whether you need egress signage, task-light backup, or both, we can recommend the best-fit family and configuration.

Talk to an Explosion Proof Lighting Expert, Request a Quote

Tell us your hazardous rating (Class, Division, Groups), install location, and whether you need linear, flood/high bay, portable, or exit and emergency lighting. We will help you shortlist the right UL844-rated family and options for compliance and reliable operation.
