Explosion Proof LED Linear Lighting (Class 1 Div 1 & Div 2 Certified)

Maes Lighting’s Explosion Proof LED Linear Lighting series delivers UL844, ATEX, and IECEx-certified illumination for hazardous Class 1 Division 1, Class 1 Division 2, and Class 2 environments. Built for oil & gas, chemical plants, marine facilities, and dust-heavy industries, these fixtures combine rugged safety with high-efficiency performance keeping your operations compliant, productive, and safe.

When to Choose Explosion Proof Linear LED Fixtures for C1D1, C1D2, C2D1

Use linear fixtures when you need long, even light with low glare in hazardous areas, C1D1, C1D2, C2D1, where floods create hot spots. They hug ceilings and catwalks, replace fluorescent strips cleanly, and keep UL844, UL 1598A Marine, and NEMA 4X compliance.

  • Aisles, conveyors, tunnels, catwalks, 8 to 20 ft mounting

  • Tight clearances, slim surface or pendant profile

  • Wet, marine, corrosive, or dusty environments, IP66

  • One for one fluorescent retrofits, 2 ft and 4 ft footprints

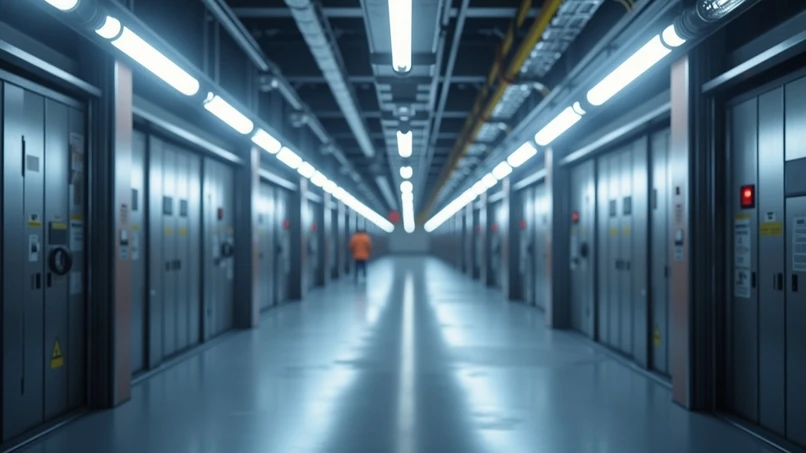

Explosion proof linear LED fixtures installed along an industrial corridor providing uniform, low-glare illumination for hazardous locations.

At‑a‑Glance Explosion Proof Linear LED Models Comparison

Series Hazard rating Wattage options Lumen output Input voltage Key notes
EXI C1D1, C1D2, C2D1, C2D2, Class III, IP66, IK10, UL844, UL1598A, ATEX, IECEx 20, 40, 60, 80, 120 W 5,600 to 16,800 lm 100 to 277 V, 200 to 480 V 2 ft or 4 ft, ceiling or wall mount, 3/4 in NPT
IR1 C1D2, C2D2 40 W ~4,400 lm 120 to 277 V Non metallic housing
IR3 C1D2, Marine Type 92 W, 2 × 46 W strips ~16,000 lm total 120 to 277 V Extruded aluminum, surface or suspended
IR4 C1D1, C2D1, C2D2 70 W ~13,000 lm 120 to 277 V 4 ft dual LED strips, surface or suspended
IR7 C1D2, C2D2 80 to 240 W, modular strips ~10,000 to 30,000 lm 120 to 277 V 2 to 6 LED strips, emergency option available
EXH C1D2, C2D1, C2D2, Class III, NEMA 4X, IP66, UL844, CSA, IECEx, ATEX 10, 20, 30, 40, 50, 60 W ~1,400 to ~8,400 lm 100 to 277 V, 200 to 480 V options Up to ~140 lm per W, pendant or surface mount

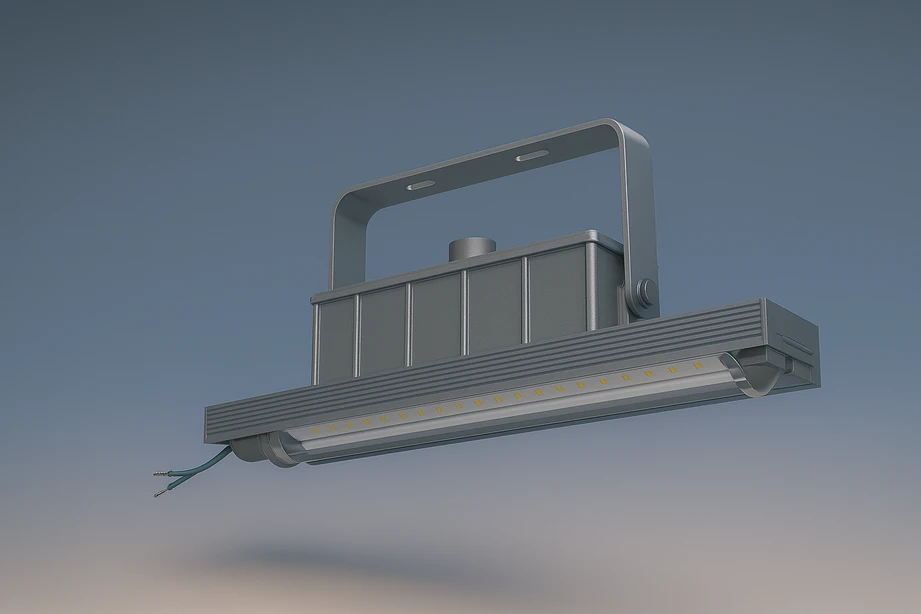

High-resolution 16:9 3D render of the EXI Explosion Proof Linear LED light fixture with powder-coated aluminum body, dual-bar LED design, protective covers, and heavy-duty mounting bracket, on a soft gray-blue gradient background.

EXI Explosion Proof Linear LED, Class 1 Div 1, Class 1 Div 2, UL844, ATEX, IECEx

The EXI is our flagship explosion proof linear platform for the most demanding hazardous environments. Certified for Class 1 Division 1 and 2 (gas/vapor) and Class 2 (dust) categories, the EXI pairs an IP66/IK10 enclosure with corrosion‑resistant construction and flexible optical distributions (40°, 60°, 90°, 120°). Available in 2‑ft and 4‑ft builds with wide‑range drivers (100–277V or 200–480V), EXI supports ceiling or wall mounting, simple service access, and high lumen packages suitable for new installs or retrofit programs.

Key Features

  • Class 1 Div 1 & Div 2 coverage; Class 2 capable

  • IP66, IK10 impact resistance; marine‑ready enclosure

  • Optics: 40° / 60° / 90° / 120° beam patterns

  • 2‑ft and 4‑ft versions; up to 120W configurations

  • 100–277V or 200–480V drivers for universal deployment

  • Consistent photometric performance and long L70 lifetime

Variations & Ordering (EXI Family)

Model Wattage Typical Lumens Voltage Beam Options Approvals
EX-20W I2YZDA 20 W 2,800 lm 100 to 277 V or 200 to 480 V D40, D60, D90, D120 C1D1, C1D2, C2D1, C2D2, C3, IP66, IK10
EX-40W I2YZDA 40 W 5,600 lm 100 to 277 V or 200 to 480 V D40, D60, D90, D120 C1D1, C1D2, C2D1, C2D2, C3, IP66, IK10
EX-60W I2YZDA 60 W 8,400 lm 100 to 277 V or 200 to 480 V D40, D60, D90, D120 C1D1, C1D2, C2D1, C2D2, C3, IP66, IK10
EX-80W I4YZDA 80 W 11,200 lm 100 to 277 V or 200 to 480 V D40, D60, D90, D120 C1D1, C1D2, C2D1, C2D2, C3, IP66, IK10
EX-120W I4YZDA 120 W 16,800 lm 100 to 277 V or 200 to 480 V D40, D60, D90, D120 C1D1, C1D2, C2D1, C2D2, C3, IP66, IK10

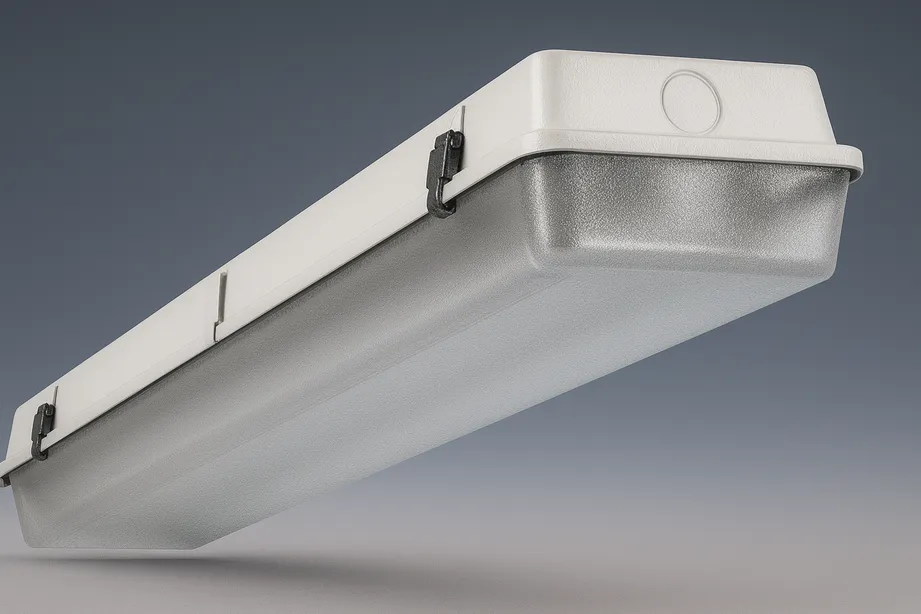

IR1 Series Class 1 Div 2 hazardous location fixture – fiberglass reinforced housing with acrylic lens, corrosion-resistant wet-location lighting, single fixture 16:9 3D render.

IR1 Non-Metallic Hazardous Location Linear LED, Class 1 Div 2, Class 2 Div 2, Wet Location

The IR1 Series is our most economical explosion proof linear solution, designed specifically for Class I Division 2 (C1D2) and Class II Division 2 (C2D2) hazardous locations. Built with a non-metallic, corrosion-resistant fiberglass housing and a high-impact acrylic lens, the IR1 delivers reliable performance in marine environments, wet locations, solvent storage, petrochemical plants, coal facilities, wastewater plants, and food processing operations. Lightweight yet rugged, it provides a cost-effective alternative to traditional metal enclosures while meeting UL 844 and UL 1598A Marine standards. Available in LED strip and fluorescent T5/T8 versions, the IR1 is a versatile fixture for both retrofit and new installations.

Key Features

  • Class I, Division 2; Class II, Division 2 (Groups A, B, C, D, F, G)

  • Non-metallic fiberglass reinforced housing with stainless steel latches

  • Impact-resistant acrylic diffuser for maximum durability

  • LED Strip arrays (40W–80W) or T5/T8 fluorescent options

  • Typical output: 4,400 – 10,000 lumens

  • UL 1598A Marine Rated (saltwater), UL 844 C1D2/C2D2 compliant

  • Surface or suspended mounting options

  • 5-year warranty

Variations & Ordering (IR1 Table)

Model Wattage Typical Lumens Listings
IR1-4-1-LED-UNV 40 W 4,400 lm UL 1598 A Marine, UL 844 C1D2 and C2D2
High-resolution 16:9 3D render of the IR3 Series hazardous location linear fixture with powder-coated aluminum housing, acrylic lens cover, internal fluorescent/LED lamps, and robust mounting hardware.

IR3 Hazardous Location Linear LED, Class 1 Division 2, UL 1598A Marine

The IR3 serves Class 1 Division 2 applications—areas where hazardous gases or vapors are handled but are normally confined—and carries marine suitability for offshore or wet environments. An aluminum body and clear protective lens safeguard a two‑strip LED array (≈80–92W) that reaches up to ~16,000 lumens. Swivel brackets support surface or suspended installation, making IR3 a strong choice for pump rooms, pier corridors, and refueling shelters.

Key Features

  • Class 1 Division 2 certified; UL 1598A Marine for wet/corrosive environments

  • 4‑ft format with high output two‑strip array

  • Swivel brackets for precise aim; surface or suspended mounting

  • Broad driver range for facility compatibility

  • Optional emergency versions available

Variations & Ordering (IR3 Table)

Model Wattage Typical Lumens Voltage LED Strips
IR3-4-2-LED-DR-UNV 92 W 16,000 lm 120 to 277 V AC 2×46 W, 8,000 lm per strip
High-resolution 3D render of the IR4 Series Class 1 Div 1 explosion proof linear fixture with cast aluminum housing, reinforced glass tubes, fluorescent/LED options, and swivel mounting brackets.

IR4 Explosion Proof Linear LED, Class 1 Division 1, UL844, UL 1598A Marine

The IR4 is a heavy‑duty Class 1 Division 1 linear for areas with continuous or frequent presence of ignitable gases or vapors. A reinforced enclosure with tempered lens protects dual LED arrays (≈70W total) to deliver ~13,000 lumens in a 4‑ft form factor. Accessories include a wire guard, safety cable, and shock‑mount options. The IR4 installs via surface or suspension mount and is a top candidate for C1D1 walkways, compressor rooms, and process skids.

Key Features

  • Certified for C1D1 (Groups C, D) and C2D1/C2D2 (E, F, G)

  • ~70W array with ~13,000 lm typical output

  • Rugged aluminum construction with serviceable components

  • Mounting: surface or suspended; accessory wire guard and safety cable

  • Emergency egress option (selected configurations)

Variations & Ordering (IR4 Table)

Model Wattage Typical Lumens Voltage Beam CCT Operating Temp
IR4-4-2-LED-UNV 70 W 13,000 lm 120 to 277 V AC 120° 4000 K -20 to +45 °C
High-resolution 16:9 3D render of the MAES IR7 Series explosion proof linear light fixture with powder-coated steel housing, tempered glass panel, fluorescent tubes inside, and zinc latch details on a gradient background.

IR7 Hazardous Location Linear LED, Class 1 Div 2, Class 2 Div 2, High Lumen Output

The IR7 is a configurable Class 1 Division 2 / Class 2 Division 2 platform built around modular strip counts. Select 2, 3, 4, or 6 strips (≈40W each) to scale output from ~8,800 to ~26,400 lumens. A durable steel housing with a front access door simplifies service. Primary mounting uses end brackets with chain; surface and adjustable options are also available. Choose IR7 for high‑output lines, loading bays, and dusty production zones.

Key Features

  • C1D2 and C2D2 compliance in a rugged steel housing

  • 2 / 3 / 4 / 6 LED strips (≈40W per strip) for scalable output

  • Front access door, hinged ballast/driver entry

  • Mounting: chain or surface (adjustable kits available)

  • Wide lumen range for retrofit or new install matching

Variations & Ordering (IR7 Family)

Model Wattage Typical Lumens Voltage LED Strips
IR7-4-2-LEDDR-UNV 80 W 8,800 lm 120 to 277 V AC 2×40 W
IR7-4-3-LEDDR-UNV 120 W 13,200 lm 120 to 277 V AC 3×40 W
IR7-4-4-LEDDR-UNV 160 W 17,600 lm 120 to 277 V AC 4×40 W
IR7-4-6-LEDDR-UNV 240 W 26,400 lm 120 to 277 V AC 6×40 W
High-resolution 3D render of the EXH Series Class 2 Div 1 Linear LED fixture with copper-free aluminum housing, polycarbonate lens, LED strip array, and adjustable brackets, displayed on a soft gradient background.

EXH Hazardous Location Linear LED, Class 2 Division 1 Dust, Class 1 Division 2

Where combustible dust is the primary hazard, the EXH provides a sealed NEMA 4X and IP66 linear solution. Typical 4‑ft versions are offered in 40W and 80W with ~5,480 and ~8,400 lumens respectively, achieving efficacies up to ~140 lm/W. It’s a match for grain handling, milling, packaging lines, and dusty process areas—while also carrying C1D2 ratings for facilities with occasional gas/vapor exposure.

Key Features

  • Class 2 Division 1 dust rating; also Class 1 Division 2

  • NEMA 4X / IP66 enclosure; corrosion‑resistant build

  • 40W & 80W typical options; up to ~140 lm/W

  • Surface or pendant mounting

  • Strong value for dust‑dominant facilities and retrofits

Variations & Ordering (EXH Family)

Model Wattage Typical Lumens Voltage Options CCT Beam
EX-10W H2YZDA 10 W 1,400 lm 100 to 277 V or 200 to 480 V 4000 to 5700 K 120°
EX-20W H2YZDA 20 W 2,800 lm 100 to 277 V or 200 to 480 V 4000 to 5700 K 120°
EX-30W H2YZDA 30 W 4,200 lm 100 to 277 V or 200 to 480 V 4000 to 5700 K 120°
EX-30W H4YZDA 30 W 4,200 lm 100 to 277 V or 200 to 480 V 4000 to 5700 K 120°
EX-40W H4YZDA 40 W 5,600 lm 100 to 277 V or 200 to 480 V 4000 to 5700 K 120°
EX-50W H4YZDA 50 W 7,000 lm 100 to 277 V or 200 to 480 V 4000 to 5700 K 120°
EX-60W H4YZDA 60 W 8,400 lm 100 to 277 V or 200 to 480 V 4000 to 5700 K 120°

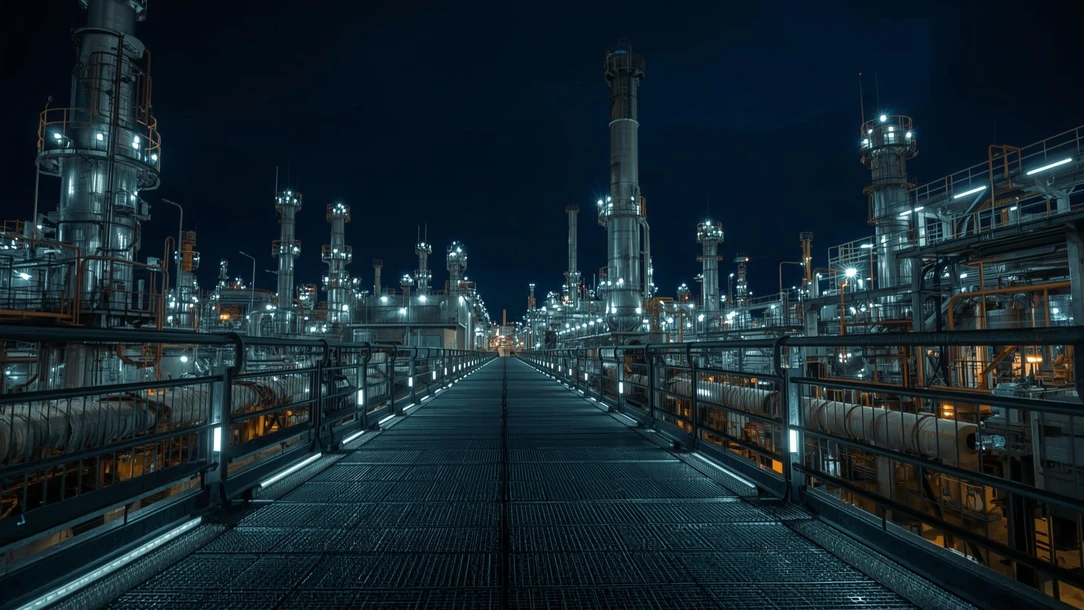

Oil and gas refinery at dusk with pipelines and smoke stacks, illuminated by explosion proof linear LED lighting for hazardous environments.

Explosion Proof Linear Lighting Applications, Oil and Gas, Chemical, Marine, Food, Water

Explosion proof linear LEDs are engineered for safety‑critical areas where vapors, gases, or dust can be present—onshore, offshore, or indoors. Use them wherever consistent, low‑glare light, reliable sealing, and verified certification are mandatory for operations and compliance.

  • Oil & Gas: catwalks, separators, compressor rooms, blending, loading racks

  • Chemical & Petrochemical: process corridors, tank farms, mixing areas

  • Marine & Offshore: platforms, pump rooms, stairwells, docks, shipyards

  • Paint/Coatings & Manufacturing: booths, prep bays, production lines

  • Food/Ag & Milling (Dust): grain handling, feed mills, packaging lines

  • Utilities & Water/Wastewater: galleries, tunnels, treatment buildings

Explosion proof linear LED fixture 3D render with technical annotations highlighting certifications, dust and water sealing, and rugged housing for hazardous locations.

Explosion Proof Linear Lighting Certifications, UL844, UL 1598A, ATEX, IECEx, NEMA 4X, IP66

Selection depends on your hazard class/division and environmental realities (corrosion, washdown, impact). Confirm the exact listing per model and configuration before specifying:

  • UL844 Hazardous Locations (Class 1/2 Div 1/2—verify Group A–G as required)

  • UL 1598A Marine (select models) for ship/offshore use and wet locations

  • ATEX / IECEx (EXI variants) for international explosive atmospheres

  • NEMA 4X / IP66–IP67 sealing against water, dust, and corrosion

  • Optical & Electrical: beam distributions, driver ranges, emergency options

Explosion proof linear LED fixture 3D render with technical annotations highlighting certifications, dust and water sealing, and rugged housing for hazardous locations.

Explosion Proof Linear LED FAQs

What’s the difference between Class 1 Division 1 and Class 1 Division 2?

Class 1 Division 1 areas have ignitable gases or vapors present during normal operation or frequently, so fixtures must be rated to contain ignition. Class 1 Division 2 areas handle flammable gases or vapors but they are normally confined and only present under abnormal conditions such as leaks or equipment failures. For Class 1 Division 1 applications, models like IR4 and EXI are recommended. For Class 1 Division 2, models such as IR3, IR7, and IR1 are suitable depending on the lumen and output requirements. The EXH model is primarily used for dust (Class 2 Division 1) but also covers Class 1 Division 2.

Do these support pendant, surface, or chain mounts?

Yes, all models including EXI, IR1, IR3, IR4, IR7, and EXH support common mounting methods. The IR1 fixture is most often surface-mounted in wet or marine locations. The IR7 model is well suited for chain or surface mounting, making it popular in process bays, while the IR3 includes swivel brackets that allow precise aiming. Always confirm clearance and conduit routing based on your site requirements.

Are marine or wet environments supported?

Yes, several models are designed to operate in marine and wet environments. The IR1 is specifically built for wet and outdoor marine applications with a non-metallic, corrosion-resistant fiberglass housing and gasketted sealing. The IR3 is marine-rated (UL 1598A) and includes additional corrosion protection. The EXI and EXH models also offer enclosures and finishes that are suitable for wet or corrosive conditions. For highly demanding environments, it is always recommended to confirm salt-fog and corrosion requirements with your MAES representative.

Can you provide photometrics and submittals?

Absolutely. Each model section includes a Download Spec Sheet link. Request IES files and project submittals via the Request a Quote form, we’ll deliver photometrics based on your mounting heights, spacing, and target foot‑candles.

What about warranty and lifespan?

These lines are engineered for long service life in harsh conditions. Standard warranties are typically 5 years with L70 lifetimes designed to minimize relamping downtime. Check each datasheet’s exact warranty or ratings.
