Vapor Tight LED Lighting, NSF, IP66 to IP69K for Wet Locations

Built for wet, washdown, and corrosive facilities, our vapor tight LED fixtures seal out water, chemicals, and dust for reliable light in food plants, car washes, wastewater rooms, and harsh industrial bays. IP66 to IP69K enclosures with NEMA 4X hardware and NSF listings support sanitation, daily hose down, and compliance. Choose linear or high bay formats with scalable lumen packages to match ceiling heights and tasks. Tight gaskets, impact rated lenses, and rugged mounts keep light levels stable while reducing maintenance and downtime across wet production lines and service areas.

When to Choose Vapor Tight LED Lighting for Wet Locations

Use vapor tight LED lighting when wet, washdown, or corrosive conditions demand sealed fixtures that keep performing. These luminaires pair NSF options with IP66 to IP69K and NEMA 4X construction for sanitation and durability.

  • High pressure spray, foam, steam, and hose down routines in food plants.

  • Constant moisture in car wash tunnels and bays, with chemicals present.

  • Wastewater headworks and clarifier decks, splash zones and chemical rooms.

  • Cold storage and cooler aisles where condensation and frost are common.

  • Low to mid heights, 8 to 16 ft, pick linear wide or diffused optics.

  • High bays, 18 to 35 ft, use aisle or narrow distributions to reach the floor.

  • Areas with salt, detergents, or acids where corrosion resistant hardware is critical.

  • Sites needing controls, 0 to 10 V dimming, occupancy and daylight sensors.

Vapor tight LED endcap with waterproof cable gland and gasket, NEMA 4X housing, IP66 to IP69K seal

At-a-Glance Vapor Tight LED Lighting Model Comparison

Use this quick compare to pick the right platform, then review the product blocks below for features and orderable variations.

Model Wattage Range Typical Lumens Input Voltage Beam, Optics Ratings Listings
CIT2 17 to 140 W 3,166 to 23,594 lm Not specified Diffuser, wide reflector, frosted lens, silver reflector IP65, IP66, IP67, NEMA 4X UL, NSF, RoHS
CIT4 17 to 210 W 3,166 to 35,391 lm Other voltages available Diffuser, silver reflector, polycarb or frosted lens IP65, IP66, IP67, NEMA 4X UL, NSF, RoHS
LS-VT 40 to 60 W, multi watt 5,400 to 8,100 lm 100 to 277 V 110° beam, opal prismatic lens 50,000 h, DLC Premium ETL, DLC
SL Series, Food Grade 20 to 60 W 2,600 to 7,800 lm 100 to 277 V 120° beam, linkable IP69K, IK10, 5 yr warranty UL Class P driver, Food grade

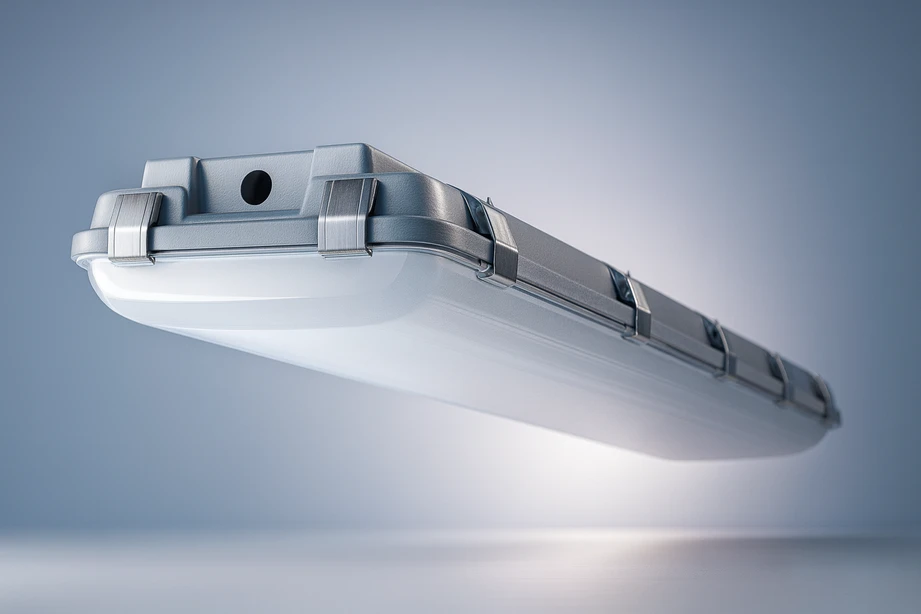

CIT2 vapor tight LED linear fixture, 2 ft 4 ft 8 ft, IP66 to IP67, NEMA 4X, NSF food safe lens and latches

CIT2 LED Vapor Tight, NSF, IP66 to IP67, NEMA 4X

CIT2 is a rugged vapor tight family for wet and corrosive locations, offered in 2 ft, 4 ft, and 8 ft housings to cover low and mid-bay tasks. Guardian Seal gasket and robust latches maintain a water tight seal, while NSF tested components support food and sanitation environments. Configure optics with a frosted diffuser for glare control or add the silver or wide reflector to throw more light across wide work zones. Standard 0 to 10 V dimming simplifies controls, and output scales from compact 17 W packages to high output 140 W builds with consistent lumen performance across lengths. Options include polycarbonate lenses, stainless steel latches, and occupancy sensors for energy savings during washdown and off-shift windows.

Key Features

  • IP65, IP66, IP67 ingress protection, NEMA 4X enclosure, NSF components tested.

  • Guardian Seal, high contact lens to gasket design for advanced sealing.

  • Sizes 2 ft, 4 ft, 8 ft with scalable outputs up to 23,594 lm.

  • Optics, frosted lens, polycarbonate lens, silver reflector, wide reflector.

  • 0 to 10 V dimming standard for controls integration.

  • Accessory options, stainless steel latches, internal or external occupancy sensors, bi-level.

Variations & Ordering (CIT2 Vapor Tight LED Family)

CIT2 Vapor Tight LED Variations and Ordering, 2 ft, 4 ft, 8 ft, Wattage, Lumens, Voltage, Optics, IP65 to IP67, NEMA 4X, NSF
Model Wattage Typical Lumens Voltage Optics Operating Temp Key Ratings
CIT2-LED-2FT-17 17 W 3,166 lm 0 to 10 V dimmable driver, per build Frosted, Polycarb, Silver reflector Not specified, verify per application IP65, IP66, IP67, NEMA 4X, NSF, UL
CIT2-LED-2FT-39 39 W 6,452 lm 0 to 10 V dimmable driver, per build Frosted, Polycarb, Silver reflector Not specified, verify per application IP65, IP66, IP67, NEMA 4X, NSF, UL
CIT2-LED-4FT-37 37 W 6,910 lm 0 to 10 V dimmable driver, per build Frosted, Wide reflector option Not specified, verify per application IP65, IP66, IP67, NEMA 4X, NSF, UL
CIT2-LED-4FT-70 70 W 11,797 lm 0 to 10 V dimmable driver, per build Frosted, Wide reflector option Not specified, verify per application IP65, IP66, IP67, NEMA 4X, NSF, UL
CIT2-LED-8FT-96 96 W 17,280 lm 0 to 10 V dimmable driver, per build Frosted, Wide reflector option Not specified, verify per application IP65, IP66, IP67, NEMA 4X, NSF, UL
CIT2-LED-8FT-140 140 W 23,594 lm 0 to 10 V dimmable driver, per build Frosted, Wide reflector option Not specified, verify per application IP65, IP66, IP67, NEMA 4X, NSF, UL
CIT4 vapor tight high bay LED, wide body housing for wet locations, NSF listed, NEMA 4X corrosion resistant

CIT4 Vapor Tight High Bay LED, 2 ft and 4 ft, Wet Location

CIT4 brings a wide body, wet location rated vapor tight housing for heavier duty and higher lumen applications. A one piece fiberglass or plastic blend shell with neoprene gasket and stainless pressure locks keeps the enclosure sealed, and the hinged steel gear tray speeds service without disturbing wiring. Output spans from 17 W to 210 W, covering low bay to high bay installs in car wash tunnels, parking decks, kitchens, and chemical rooms. Standard 0 to 10 V dimming aids controls, with options for polycarbonate or frosted lenses and a silver reflector when you need more punch. Units are UL certified for damp and wet locations, with construction and components tested and certified by NSF.

Key Features

  • Wide body vapor tight with hinged gear tray for easier access.

  • UL certified for damp and wet location, stainless locks and neoprene gasket.

  • Output range 17 W to 210 W, multiple CCTs.

  • Options, silver reflector, polycarbonate lens, frosted lens, stainless latches.

  • 0 to 10 V dimming standard, other voltages available on request.

  • Guardian Seal sealing system, IP65 to IP67, NEMA 4X, UL, NSF, RoHS.

Variations & Ordering (CIT4 Vapor Tight High Bay Family)

CIT4 Vapor Tight High Bay LED Variations and Ordering, 2 ft and 4 ft, Wet Location, Wattage, Lumens, Voltage, Optics, IP65 to IP67, NEMA 4X, NSF
Model Wattage Typical Lumens Voltage Optics Operating Temp Key Ratings
CIT4-LED-2FT-17 17 W 3,166 lm Other voltages available on request Frosted lens, Polycarb lens Verify ambient per application, heat tested materials UL Wet Location, IP65, IP66, IP67, NEMA 4X, NSF
CIT4-LED-4FT-37 37 W 6,910 lm Other voltages available on request Frosted lens, Polycarb lens, Silver reflector Verify ambient per application, heat tested materials UL Wet Location, IP65, IP66, IP67, NEMA 4X, NSF
CIT4-LED-4FT-96 96 W 17,280 lm Other voltages available on request Frosted lens, Polycarb lens, Silver reflector Verify ambient per application, heat tested materials UL Wet Location, IP65, IP66, IP67, NEMA 4X, NSF
CIT4-LED-4FT-144 144 W 25,920 lm Other voltages available on request Frosted lens, Polycarb lens, Silver reflector Verify ambient per application, heat tested materials UL Wet Location, IP65, IP66, IP67, NEMA 4X, NSF
CIT4-LED-4FT-210 210 W 35,391 lm Other voltages available on request Frosted lens, Polycarb lens, Silver reflector Verify ambient per application, heat tested materials UL Wet Location, IP65, IP66, IP67, NEMA 4X, NSF
LS-VT 4 ft vapor tight LED, multi watt 40 to 60 W, opal prismatic lens, DLC Premium, 100 to 277 V

LS-VT Vapor Tight LED, 4 ft, Multi Watt 40 to 60 W, DLC Premium

LS-VT is a compact 4 ft, multi-watt, multi-CCT vapor tight for fast retrofits and fresh installs. It runs on universal 100 to 277 V input and delivers a wide 110 degree distribution through an opal prismatic lens. Set output at 40, 50, or 60 W to hit 5,400 to 8,100 lumens, with high efficacy and DLC Premium qualification backed by a 5 year limited warranty. A quick mount back plate simplifies ceiling installation, and a dedicated emergency backup is available. Working temperature covers typical conditioned spaces and cooler rooms, and the fixture’s moisture and corrosion resistant construction suits parking, production, and utility areas where reliability and easy installs matter.

Key Features

  • 100 to 277 V input, multi-watt 40, 50, 60 W settings.

  • 3 CCT field selectable, 3000 K to 5000 K.

  • 110 degree beam, opal prismatic lens, bright Lumileds LEDs.

  • DLC Premium, ETL listing, 50,000 hour life.

  • Working temperature, -4°F to 104°F, with emergency battery option.

Variations & Ordering (RT-IL-150C Family)

LS-VT Vapor Tight LED Variations and Ordering, 4 ft, Multi Watt 40 to 60 W, Wattage, Lumens, Voltage, Optics, DLC Premium, 100 to 277 V
Model Wattage Typical Lumens Voltage Optics Operating Temp Key Ratings
LS-VT-4FT-40 40 W 5,400 lm 100 to 277 V 110° beam, opal prismatic lens -4°F to 104°F DLC Premium, ETL, 50,000 h
LS-VT-4FT-50 50 W 6,750 lm 100 to 277 V 110° beam, opal prismatic lens -4°F to 104°F DLC Premium, ETL, 50,000 h
LS-VT-4FT-60 60 W 8,100 lm 100 to 277 V 110° beam, opal prismatic lens -4°F to 104°F DLC Premium, ETL, 50,000 h
SL Series food grade vapor tight LED tube, IP69K NSF washdown, linkable 120 degree beam

Food Grade Vapor Tight LED for Washdown, SL Series, IP69K, NSF

For sanitary production zones that need IP69K, NSF, and IK10 protection, choose the SL Series Vapor Tight LED. It is linkable, delivers a wide 120° beam, runs on 100 to 277 V, and is purpose built for high pressure washdown in food and beverage facilities.

Food and beverage washdown bay with stainless equipment lit by vapor tight LED fixtures

Vapor Tight LED Lighting Applications for Wet, Washdown, and Corrosive Areas

Facilities that face moisture, spray, steam, and chemicals need sealed fixtures that keep output stable and maintenance low. Vapor tight LED luminaires deliver reliable light in tough environments while supporting sanitation and safety programs.

Key applications include:

  • Food and beverage processing lines, packaging zones, clean corridors

  • Car wash tunnels and bays with detergents and constant spray

  • Cold storage, coolers, and freezers where condensation is common

  • Water and wastewater plants, headworks, clarifiers, and pump rooms

  • Chemical mix rooms, CIP stations, and detergent storage areas

  • Agricultural and dairy washdown, poultry and meat rooms

  • Breweries, bottling, and canning facilities

  • Parking canopies, transit platforms, and underpasses

  • Marine and coastal facilities exposed to salty air

  • Battery charging rooms, utility corridors, and service bays

These use cases highlight where vapor tight LED fixtures with IP66 to IP69K, NEMA 4X, and NSF options provide durable, compliant lighting in demanding conditions.

IP69K, NEMA 4X, NSF certification badges for vapor tight LED lighting in wet and washdown areas

Vapor Tight Lighting Certifications and Compliance, IP66 to IP69K, NEMA 4X, NSF

Vapor tight fixtures must be verified to operate safely and consistently under water, spray, and corrosive exposure. The families on this page carry the core ratings and performance metrics buyers expect for wet and washdown environments.

Key ratings and compliance items include:

  • Ingress protection, IP65 to IP67 on linear and high bay models, IP69K where specified, seals out water, dust, and high pressure spray

  • NEMA 4X housings with corrosion resistant materials and stainless hardware for washdown and coastal areas

  • UL wet location listings and NSF components or certification, suitable for food production zones where required

  • Impact protection such as IK10 where available, durable lenses for busy bays and tunnels

  • DLC or DLC Premium qualification where offered, supports rebate eligibility and efficiency targets

  • Universal input, typically 100 to 277 V, high voltage options on select models, 0 to 10 V dimming ready for controls

  • Rated life and lumen maintenance, L70 or L90 figures documented per family

  • Ambient temperature ranges and gasket integrity validated for daily sanitation cycles

These ratings ensure sealed, code friendly operation, long service life, and predictable performance in wet, corrosive, and hygiene critical applications.

IP69K, NEMA 4X, NSF certification badges for vapor tight LED lighting in wet and washdown areas

Vapor Tight Lighting FAQs

What is the difference between IP66 and IP69K?

IP66 seals against dust and powerful water jets from any direction, good for wet locations and hose down. IP69K adds very high pressure, high temperature spray resistance, ideal for direct washdown in food plants and car wash tunnels.

What does NSF mean for lighting in food facilities?

NSF compliance confirms materials and construction meet sanitation requirements. Fixtures are smooth, non toxic, and easy to clean, and are suitable for use in inspected food zones as specified. Choose NSF where audits or HACCP plans apply.

How do I choose mounting heights and distributions?

Use linear vapor tights at 8 to 16 ft for wide, uniform coverage. Use vapor tight high bays at 18 to 35 ft with wide or aisle optics to push light to the floor. Typical spacing is around 1.0 to 1.2 times mounting height.

Do these fixtures support dimming and controls?

Yes, most models include 0 to 10 V dimming. Add occupancy or daylight sensors and network controls to cut energy, maintain light levels during sanitation, and meet code, using sealed accessories suited to wet areas.

Are vapor tight LEDs resistant to car wash chemicals?

Specify NEMA 4X housings, corrosion resistant hardware, and impact rated lenses. For foam and high alkalinity or acid detergents with close range spray, select IP69K models. Rinse residues and inspect gaskets on a regular schedule.

How do vapor tight LEDs perform in cold storage?

LEDs start instantly in low temperatures and sealed housings help control condensation. Verify the ambient rating on the model you select, many operate well in cooler and freezer applications with optional emergency packages available.

Talk to a Vapor Tight Lighting Expert

Need help matching ratings, optics, and mounting height to your environment, food production, car wash, wastewater, or cold storage, our lighting team will size the right vapor tight models, deliver fast quotes, and provide photometrics and controls recommendations that fit your budget and timeline.
