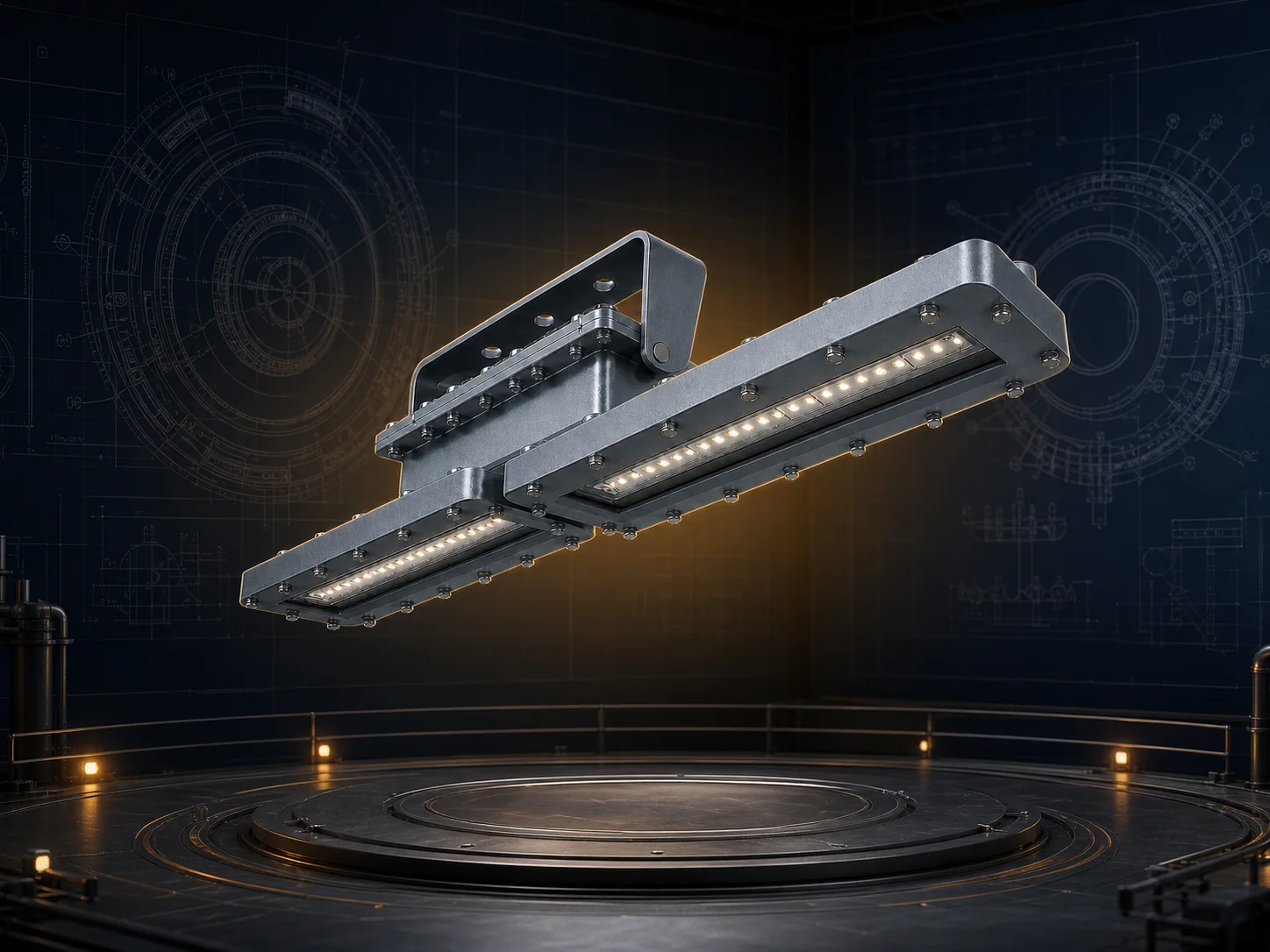

Class I Div 1 / Div 2
EXI
Explosion proof linear LED
View product pageProduct category · Hazardous locations
Explosion proof LED lighting for classified areas.
UL844 fixture families for Class I Division 1 and Division 2 environments, selected around the site’s official classification, gas or dust groups, temperature code and mounting conditions.
Class I · Class II · Class III options by family
Complete category lineup
The complete explosion proof lineup.
Thirteen explosion proof families at a glance. Open any family page for the full specification table, certifications and downloadable documentation.
Class I Div 2
IR1
Non-metallic hazardous linear LED
View product page
Class I Div 2
IR3
Marine hazardous-location linear LED
View product page
Class I Div 1

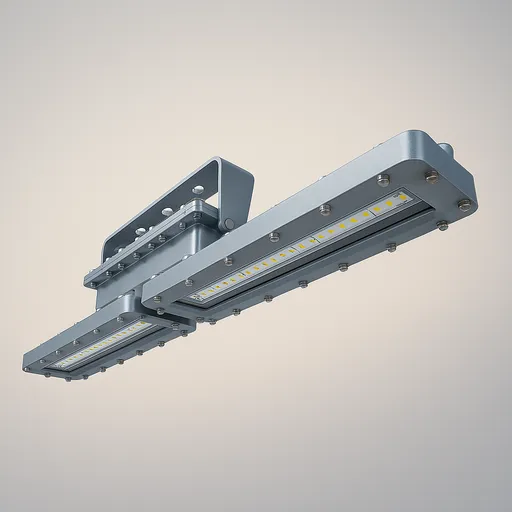

IR4
Explosion proof linear LED
View product page
Class I Div 2
IR7
High-output hazardous linear LED
View product page
Class II Div 1
EXH
Hazardous-location linear LED
View product page
Class I Div 2
EXA

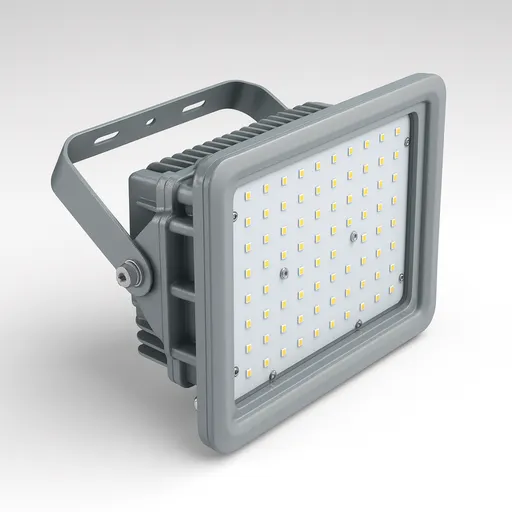

Hazardous-location flood light
View product page
Class I Div 1

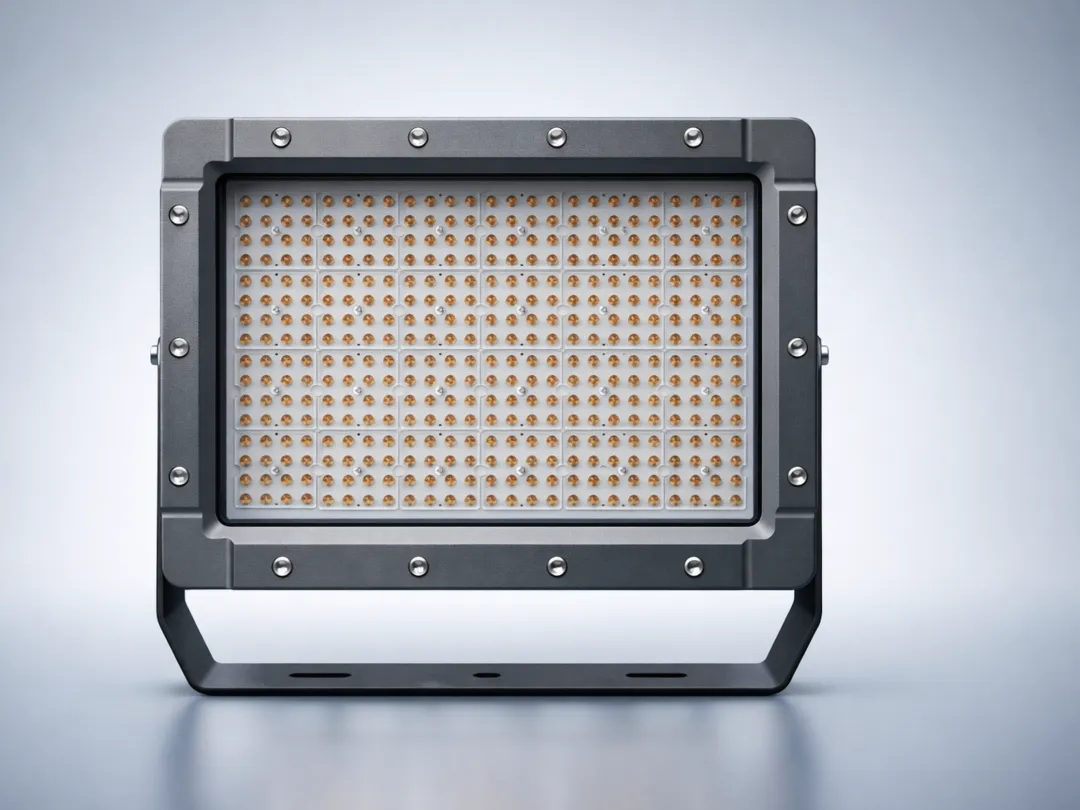

EX-C
Explosion proof LED flood light
View product page
Class I Div 1
EXD
Explosion proof flood and high bay
View product page
Class I Div 1

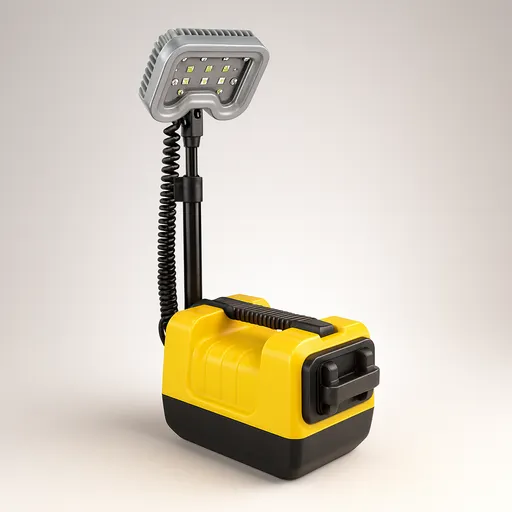

EX-MV01
Portable explosion proof work light
View product page
UL924
EX-ES03
Explosion proof exit and emergency light
View product page

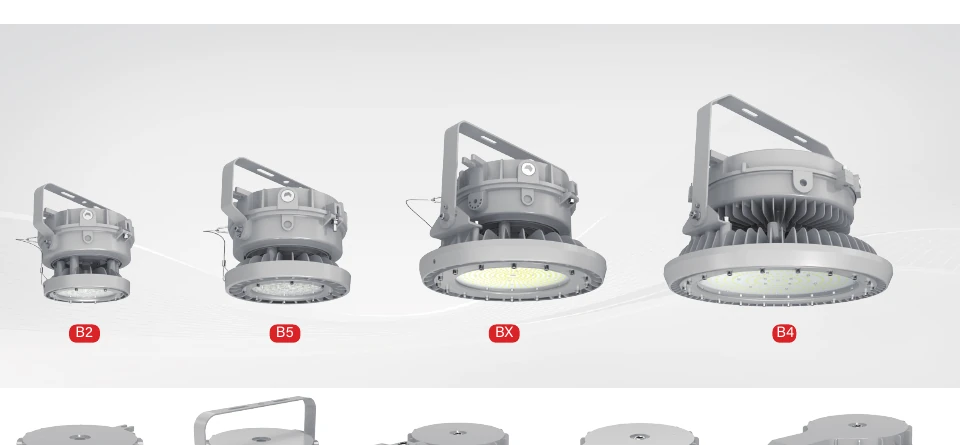

Class I Div 2

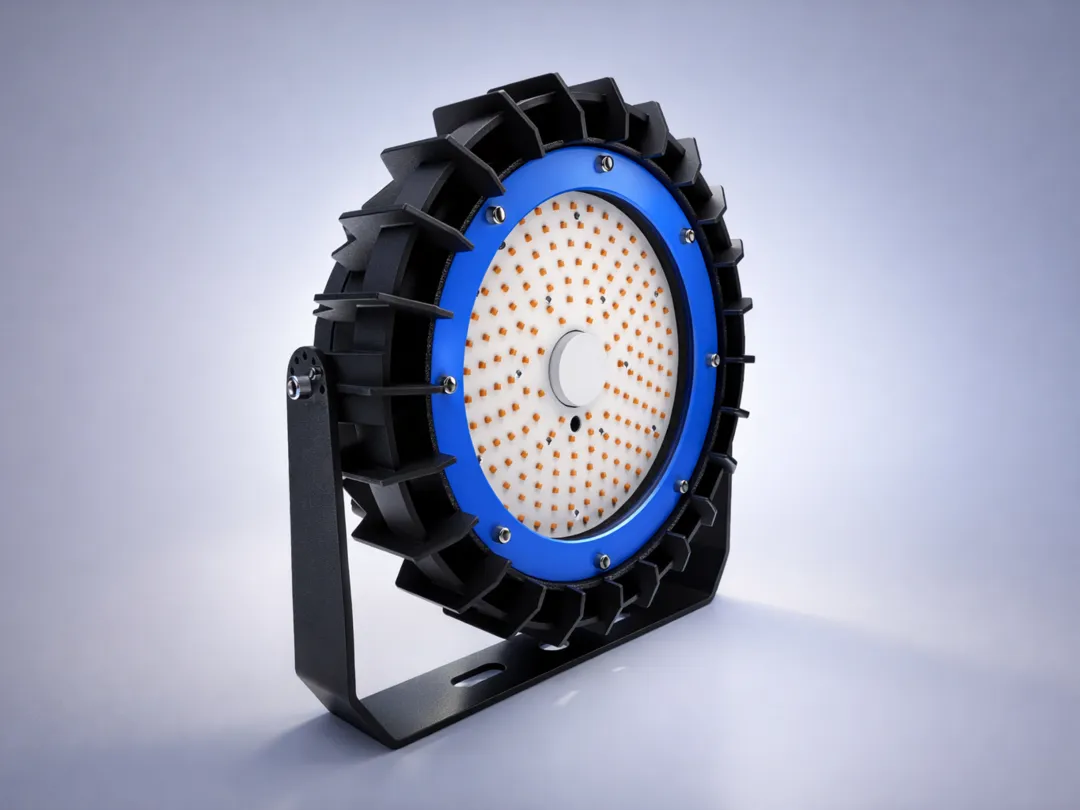

FYS / FYD
Explosion proof LED light
View product page
Class I Div 2
FFS / FFD
Explosion proof LED flood light
View product pageC1D1Continuous or frequent hazard
C1D2Hazard under abnormal conditions
UL844Hazardous-location standard
IP ratingsIngress protection by family
At a glance
Compare every explosion proof family on one screen.
Wattage and output figures come straight from each family’s specification table. Where the manufacturer publishes no figure, the cell says “Not published” rather than an estimate.
| Family | Form factor | Classification | Wattage | Typical lumens |
|---|---|---|---|---|
| EXI | Linear · 2 ft and 4 ft | Class I Div 1 / Div 2 | 20–120 W | 2,800–16,800 lm |
| IR1 | Linear · non-metallic | Class I Div 2 | 40 W | 4,400 lm |
| IR3 | Linear · marine | Class I Div 2 | 92 W | 16,000 lm |
| IR4 | Linear | Class I Div 1 | 70 W | 13,000 lm |
| IR7 | Linear · high output | Class I Div 2 | 80–240 W | 8,800–26,400 lm |
| EXH | Linear | Class II Div 1 | 10–60 W | 1,400–8,400 lm |
| EXA | Flood | Class I Div 2 | 20–200 W | Not published |
| EX-C | Flood | Class I Div 1 | 20–300 W | 14,000–42,000 lm (some rows N/A) |
| EXD | Flood and high bay | Class I Div 1 | 60–300 W | Not published |
| EX-MV01 | Portable work light | Class I Div 1 | 5–19.5 W rated | 1,600 lm on high |
| EX-ES03 | Exit and emergency | UL924 | 2 × 5 W heads · 3–5 W legend | Not published |
| FYS / FYD | Round high bay | Class I Div 2 | 20–200 W | 3,000–30,000 lm |
| FFS / FFD | Flood | Class I Div 2 | 20–200 W | 3,000–30,000 lm |
Classifications shown are family-level. Individual configurations within a family can carry different certifications — confirm the exact catalog number against its specification sheet.
Fixture families
Start with classification. Then choose form.
Products are organized by work area and form factor, so you compare only the families that fit your application.
Specification path
Classification is the first filter, not the last checkbox.
Confirm the site’s official area classification and applicable gas, vapor, dust or fiber groups. Then verify temperature code, ambient range, ingress, corrosion exposure, optics, mounting and controls against the selected fixture documentation.
A product family may offer several certifications and ratings. Always match the exact configuration to the project requirements.
Common questions
Frequently asked questions
These answers clarify the selection process without replacing project-specific documentation.
What should be confirmed before selecting explosion proof lighting?
Confirm the official class, division, gas or dust group, temperature code, ambient range, ingress, corrosion exposure, mounting and control requirements.
Does every configuration in a fixture family carry the same ratings?
Not necessarily. Certifications and ratings can vary by configuration, so the exact catalog selection must be checked against the project documentation.
