Light parking lots, roads, campuses, and yards with LED area and flood fixtures for 15 to 50 ft poles. Shoebox area lights offer Type II, Type III, Type IV, or Type V distributions for even coverage and lower glare. Floodlights provide narrow, medium, and wide beams for signs, facades, cranes, and perimeter security. Choose watt and CCT selectable models, 0 to 10 V dimming, surge protection, and 120 to 277 V or 277 to 480 V drivers. Wet location IP65 or IP66 housings with DLC listings support rebates.
Use LED area lights when you want wide, uniform coverage on lots, roads, and campuses. Choose LED flood lights when you need directional punch for facades, signs, cranes, and security zones. Match optics, mounting, and voltage to pole height and site conditions for the best results.
Poles 15 to 50 ft, taller poles call for higher wattage and tighter optics.
Shoebox area optics, Type II for drive lanes, Type III for aisles, Type IV for perimeters, Type V for open lots.
Flood beams, narrow, medium, or wide, for signs, facades, cranes, and targeted security.
Mounting, slipfitter tenon, pole arm, or yoke to retrofit poles and walls.
Voltage, 120 to 277 V standard, 277 to 480 V for industrial or utility feeds.
Site conditions, wet location IP65 to IP66 with surge protection. Add shields or backlight control to reduce glare and trespass.
Use this quick comparison to shortlist the right model family, then scan the product cards below for features and orderable options.
Family | Wattage options | Lumen range | Efficacy | Voltage | CCT | Optics or Beam |
---|---|---|---|---|---|---|
LS-ESBV Shoebox Area | 100, 150, 200, 240, 300 W | 13,000 to 39,000 lm | 130 lm/W | 120 to 277 V, 277 to 480 V options | 3000, 4000, 5000 K | Type III or V |
LS-FL Tunable Flood | 15 to 150 W, power and CCT switchable | 2,025 to 20,250 lm | 135 lm/W | 120 to 277 V, 120 to 347 V | 3000, 4000, 5000 K | 120° beam |
RT Series High-Lumen Flood | 100, 150, 200, 240, 300, 400, 500, 720, 1000, 1500 W | est. 16,000 to 240,000 lm from 160 lm/W × power | 160 lm/W | 90 to 305 V | 2800 to 7500 K | 10°, 25°, 40°, 60°, 90° |
AST-FL-13 Large Flood | 240, 300 W | 36,720 to 45,900 lm | 153 lm/W | 120 to 277 V | 5700 K | 130×100° beam |
EDGE Series High Temperature Flood, High Bay | 50 to 450 W integral, 120 to 600 W remote | 7,000 to 96,000 lm | 140 to 165 lm/W | 100 to 277 V, 200 to 480 V or 347 to 480 V optional | 2500 to 5500 K options | 15 lens options, 20° to 150°, rectangular |

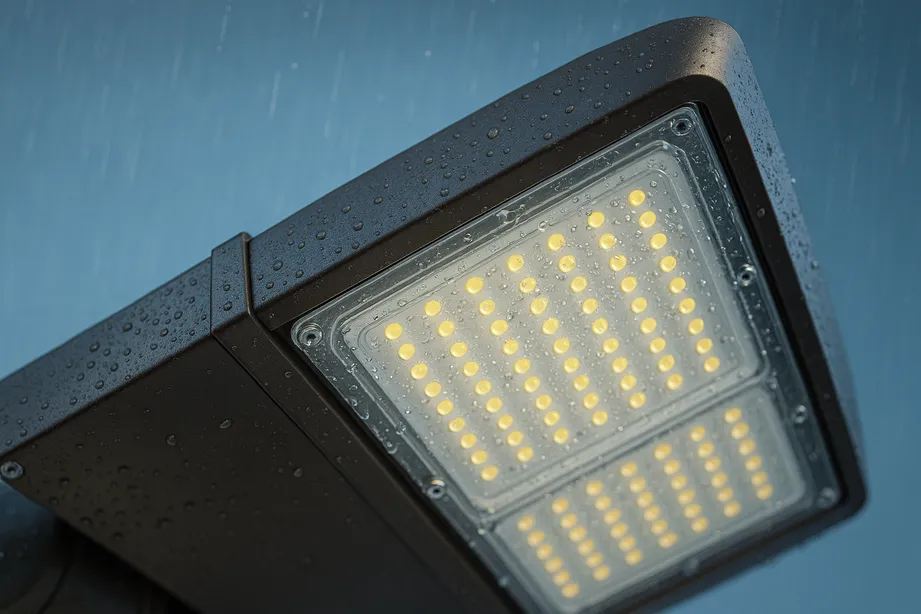

Built for parking lots, campuses, and commercial exteriors, LS-ESBV shoebox LED area lights deliver 13,000 to 39,000 lumens across 100 to 300 W with 130 lm per W performance. Choose Type III or Type V distributions for even coverage, pair with 0 to 10 V dimming and optional photocell or motion sensors, and select drivers in 120 to 277 V or 277 to 480 V for utility feeds. A die cast aluminum housing with bronze finish, surge protection, and UL, CUL, DLC listings supports reliable outdoor operation.
100, 150, 200, 240, 300 W models at 130 lm per W, up to 39,000 lm.
Type III or Type V optics for lots, aisles, and open areas.
120 to 277 V standard, 277 to 480 V available on select models.
0 to 10 V dimming, photocell and occupancy sensor options.
Built in 6 kV surge plus optional 10 kV external protection.
AM slipfitter, DM direct mount, or YM yoke mounts for poles and walls.
Bronze powder coated die cast housing for outdoor durability.
UL, CUL, DLC listed, 50,000 hour life.
Model | Wattage | Typical Lumens | Voltage | Distribution | CCT Options | BUG |
---|---|---|---|---|---|---|
LS-ESBV7E100WAT3A1 | 100 W | 13,000 lm | 120 to 277 V AC | Type III or Type V | 3000 K, 4000 K, 5000 K | B3-U0-G3 |
LS-ESBV7E150WAT3A1 | 150 W | 19,500 lm | 120 to 277 V AC | Type III or Type V | 3000 K, 4000 K, 5000 K | B3-U0-G3 |
LS-ESBV7E200WAT3A1 | 200 W | 26,000 lm | 120 to 277 V AC | Type III or Type V | 3000 K, 4000 K, 5000 K | B4-U0-G3 |
LS-ESBV7E240WAT3A1 | 240 W | 31,200 lm | 120 to 277 V AC | Type III or Type V | 3000 K, 4000 K, 5000 K | B4-U0-G4 |
LS-ESBV7E300WAT3A1 | 300 W | 39,000 lm | 120 to 277 V AC | Type III or Type V | 3000 K, 4000 K, 5000 K | B4-U0-G4 |

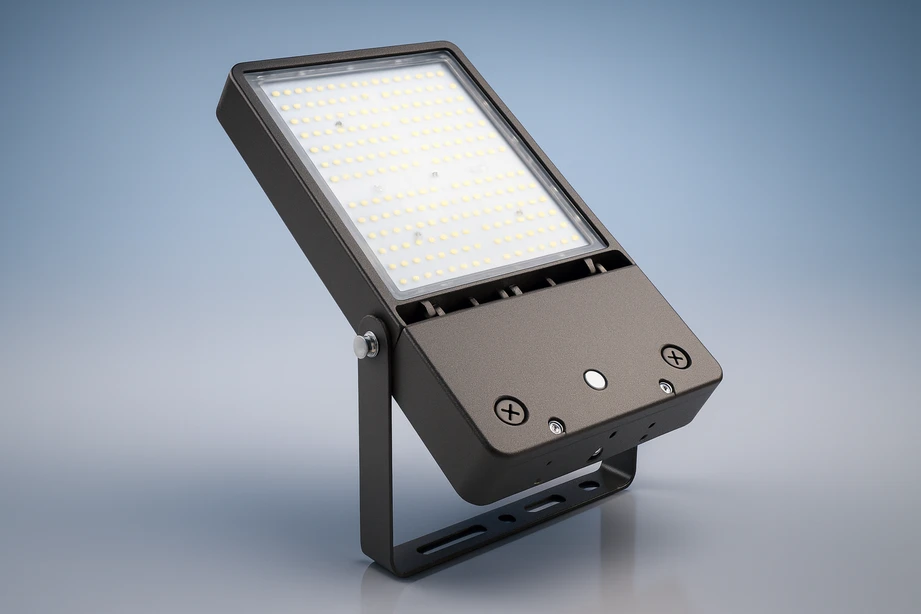

Dial in output and color on site with LS-FL tunable LED flood lights. Each fixture lets you switch wattage and CCT, so one SKU covers multiple tasks, from sign and facade lighting to general site security. A 120 degree beam delivers wide, even wash, while knuckle, yoke, trunnion, or slip fitter mounts simplify retrofits on poles and walls. Choose 120 to 277 V or 120 to 347 V drivers. With 135 lm per W performance and IP65 protection, LS-FL is a versatile, cost effective outdoor flood platform.
Power and CCT selectable, three settings per model, reduces inventory.
Wide 120 degree beam for uniform flood coverage.
120 to 277 V or 120 to 347 V input choices.
135 lm per W typical efficacy with high brightness LEDs.
Multiple mounts, knuckle, yoke, trunnion, slip fitter.
IP65 rated housing for outdoor use.
Tunable CCT 3000 K, 4000 K, 5000 K.
Model | Power Options, W | Lumens by Setting | Voltage | CCT Options | Beam | Operating Temp |
---|---|---|---|---|---|---|
LS3FL-35/20/15W | 15, 20, 35 | 2,025, 2,700, 4,725 lm | 120 to 277 V or 120 to 347 V AC | 3000 K, 4000 K, 5000 K | 120° | -20 to +60°C |
LS3FL-80/60/35W | 35, 60, 80 | 4,725, 8,100, 10,800 lm | 120 to 277 V or 120 to 347 V AC | 3000 K, 4000 K, 5000 K | 120° | -20 to +60°C |
LS3FL-150/120/100W | 100, 120, 150 | 13,500, 16,200, 20,250 lm | 120 to 277 V or 120 to 347 V AC | 3000 K, 4000 K, 5000 K | 120° | -20 to +60°C |
RT Series industrial LED floods deliver up to 160 lm per W with Bridgelux LEDs and Meanwell drivers for high output and long life. Tight 10 to 25 degree beams throw light long distances for cranes and towers, while 40 to 90 degree options cover yards and perimeters. The rugged IP66, IK10 build, 90 to 305 VAC drivers, and wide operating temperature range suit demanding outdoor or heavy industrial sites. Models span 100 to 1500 W to replace legacy HID from 250 W to 1500 W with fewer fixtures.
Up to 160 lm per W efficacy for energy savings.
Bridgelux LED arrays with Meanwell drivers.
Beam angles 10°, 25°, 40°, 60°, 90° to match throw.
IP66 and IK10 tested for harsh environments.
Wide input 90 to 305 VAC for commercial or industrial feeds.
Operating temp -40 to +60°C, 5 year warranty.
Model | Wattage | Typical Lumens* | Voltage | Beam Angles | Size mm (L×W×H) | Weight |
---|---|---|---|---|---|---|
RT-BLLF100W-N | 100 W | 16,000 lm | 90 to 305 V AC | 10°, 25°, 40°, 60°, 90° | 386×223×90 | 5.1 kg |
RT-BLLF150W-N | 150 W | 24,000 lm | 90 to 305 V AC | 10°, 25°, 40°, 60°, 90° | 386×283×90 | 6.8 kg |
RT-BLLF200W-N | 200 W | 32,000 lm | 90 to 305 V AC | 10°, 25°, 40°, 60°, 90° | 386×343×90 | 8.4 kg |
RT-BLLF240W-N | 240 W | 38,400 lm | 90 to 305 V AC | 10°, 25°, 40°, 60°, 90° | 386×343×90 | 8.9 kg |
RT-BLLF300W-N | 300 W | 48,000 lm | 90 to 305 V AC | 10°, 25°, 40°, 60°, 90° | 404×375×90 | 12 kg |
RT-BLLF400W-N | 400 W | 64,000 lm | 90 to 305 V AC | 10°, 25°, 40°, 60°, 90° | 475×404×90 | 15.3 kg |
RT-BLLF500W-N | 500 W | 80,000 lm | 90 to 305 V AC | 10°, 25°, 40°, 60°, 90° | 536×507×90 | 16.5 kg |
RT-BLLF720W-N | 720 W | 115,200 lm | 90 to 305 V AC | 10°, 25°, 40°, 60°, 90° | 736×508×90 | 26 kg |
RT-BLLF1000W-N | 1000 W | 160,000 lm | 90 to 305 V AC | 10°, 25°, 40°, 60°, 90° | 725×561×90 | 30 kg |
RT-BLLF1500W-N | 1500 W | 240,000 lm | 90 to 305 V AC | 10°, 25°, 40°, 60°, 90° | 975×643×90 | 45 kg |

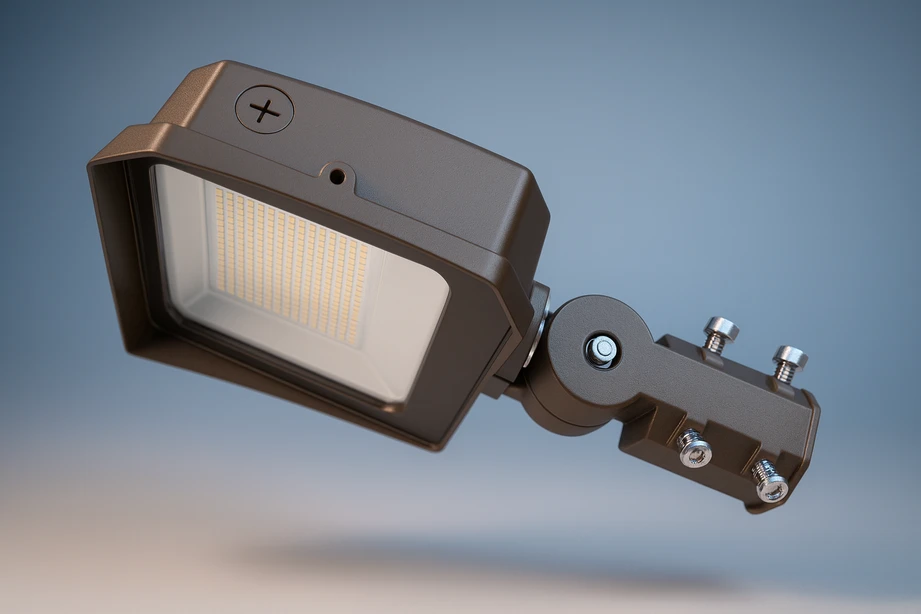

AST-FL-13 is a wide coverage flood and area fixture that replaces 500 to 1000 W HID while cutting energy and maintenance. The 130×100 degree optic spreads light across parking lots, auto dealerships, and building facades with fewer poles. A die cast aluminum housing, IP65 sealing, and an angle adjustable U bracket simplify installs on walls or square poles. Models in 240 W and 300 W deliver up to 45,900 lumens at 153 lm per W, with UL, CUL, and DLC listings. Input is 120 to 277 V for broad compatibility.
High efficiency, 153 lm per W, replaces 500 to 1000 W MH or HPS.
Broad 130×100 degree distribution for large open lots.
IP65 enclosure for wet locations and dusty sites.
Angle adjustable U-bracket for wall or square pole mounting.
120 to 277 V input, 5 year limited warranty.
UL, CUL, DLC listed for rebates and compliance.
Model | Wattage | Typical Lumens | Voltage | Beam | CCT | Operating Temp |
---|---|---|---|---|---|---|
AST-FL13-240S2BT7SA1 | 240 W | 36,720 lm | 120 to 277 V AC | 130×100° | 5700 K | -30 to +50°C |
AST-FL13-300S2BT7SA1 | 300 W | 45,900 lm | 120 to 277 V AC | 130×100° | 5700 K | -30 to +50°C |

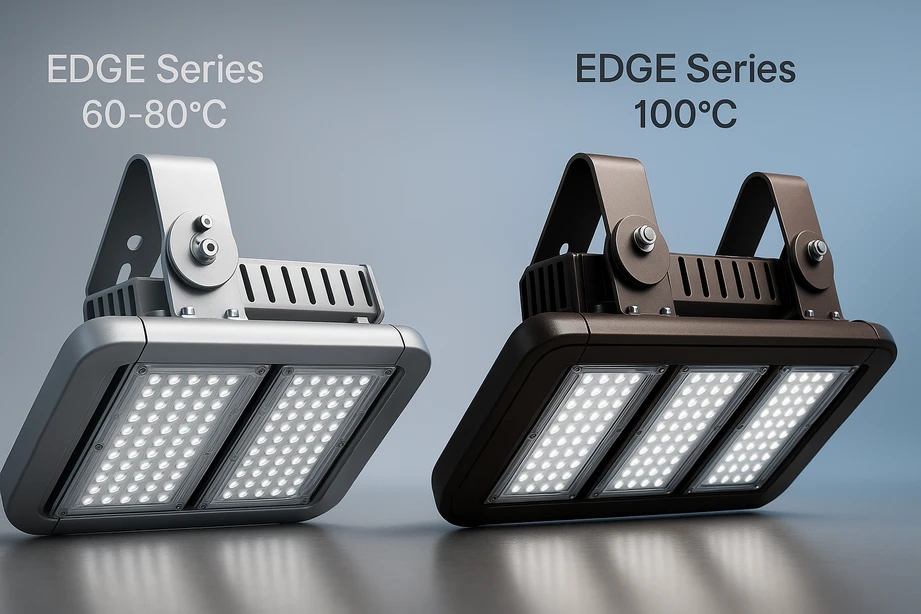

For extreme heat zones in mills, foundries, and outdoor bays, choose EDGE Series high temperature LED flood and high bay. Integrated driver models operate to 60 to 80 C, remote driver models handle up to 100 C. IP66 and IK10 protection, 15 lens options, and 100 to 277 V or 200 to 480 V drivers.

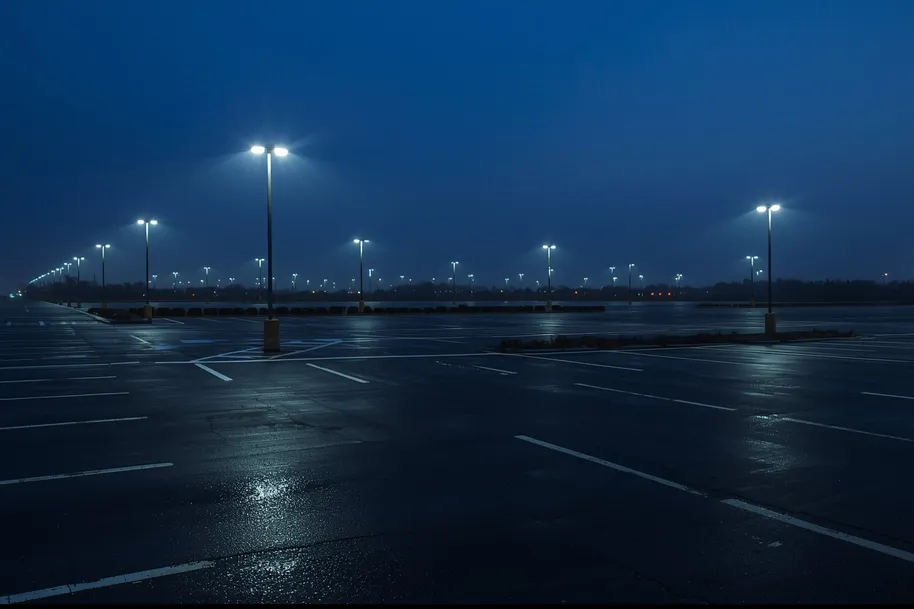

LED flood and area lights improve safety, visibility, and curb appeal across large outdoor sites while cutting energy and maintenance costs. Use Type II, Type III, Type IV, or Type V distributions for lots and drives, and narrow, medium, or wide flood beams for targeted tasks and building wash.
Parking lots, drive lanes, and pedestrian walkways
Building facades, wall wash, and architectural accents
Perimeter security around fences and yards

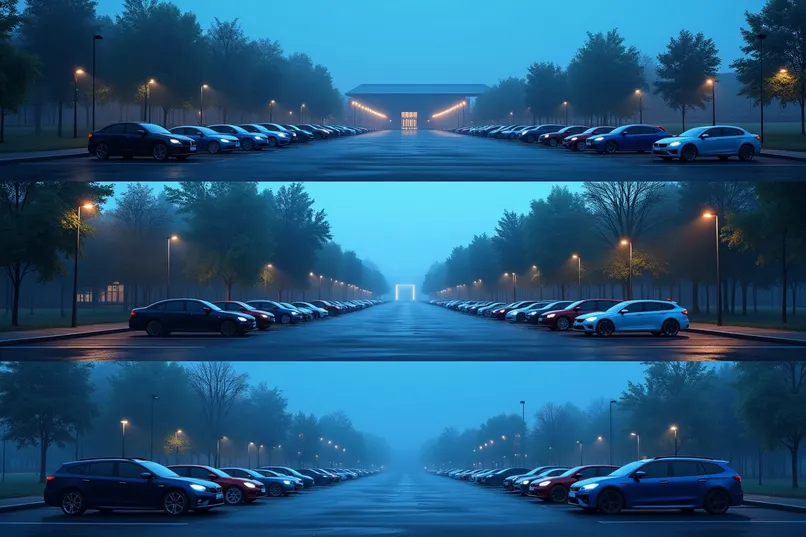

Auto dealership display lots and service areas
Warehouses, logistics yards, and loading docks
Ports, rail yards, freight and container zones
Billboards, monument signs, and canopy lighting
School and corporate campuses, parks, and plazas
Tip, match optics to the task, Type II or III for lanes, Type IV for edges, Type V for open lots, and size wattage to 15 to 50 ft poles. Add photocells, motion sensors, and 277 to 480 V drivers where needed.
Outdoor flood and area fixtures must meet safety codes, utility rebate rules, and durability standards. The families on this page carry the core ratings buyers expect for parking lots, campuses, and perimeter security.
Ingress protection, IP65 to IP66 for wet locations, sealed against rain and dust
UL and CUL wet location listings, DLC or DLC Premium qualification for rebates
Electrical compliance, 120 to 277 V standard input with 277 to 480 V options, 0 to 10 V dimming ready
Optical control, Type II to Type V distributions and defined flood beams to manage BUG glare and trespass
Surge protection, integral 6 kV with 10 kV options depending on model
Verified data, LM-79 photometry, LM-80 component life, IES files available for submittals
These credentials support code friendly installs, long service life, and predictable performance in demanding outdoor environments.
Type II fits drive lanes and narrow rows, Type III covers aisles and general parking, Type IV pushes light to perimeters and front rows, Type V spreads evenly in open lots and plazas.
As a quick start, 15 to 25 ft poles use about 100 to 150 W, 25 to 35 ft often use 200 to 300 W, and 35 to 50 ft may use 300 to 450 W. Confirm with photometry for target foot candles.
Yes, most models include 0 to 10 V dimming and accept twist lock or button photocells. Motion sensors can dim to preset levels, saving energy during low traffic hours.
Most commercial sites run 120 to 277 V. Large industrial yards and utility feeds use 277 to 480 V. Match the driver to building service to avoid external transformers.
Pick the correct distribution, avoid over aiming, and use house side shields or backlight control kits. Review BUG ratings and keep pole heights and tilt angles within spec.
Slip fitter tenon mounts fit round poles, pole arms or direct mounts fit square poles, and yoke or trunnion mounts suit walls and signs. Many mounts include tilt adjustment for precise aiming.
Yes, housings rated IP65 or IP66 seal out rain and dust, surge protection handles electrical spikes, and tested components maintain output in cold or hot outdoor conditions.
Need help matching optics, wattage, and pole height for parking lots, facades, and perimeters? Our team will size the right shoebox area lights and floodlights, run quick photometrics, and recommend controls, 120 to 277 V or 277 to 480 V drivers, and mounting hardware that fit your site and budget. Get fast pricing, lead times, and spec sheets from a lighting specialist.
