Food Processing LED Lighting, NSF and IP69K for Washdown

NSF listed, IP69K rated food grade LEDs for sanitary plants, cold rooms, and daily high pressure washdowns. Choose high bays for tall production areas and freezers, choose vapor tights for wet rooms and line side tasks. Built for reliability, easy cleaning, and audit friendly compliance that keeps operations safe and efficient.

When to Choose Food Processing LED Lighting, NSF and IP69K

Food and beverage facilities face daily sanitation, chemical exposure, and temperature extremes. Standard industrial fixtures struggle here, water and detergents find their way into housings, lenses craze, and drivers fail. Food grade LEDs solve this with sealed enclosures, smooth surfaces that clean fast, and verified ratings for washdown and cold storage. In wet lines and cleanup cycles, IP69K protection resists close range, high temperature spray, while NSF listing supports sanitary design requirements. In frozen storage and blast chillers, cold duty models maintain performance down to minus 40°C, avoiding slow starts and lumen drop. Use linear food grade high bays in production halls for uniform coverage and accessories like guards or sensors, then deploy vapor tight tubes in wash aisles and prep rooms where spray and steam are constant. Together, these families reduce maintenance risk, improve visibility, and help you pass inspections with confidence.

Food plant sanitation washdown with LED vapor tight lights designed for IP69K compliance

At-a-Glance Food Processing LED Lighting Model Comparison

Use this quick compare to pick the right platform, then review the product blocks below for features and orderable variations.

Model Type Form Factor Wattage Range Typical Lumens Input Voltage Operating Temp Key Ratings
XSY-HBDU NSF Food Grade Highbay Food grade high bay Round high bay 80 to 200 W 12,000 to 38,000 lm 120 to 277 V, 120 to 347 V, 277 to 480 V -40°C to +45°C NSF, IP66, IP69K
FY-HB Series LED NSF Linear Highbay Food grade linear high bay Linear 80 to 300 W ~12,000 to ~45,000 lm 120 to 277 V, 200 to 480 V -30°C to +45°C NSF, IP69K
SL-P69X Series Vapor Tight LED, IP69 Food grade vapor tight Cylindrical tube 20 to 60 W 2,600 to 7,800 lm 100 to 277 V -20°C to +40°C NSF, IP69K, IK10
CIT2 LED Vapor Tight Food Grade Industrial vapor tight Linear, 2 ft, 4 ft, 8 ft 17 to 140 W ~3,166 to ~23,594 lm Varies by driver, 0 to 10 V dimming standard Not specified in sheet IP65, IP66, IP67, NEMA 4X, NSF, UL, RoHS, Guardian Seal

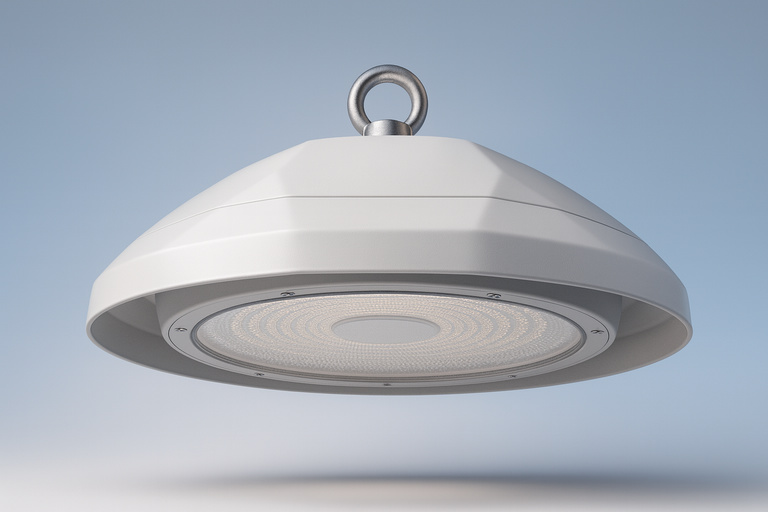

X2Y HBD cold storage and freezer LED high bay, NSF, IP69K, minus 40°C rated, food processing warehouse lighting, washdown ready.

XSY-HBDU Cold Storage & Freezer LED High Bay – NSF IP69, -40°C, Food Grade

Purpose built for sub-zero storage, meat and beverage cold chain, and cleanup crews that hose down nightly. This round food grade high bay pairs high efficacy packages with sealed construction and optional microwave sensing. Multiple input voltages make retrofits simple, while smooth housings and a 115° optic support fast sanitation and wide, uniform coverage. Rated for minus 40°C operation, it keeps output stable in freezers and blast chillers where standard LEDs falter.

Key Features

  • IP66 and IP69K sealed enclosure, washdown ready, smooth surfaces for cleaning.

  • High efficacy choices, 150 lm/W or 190 lm/W packages.

  • Operates from –40°C to +45°C for freezers and cold rooms.

  • Input voltages, 120–277 V, 120–347 V, 277–480 V.

  • 115° optic for wide coverage, optional microwave sensor.

  • NSF food grade positioning per product notes.

Variations & Ordering (XSY-HBDU Family)

Model Wattage Lumens 150/190 lm per W Voltage CCT options Beam Operating temp Ratings
XSY-HBDU80W-XXKAA-MZPT 80 W 12,000, 15,200 lm 120 to 277 V AC, 120 to 347 V AC, 277 to 480 V AC 3000 K, 4000 K, 5000 K, 5700 K 115° -40 to +45°C IP66, IP69K
XSY-HBDU100W-XXKAA-MZPT 100 W 15,000, 19,000 lm 120 to 277 V AC, 120 to 347 V AC, 277 to 480 V AC 3000 K, 4000 K, 5000 K, 5700 K 115° -40 to +45°C IP66, IP69K
XSY-HBDU125W-XXKAA-MZPT 125 W 18,750, 23,750 lm 120 to 277 V AC, 120 to 347 V AC, 277 to 480 V AC 3000 K, 4000 K, 5000 K, 5700 K 115° -40 to +45°C IP66, IP69K
XSY-HBDU150W-XXKAA-MZPT 150 W 22,500, 28,500 lm 120 to 277 V AC, 120 to 347 V AC, 277 to 480 V AC 3000 K, 4000 K, 5000 K, 5700 K 115° -40 to +45°C IP66, IP69K
XSY-HBDU185W-XXKAA-MZPT 185 W 27,750, 35,150 lm 120 to 277 V AC, 120 to 347 V AC, 277 to 480 V AC 3000 K, 4000 K, 5000 K, 5700 K 115° -40 to +45°C IP66, IP69K
XSY-HBDU200W-XXKAA-MZPT 200 W 30,000, 38,000 lm 120 to 277 V AC, 120 to 347 V AC, 277 to 480 V AC 3000 K, 4000 K, 5000 K, 5700 K 115° -40 to +45°C IP66, IP69K
FY HB Series food grade LED high bay, IP69K sanitary design for food processing plants, bright uniform illumination for production areas.

FY-HB Series, Food Grade High Bay LED

A smooth bodied linear high bay for sanitary plants that need powerful lumen packages with easy cleanability. FY-HB covers food, splash, and non-food zones, with multiple optics to control glare and throw. High efficacy to 150 lm per watt keeps energy use low, high CRI options support inspection, and universal voltage drivers simplify deployment. Choose chain or surface mounting to fit production lines and mezzanines.

Key Features

  • NSF food zone coverage across non contact, splash, and non food areas.

  • IP69K with 1500 PSI hose resistance for daily washdowns.

  • 80 W to 300 W models, up to 45,000 lm at 150 lm per watt.

  • Optic set from 15°, 25°, 40°, 60°, 90°, 120°, plus elliptical options.

  • Input voltage 120–277 V or 200–480 V, PF > 0.95.

  • Operating range –30°C to +45°C, L70 > 50,000 hours.

Variations & Ordering (FY-HB Family)

Model Wattage Typical lumens Voltage Beam options CCT Ratings
FY-HB-450C-80W 80 W 12,000 lm 120 to 277 V AC, 200 to 480 V AC 15°, 25°, 40°, 60°, 90°, 120°, 30×70°, 49×21°, 136×78° 3000 to 6500 K IP69K, NSF
FY-HB-600C-120W 120 W 18,000 lm 120 to 277 V AC, 200 to 480 V AC 15°, 25°, 40°, 60°, 90°, 120°, 30×70°, 49×21°, 136×78° 3000 to 6500 K IP69K, NSF
FY-HB-600C-160W 160 W 24,000 lm 120 to 277 V AC, 200 to 480 V AC 15°, 25°, 40°, 60°, 90°, 120°, 30×70°, 49×21°, 136×78° 3000 to 6500 K IP69K, NSF
FY-HB-600C-200W 200 W 30,000 lm 120 to 277 V AC, 200 to 480 V AC 15°, 25°, 40°, 60°, 90°, 120°, 30×70°, 49×21°, 136×78° 3000 to 6500 K IP69K, NSF
FY-HB-900C-300W 300 W 45,000 lm 120 to 277 V AC, 200 to 480 V AC 15°, 25°, 40°, 60°, 90°, 120°, 30×70°, 49×21°, 136×78° 3000 to 6500 K IP69K, NSF

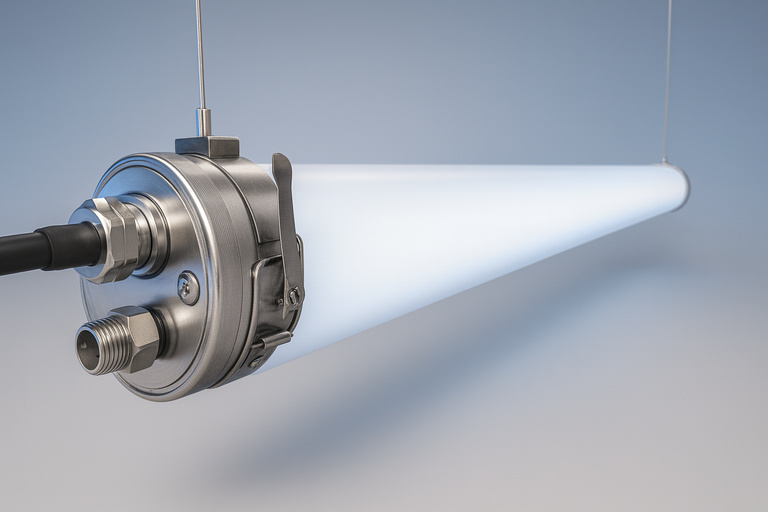

SL Series food grade vapor tight LED fixture, IP69K sealed for washdown, linear lighting for wet processing rooms and corridors.

SL Series, Food Grade Vapor Tight LED

Sealed cylindrical vapor tight built for daily washdowns, steam, and corrosive cleaning. PC or PMMA lens options balance UV resistance and chemical resistance, with stainless caps and clips for durability. Linkable connectors simplify long runs over wash aisles, and 0–10 V or DALI dimming options are available. Emergency versions with 3 hour battery are offered for egress and safety. IP69K and IK10 protection complete the package.

Key Features

  • IP69K waterproof and IK10 impact protection.

  • PC or PMMA diffuser options, with UV or corrosion resistance focus.

  • Linkable configurations with 3 or 5 pin connectors, dimming options including DALI.

  • High efficacy versions to 150 lm per watt.

  • 2 ft, 4 ft, and 5 ft lengths, 20–60 W, 2,600–7,800 lm.

  • NSF positioning per product notes.

Variations & Ordering (SL-P69X Family)

Model Length Wattage Typical lumens Voltage CCT options Beam Ratings
SL-P69X2-20-X 2 ft 20 W 2,600 lm 100 to 277 V AC 3000 K, 4000 K, 5000 K, 6000 K 120° IP69K, IK10, NSF
SL-P69X2-30-X 2 ft 30 W 3,900 lm 100 to 277 V AC 3000 K, 4000 K, 5000 K, 6000 K 120° IP69K, IK10, NSF
SL-P69X4-36-X 4 ft 36 W 4,680 lm 100 to 277 V AC 3000 K, 4000 K, 5000 K, 6000 K 120° IP69K, IK10, NSF
SL-P69X4-50-X 4 ft 50 W 6,500 lm 100 to 277 V AC 3000 K, 4000 K, 5000 K, 6000 K 120° IP69K, IK10, NSF
SL-P69X5-45-X 5 ft 45 W 5,850 lm 100 to 277 V AC 3000 K, 4000 K, 5000 K, 6000 K 120° IP69K, IK10, NSF
SL-P69X5-50-X 5 ft 50 W 6,500 lm 100 to 277 V AC 3000 K, 4000 K, 5000 K, 6000 K 120° IP69K, IK10, NSF
SL-P69X5-60-X 5 ft 60 W 7,800 lm 100 to 277 V AC 3000 K, 4000 K, 5000 K, 6000 K 120° IP69K, IK10, NSF
CIT2 vapor tight LED, IP66, NEMA 4X, NSF food grade, linear fixture for washdown zones in food processing and cold storage.

CIT2 NSF Food Grade Vapor Tight LED, IP66 NEMA 4X

A sanitary vapor-tight linear built for washdown zones in food and beverage plants, CIT2 combines IP66 sealing, NEMA 4X enclosure, and NSF tested components, with multiple lengths and lumen packages for flexible coverage.

Food technology lab with plants and packaged goods inspected under LED lighting

Food Processing Lighting Applications, washdown areas and cold storage

Food processing environments demand fixtures that survive daily sanitation, cold storage, and harsh washdown conditions.

Key applications include:

  • Meat, poultry, and seafood processing lines

  • Dairy production and beverage facilities

  • Bakeries, confectionery, and prepared food areas

  • Produce washing, canning, and packaging zones

  • Cold storage warehouses, freezers, and blast chillers

  • Wet rooms, CIP zones, and sanitation corridors

  • Ancillary spaces such as loading docks and egress

These applications highlight where NSF and IP69K food grade LED fixtures ensure safety, compliance, and consistent illumination.

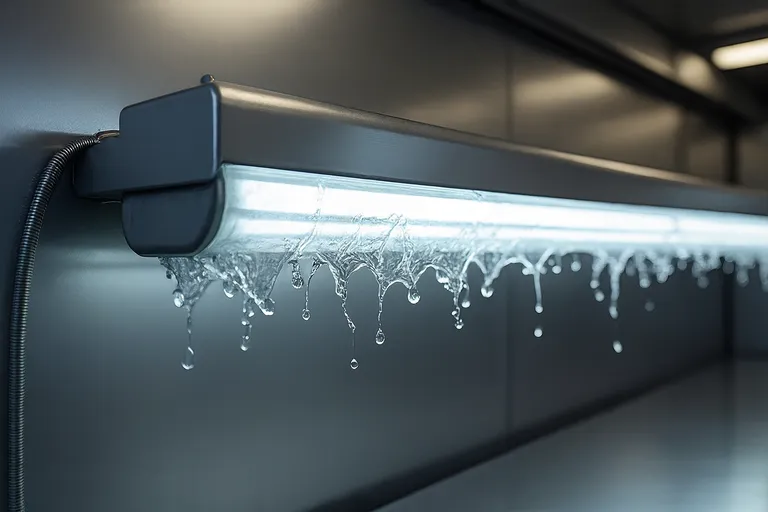

NSF-certified vapor tight LED lighting fixture with water droplets showing IP69K washdown compliance

Food Processing Lighting Certifications and Compliance, NSF, IP69K, NEMA 4X

Food grade fixtures must be tested and certified to perform reliably in sanitary facilities.

Key ratings and materials include:

  • NSF certification for sanitary compliance

  • IP69K washdown protection against high-pressure spray

  • Operating temperature ratings down to −40°C for freezers

  • NEMA 4X corrosion resistance for chemical exposure

  • IK impact protection for rugged industrial use

  • Shatter-resistant lenses for contamination control

  • Smooth, easy-to-clean surfaces for faster sanitation

Together these certifications and materials confirm that food processing LED lighting meets audit requirements while reducing maintenance and downtime.

NSF-certified vapor tight LED lighting fixture with water droplets showing IP69K washdown compliance

Food Processing LED Lighting FAQs

What does IP69K mean for food facilities?

It is the highest ingress protection, designed to resist close range, high pressure, high temperature spray used during sanitation, ideal for daily washdown in food environments.

Are these fixtures NSF suitable?

Yes, the food grade families above are positioned for NSF use, covering non food, splash, and food non contact zones where applicable.

Can the high bay operate in freezers?

Yes, the cold storage high bay maintains performance at –40°C, designed for freezers and blast chillers in cold chain operations.

What is the difference between linear food grade high bays and vapor tights?

Linear food grade high bays are for open production areas and higher mounting heights, vapor tights are sealed tubes for wet rooms, wash aisles, and line side tasks.

Do you provide different optics and voltages?

Yes, FY-HB offers narrow to wide and elliptical optics plus 120–277 V or 200–480 V drivers, the round high bay covers multiple voltages, vapor tights offer 0–10 V or DALI dimming.

Is an emergency version available for vapor tights?

Yes, SL Series XB emergency versions provide about 3 hours of backup.

Is the CiT2 suitable for food processing areas?

Yes, it is NSF rated for moderate wash environments, however our primary food grade, heavy washdown recommendations are SL Series and FY-HB. For CiT2 details, see the Vapor Tight page.

Talk to a Food Processing LED Lighting Expert, request a quote

Selecting the right NSF and IP69K fixtures is critical for safe, compliant operations in food plants and cold storage facilities.
