Industrial Emergency LED Lighting, UL 924, NEMA 4X, NSF, C1D2

Protect egress routes and critical areas with industrial emergency LED lighting built for harsh environments. Choose NEMA 4X battery units and remote heads for washdown and corrosion resistance, NSF options for food plants, and Class I Division 2 models for hazardous locations. LED heads provide uniform illumination with optics from spot to wide, paired with long life batteries for code compliant 90 minute operation. Add self testing diagnostics, remote monitoring, and cold weather packages for freezers or outdoor sites. Get fast photometric spacing help and a quick quote for SV, SVH, HP, and HPRL configurations.

When to Choose Emergency LED Lighting, UL 924, NEMA 4X, NSF, C1D2

Choose industrial emergency LED lighting when codes require UL 924 egress illumination and you need durable, washdown rated hardware for production spaces. NEMA 4X housings block water and corrosion in food and beverage lines, with NSF listed SV models for sanitary zones and cold storage. In hazardous operations, Class I Division 2 SVH units meet the environment and wet location demands. HP battery units add wide temperature ranges and remote test options, while HPRL remote heads extend coverage from one central battery. Use self testing diagnostics and, where required, Title 20 compliant selections.

  • Meet NFPA 101 and UL 924 egress levels for 90 minutes.

  • NEMA 4X and NSF for washdown, food plants, and corrosive areas.

  • Class I Division 2 for gases, vapors, and process hazards.

  • Select LED head types L6, L10, L15, spot to wide optics.

  • Choose remote heads when conduit runs are simpler than multiple units.

  • Add cold weather packages for freezers and outdoor sites.

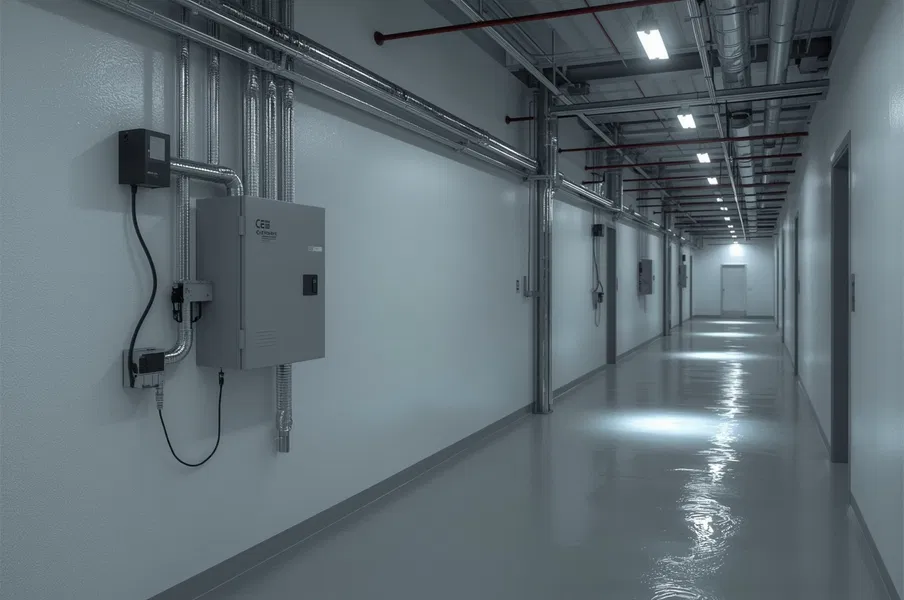

Factory floor with NEMA 4X and Class I Division 2 emergency LED units installed, illustrating when to choose industrial emergency lighting for hazardous or food-grade environments.

At-a-Glance Industrial Emergency LED Lighting, UL 924, NEMA 4X, NSF, Class I Div 2, Model Comparison

Use this side by side overview to narrow models by environment, rating, and capacity, then review the product cards below for features, optics, and orderable options.

Family Hazard or env. rating Enclosure 1.5 h rating or power Heads or lamps Runtime Temp range
Survive All SVH Series Class I Division 2, Groups A to D Damp or wet location 18, 36, 60, 72 W capacities MR16 LED, LA to LJ, 4 to 6 W Up to 4 h options 50 to 104°F
Survive All SV Series NEMA 4X, NSF NEMA 4X, wet or damp, cold-weather option Lead-calcium 18 to 54 W, NiCd 24 or 40 W MR16 LED, LA to LJ, 4 to 6 W Up to 4 h options 50 to 104°F, CW option, -40 to 104°F
HP Series Remote Unit NEMA 4X remote NEMA 4X Remote, 12 to 24 V input L6 6 W 565 lm, L10 10 W 1000 lm, L15 15 W 1300 lm n/a, remote -40 to 131°F
High Performance LED Battery Unit NEMA 4X battery unit NEMA 4X 30, 40, 60, 90 W models L6 565 lm, L10 1000 lm, L15 1300 lm 1.5 h standard tables LC 32 to 122°F, NiCd 50 to 104°F, CW option, -40 to 122°F for 90 min
EX-ES03 C1D1 Exit and Emergency Combo Class I Division 1 Groups C, D, also C1D2, C2D1, C2D2, Class III NEMA 4X, IP66, IK10 enclosure Two spotlights 5 W each, exit sign 3 to 5 W Adjustable twin heads plus exit sign 3 h Charge 32 to 113°F, discharge -4 to 140°F

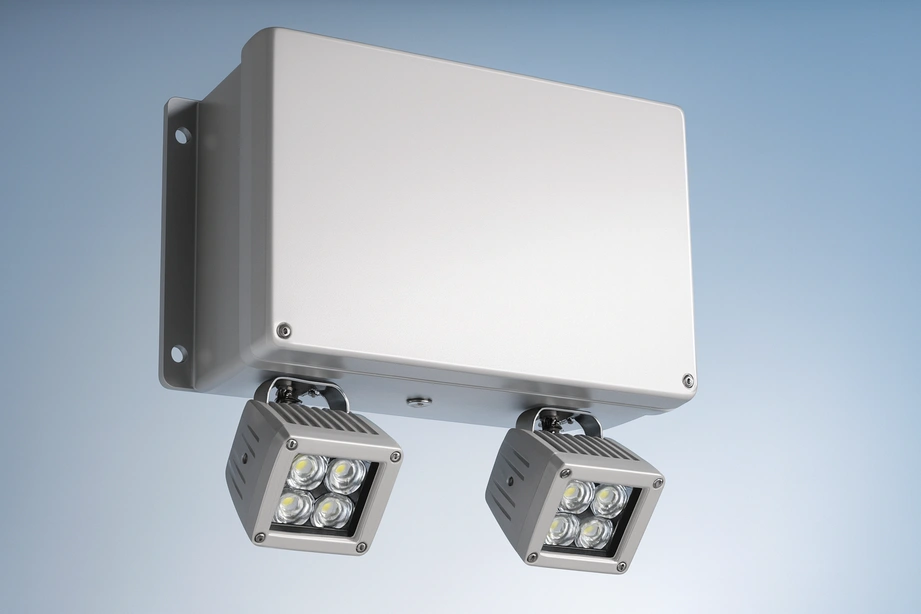

Survive-All SVH Series Class I Division 2 emergency LED light with rugged housing and dual adjustable LED heads for hazardous locations.

Survive-All SVH Series, Class I Division 2 Emergency LED

The Survive-All SVH Series is designed for hazardous industrial areas where gases or vapors may be present, delivering UL 924 emergency light with Class I Division 2 suitability. A sealed, heavy duty enclosure and wet location rating support process lines, blending rooms, and paint or chemical zones. Choose LED lamp packages and optics that meet spacing targets, then add self testing and networked monitoring to simplify inspections. With capacities sized for 90 minute paths of egress, SVH helps you meet safety objectives in demanding environments.

Key Features

  • Class I Division 2 suitability for hazardous locations

  • UL 924 emergency operation with wet location rating

  • Rugged enclosure, corrosion resistant hardware

  • LED lamp options LA to LJ, multiple beam spreads

  • Advanced diagnostics with remote monitoring options

  • Battery capacities sized to achieve your spacing plan

  • Compatible with cold or damp environments

Variations & Ordering (Survive-All SVH Family)

Model Battery Capacity at 1.5h, 2h, 3h, 4h, 8h LED lamp options Input Operating temp Hazardous approvals
SVH18M 6 V lead-calcium, 18 W 18, 12, 9, n/a, n/a W LA 6 V 4 W, LB 6 V 5 W 120/277 V AC 50 to 104 °F Class I Div 2 Groups A, B, C, D, UL 924
12SVH36M 12 V lead-calcium, 36 W 36, 27, 18, 14, n/a W LG 12 V 4 W, LI 12 V 5 W, LJ 12 V 6 W 120/277 V AC 50 to 104 °F Class I Div 2 Groups A, B, C, D, UL 924
12SVH60M 12 V lead-calcium, 60 W 60, 45, 30, 24, 12 W LG 12 V 4 W, LI 12 V 5 W, LJ 12 V 6 W 120/277 V AC 50 to 104 °F Class I Div 2 Groups A, B, C, D, UL 924
12SVH72M 12 V lead-calcium, 72 W 72, 54, 36, 28, 14 W LG 12 V 4 W, LI 12 V 5 W, LJ 12 V 6 W 120/277 V AC 50 to 104 °F Class I Div 2 Groups A, B, C, D, UL 924

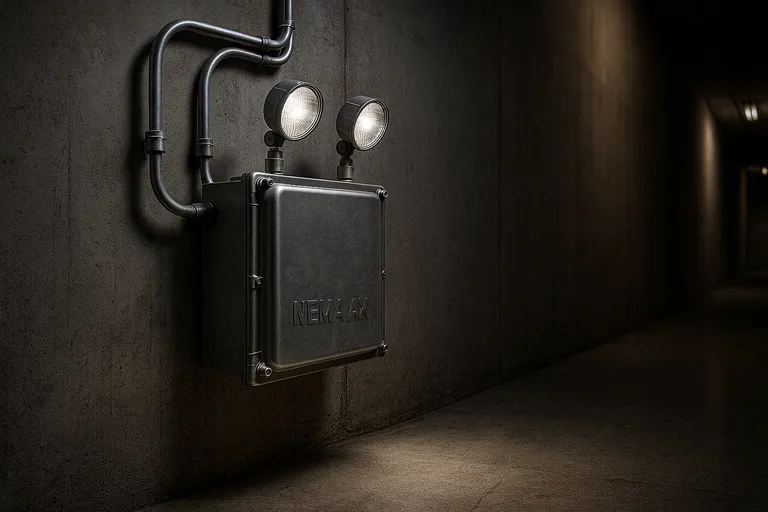

Survive-All SV Series NEMA 4X and NSF certified emergency LED lighting unit with tamper-resistant cover for food and industrial environments.

Survive-All SV Series, NEMA 4X Emergency LED, NSF Food Grade

Built for wet, washdown, and corrosive spaces, the Survive-All SV Series delivers reliable UL 924 emergency LED lighting in a sealed NEMA 4X enclosure. The NSF listing supports food processing and clean manufacturing, while cold weather packages keep performance steady in freezers and outdoor sites. LED head options let you match beam patterns to aisles or open floors, and on-board self testing simplifies maintenance. Title 20 compliant selections are available for California. Pair with centralized monitoring where required to verify 90 minute egress illumination without manual checks.

Key Features

  • UL 924 code compliant, 90 minute egress lighting

  • NEMA 4X, corrosion resistant, washdown ready housing

  • NSF listed for sanitary and food processing environments

  • LED head choices, spot to wide optics for targeted coverage

  • Advanced self testing diagnostics, Nexus style monitoring options

  • Cold weather packages for freezers and outdoor locations

  • Title 20 compliant configurations for regulated markets

Variations & Ordering (Survive-All SV Family)

Model Battery Capacity at 1.5h, 2h, 3h, 4h LED lamp options Input Operating temp Key ratings CEC Title 20
SV18M 6 V lead-calcium, 18 W 18, 12, 8, n/a W LA 6 V 4 W, LB 6 V 5 W 120/277 V AC 50 to 104 °F, cold-weather on select models NEMA 4X, NSF, UL 924 Yes
12SV24M 12 V lead-calcium, 24 W 24, 16, 12, 8 W LG 12 V 4 W, LI 12 V 5 W, LJ 12 V 6 W 120/277 V AC 50 to 104 °F, cold-weather on select models NEMA 4X, NSF, UL 924 Yes
12SV36M 12 V lead-calcium, 36 W 36, 24, 20, 14 W LG 12 V 4 W, LI 12 V 5 W, LJ 12 V 6 W 120/277 V AC 50 to 104 °F, cold-weather on select models NEMA 4X, NSF, UL 924 Yes
12SV54M 12 V lead-calcium, 54 W 54, 36, 27, 20 W LG 12 V 4 W, LI 12 V 5 W, LJ 12 V 6 W 120/277 V AC 50 to 104 °F, cold-weather on select models NEMA 4X, NSF, UL 924 Yes
12SV24N 12 V nickel-cadmium, 24 W 24, 18, 12, 8 W LG 12 V 4 W, LI 12 V 5 W, LJ 12 V 6 W 120/277 V AC 50 to 104 °F, cold-weather on select models NEMA 4X, NSF, UL 924 No
12SV40N 12 V nickel-cadmium, 40 W 40, 27, 20, 14 W LG 12 V 4 W, LI 12 V 5 W, LJ 12 V 6 W 120/277 V AC 50 to 104 °F, cold-weather on select models NEMA 4X, NSF, UL 924 No

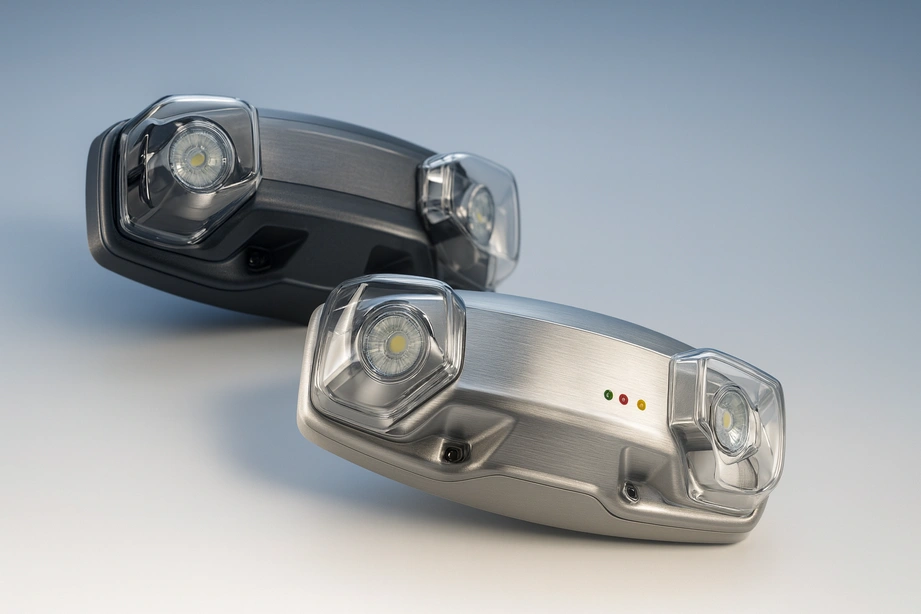

HPRL Series high performance remote LED emergency heads with polycarbonate housing, ideal for industrial corridors and outdoor hazardous locations.

HPRL High-Performance Remote Fixtures, NEMA 4X

HPRL remote fixtures pair with compatible battery units to extend emergency LED coverage across large interiors and outdoor egress routes. The sealed NEMA 4X design with polycarbonate optics and stainless hardware stands up to washdown, chemicals, and weather. Choose single or twin heads with L6, L10, or L15 LED engines and aim beams for aisles, doorways, or wide areas. Use spacing guidelines to set mounting height and head count, then run conduit from a centralized HP unit for easier maintenance and testing.

Key Features

  • NEMA 4X remote heads for harsh and washdown environments

  • Single or twin heads, LED engines L6, L10, L15

  • Precise aiming, spot to wide optics for targeted coverage

  • Compatible with HP central battery units and diagnostics

  • Broad operating temperature range for indoor or outdoor use

  • Durable polycarbonate lenses and stainless hardware

Variations & Ordering (HPRL Remote Fixtures Family)

Model Heads LED head Output Input Operating temp Key ratings
HPRL L6 1 6 W 565 lm 12 to 24 V DC -40 to 131 °F NEMA 4X, UL 924
HPRL L10 1 10 W 1000 lm 12 to 24 V DC -40 to 131 °F NEMA 4X, UL 924
HPRL L15 1 15 W 1300 lm 12 to 24 V DC -40 to 131 °F NEMA 4X, UL 924
HPRLD L6 2 6 W each 565 lm each 12 to 24 V DC -40 to 131 °F NEMA 4X, UL 924
HPRLD L10 2 10 W each 1000 lm each 12 to 24 V DC -40 to 131 °F NEMA 4X, UL 924
HPRLD L15 2 15 W each 1300 lm each 12 to 24 V DC -40 to 131 °F NEMA 4X, UL 924

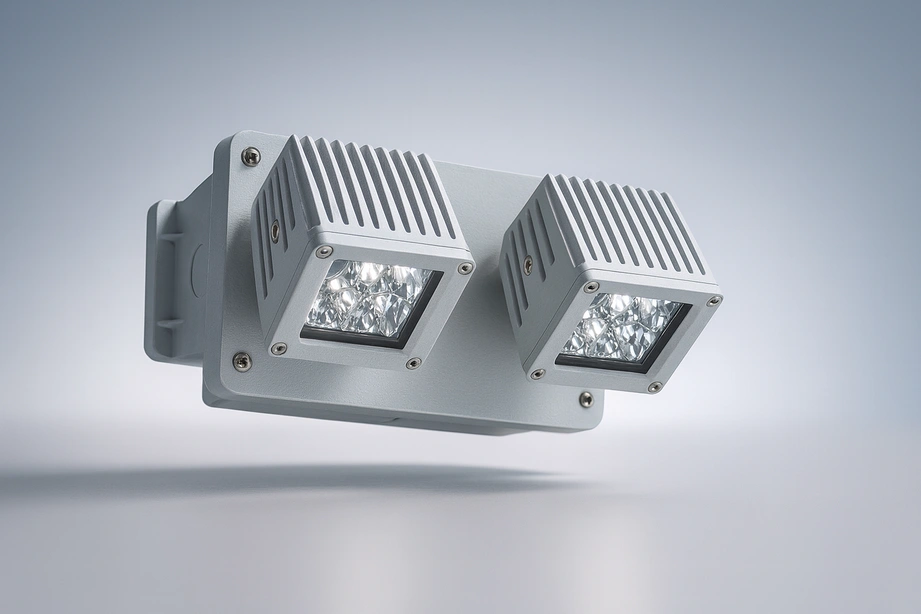

HP Series NEMA 4X industrial battery emergency lighting unit with LED heads, designed for backup egress lighting in harsh facilities.

HP Series Industrial Emergency Battery Unit, NEMA 4X

The HP Series is a NEMA 4X industrial battery unit that drives integral or remote LED heads for reliable UL 924 egress lighting. The sealed housing resists water and corrosives, making it a solid fit for washdown bays, outdoor corridors, and utility spaces. Add remote test capability to verify status without opening the enclosure, select cold weather options for freezers, and match LED heads to your mounting height and spacing criteria. The HP platform supports central battery strategies with robust electronics and long life batteries.

Key Features

  • UL 924 compliant industrial battery unit, NEMA 4X enclosure

  • Drives integral or remote LED heads L6, L10, or L15

  • Remote test and self diagnostics to simplify inspections

  • Wide operating temperature options, cold weather packages

  • Corrosion resistant construction for washdown and outdoor sites

  • Flexible mounting and conduit entries for retrofit projects

Variations & Ordering (HP Series Family)

Model Battery Capacity at 1.5h, 2h, 3h, 4h LED heads Input Operating temp Key ratings CEC Title 20
12HPM30 12 V lead-calcium, 30 W 30, 20, 15, 10 W L6 6 W, L10 10 W, L15 15 W 120/277 V AC 32 to 122 °F, optional cold-weather -40 to 122 °F NEMA 4X, UL 924 Yes
12HPM60 12 V lead-calcium, 60 W 60, 40, 30, 20 W L6 6 W, L10 10 W, L15 15 W 120/277 V AC 32 to 122 °F, optional cold-weather -40 to 122 °F NEMA 4X, UL 924 Yes
12HPN40 12 V nickel-cadmium, 40 W 40, 36, 24, 18 W L6 6 W, L10 10 W, L15 15 W 120/277 V AC 50 to 104 °F NEMA 4X, UL 924 No
24HPN90 24 V nickel-cadmium, 90 W 90, 72, 48, 36 W L6 6 W, L10 10 W, L15 15 W 120/277 V AC 50 to 104 °F NEMA 4X, UL 924 No
EDGE Series high-temperature LED flood light with remote driver, IP66, continuous duty up to 100°C

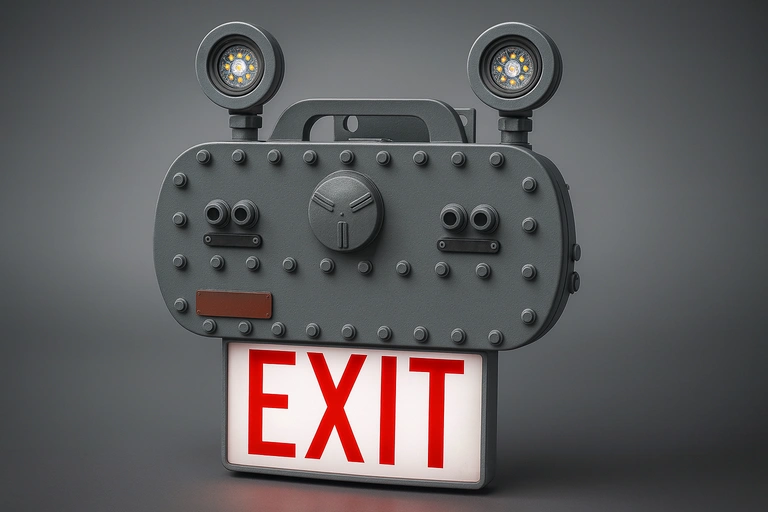

Related Explosion Proof Exit and Emergency LED, Class I Division 1

For classified areas, choose EX-ES03, C1D1 and C1D2 rated, UL 844 and UL 924, NEMA 4X, IP66, adjustable LED heads.

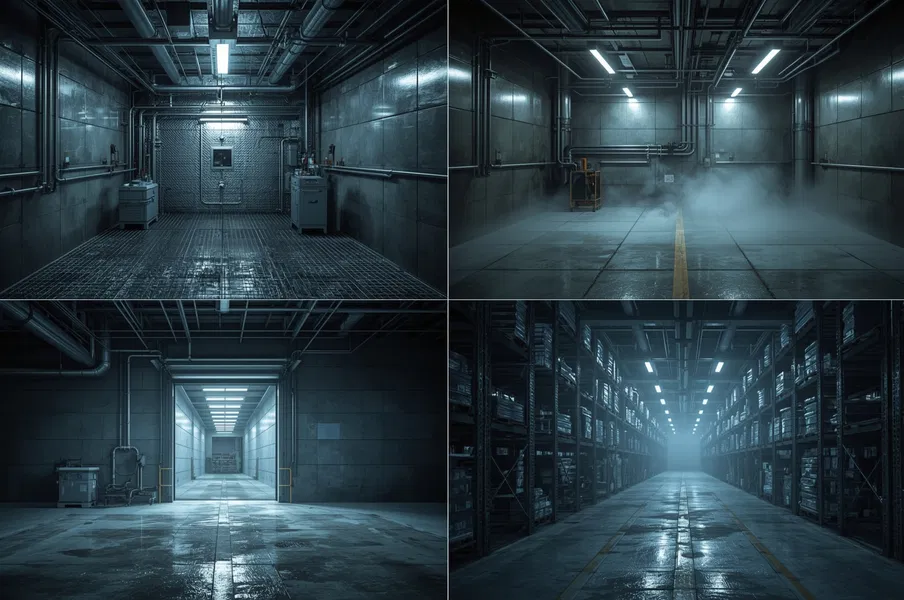

Four key industrial applications of emergency LED lighting shown in one grid, including hazardous chemical facility, food and cold storage warehouse, refinery egress path, and manufacturing plant safety illumination.

Emergency Lighting Applications, industrial, hazardous, washdown, cold rooms

Use industrial emergency LED lighting to meet UL 924 egress in harsh sites. Select NEMA 4X and NSF for washdown and food zones, choose C1D2 units for hazardous areas, and pair HP battery units with HPRL remote heads for wide coverage and easier testing.

Key applications include:

  • Food and beverage production, CIP rooms, packaging

  • Cold storage freezers, coolers, docks, exterior egress

  • Hazardous C1D2 process areas with gases or vapors

  • Chemical handling, paint mix, blending rooms

  • Pharmaceutical and clean manufacturing, sanitary spaces

  • Wastewater, utilities, pump rooms, stair towers

  • Warehouses and distribution aisles, high mounting heights

  • Long corridors, mezzanines, control rooms using remote heads

Note, ask for a quick spacing plan, we will size heads, capacity, and optics to your site.

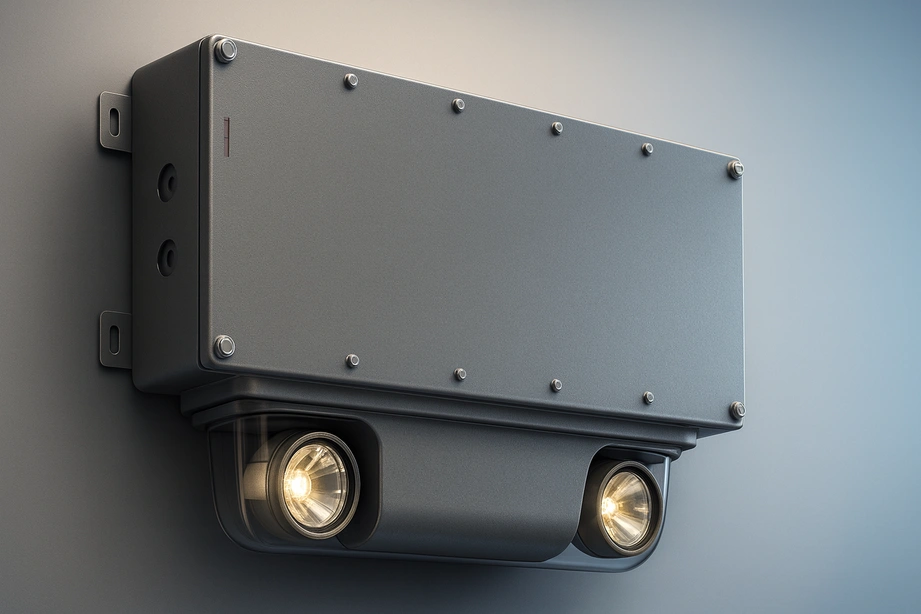

Close-up of UL 924, NEMA 4X, and NSF certified emergency LED unit with twin adjustable heads, demonstrating compliance for hazardous, food processing, and industrial applications.

Certifications and Compliance, UL 924, NEMA 4X, NSF, Class I Division 2

All models support UL 924 for 90 minute egress. SV covers NEMA 4X and NSF, SVH suits Class I Division 2, HP and HPRL add diagnostics, monitoring, and cold weather options.

Key ratings and compliance items include:

  • UL 924 egress performance, 90 minute duration

  • NEMA 4X sealed enclosures for wet, washdown, corrosive areas

  • NSF options for food processing and clean manufacturing

  • Class I Division 2 suitability for gas and vapor environments

  • Self testing diagnostics with remote monitoring options

  • Cold weather packages for freezers and outdoor sites

  • Title 20 compliant configurations for regulated markets

Note, confirm ratings and temperature ranges on the spec sheets before approval.

Close-up of UL 924, NEMA 4X, and NSF certified emergency LED unit with twin adjustable heads, demonstrating compliance for hazardous, food processing, and industrial applications.

Emergency Lighting FAQs

What is UL 924 and why does it matter?

UL 924 sets performance for emergency egress lighting, including automatic transfer on power loss and 90 minute illumination, our SV, SVH, HP, and HPRL solutions are designed to support it when applied correctly.

When should I specify NEMA 4X or NSF?

Choose NEMA 4X for washdown, corrosive, or outdoor areas, pick NSF listed models for food processing and sanitary zones, the SV family covers both.

Do I need Class I Division 2 or Class I Division 1?

Use Class I Division 2 for locations with gases or vapors under abnormal conditions, for continuous or frequent presence select a Class I Division 1 solution like EX-ES03.

How do I select LED heads and optics for spacing?

Match head output to your mounting height, L6, L10, or L15, and choose spot, aisle, or wide optics to achieve about one footcandle average along the egress path.

When are remote heads better than multiple battery units?

In large plants or long corridors, an HP central battery with HPRL remote heads simplifies testing, reduces points of maintenance, and extends coverage.

Will these systems work in cold or humid environments?

Yes, select cold weather packages for freezers and exterior doors, and NEMA 4X sealed enclosures for steam, washdown, and high humidity.

What diagnostics and monitoring options are available?

Add self testing diagnostics, remote test, and networked monitoring options such as Nexus, Title 20 compliant configurations are available where required.

Talk to an Emergency Lighting Expert, request a quote

Need UL 924 compliant coverage with the right ratings for your site, NEMA 4X, NSF, or Class I Division 2? Send your layout or a quick sketch, we will size SV, SVH, HP, and HPRL, set optics and capacity, and return pricing, lead times, and submittals fast. Get a spacing plan that meets code, with simple maintenance and monitoring options.
