UFO and Linear High Bay LED Lighting for Warehouses, Manufacturing

Light tall spaces with high bays delivering up to 180 lm/W UFO and 152 lm/W linear performance across 100 to 250 W. Choose drivers in 120 to 277 V or 277 to 480 V, 0 to 10 V dimming and sensor options, plus IP65 selections for dusty or damp interiors and DLC listings for rebates.

When to Choose UFO or Linear High Bay LED Lighting for Warehouses

Use high bay LEDs when ceilings are tall, tasks need uniform light, and you want lower energy and maintenance. UFO high bays excel on open floors and sports spaces with fast installs and wide coverage. Linear high bays focus light down long aisles, improving visibility between racks and along pick paths.

  • Ceilings 18 to 45 ft, wide beams for open floors, aisle optics for racking.

  • Warehouses, 3PL, manufacturing lines, gyms, and hangars that require bright, even, low glare light.

  • Choose UFO high bays for open layouts and quick installs using hook or pendant mounts.

  • Choose linear high bays for long aisles, optics 60°, 90°, or 120° to push light between racks.

  • Dusty or damp interiors, specify IP65 constructions with sealed lenses and gaskets.

  • Add controls, 0 to 10 V dimming plus occupancy or daylight sensors to cut runtime and costs.

  • Power flexibility, 120 to 277 V standard, 347 to 480 V available for industrial services.

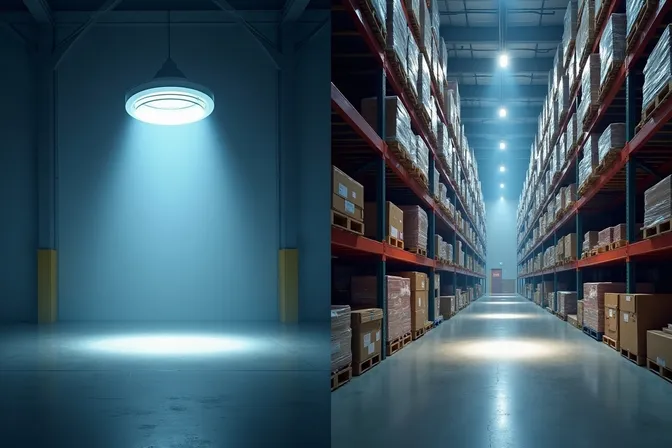

UFO high bay LED lighting over an open warehouse floor, wide 120 degree beam pattern

At-a-Glance High Bay LED Lighting, UFO and Linear, Model Comparison

Use this quick comparison to choose your high bay type, then scan the product sections below for features and orderable options.

Model Form factor Wattage options (W) Efficacy (lm/W) Typical lumens Voltage Optics IP or special rating Notes
LS-5EHB UFO high bay 100, 150, 200, 240 180 up to 43,200 120 to 277 V, 277 to 480 V 120° wide distribution N/A 0 to 10 V dimming, sensor ready
LS-LHBV2 Linear high bay 110, 165, 220 140 15,400, 23,100, 30,800 120 to 277 V 106° N/A CCT tunable, 0 to 10 V dimming
K5 High Lumen Linear high bay 100, 150, 200, 250 up to 152 15,200 to 38,000 100 to 277 V, 347, 480 60°, 90°, 120° IP54 DLC Premium, sensor options
FYT Lumen Plus Linear high bay, IP65 150, 200 140 to 150 20,000 to 30,000 120 to 277 V 120° IP65 Clear or frosted lens
EDGE Series LED High Bay Modular linear high bay, IP66 120, 200, 300, 400, 600 160 to 165 19,200 to 96,000 100 to 277 V, 347 to 480 V options 22°, 30°, 45°, 60°, 90°, 110°, 150°, 40×100°, 60×100° IP66, 5 yr warranty High lumen LED high bay for warehouses, plants, and tall aisles
RT-HPH 80C Round high bay, high temperature 240 130 31,200 100 to 277 V, 200 to 480 V 120° wide beam IP66, high temp up to 80 °C High temperature round LED high bay for mills, foundries, hot process areas
Food Grade High Bay NSF cold storage, washdown 80, 100, 125, 150, 185, 200 150 or 190 12,000 to 38,000 120 to 277 V, 120 to 347 V, 277 to 480 V 115° IP66, IP69K -40 to +45 °C operation, 5 yr warranty
Photoreal 3D render of LS-5EHB UFO LED High Bay light with stainless steel hook, matte black housing, and frosted LED lens against a light gray to blue gradient background.

LS-5EHB UFO High Bay LED Lights, 180 lm/W, 120 to 480 V

The LS-5EHB is our search-leader UFO high bay for open floors, gyms, and production areas. It delivers up to 180 lm per W across 100 to 240 W outputs with a wide 120 degree beam for even coverage. Standard drivers run on 120 to 277 V, high voltage models cover 277 to 480 V for industrial power. Every unit includes 0 to 10 V dimming, with optional motion sensing and emergency battery backup to cut runtime and support safety plans. A heavy die-cast aluminum housing, black or white, pairs with a clear PC lens for durability. Color choices include 3000 K, 4000 K, and 5000 K to match visual tasks and rebate specs. Typical packages produce 18,000 to 43,200 lumens, giving you fast HID replacement and strong DLC performance.

Key Features

  • 180 lm/W high efficacy across 100, 150, 200, 240 W models.

  • Wide 120° distribution for uniform coverage in open areas.

  • Drivers for 120 to 277 V, high voltage 277 to 480 V options.

  • 0 to 10 V dimming standard, occupancy sensor optional.

  • Emergency battery backup and microwave motion sensor accessories.

  • Heavy die-cast aluminum housing, black or white finish.

  • CCT options 3000 K, 4000 K, 5000 K.

  • Operating temperature rating down to −36°C and up to +60°C.

Variations & Ordering (LS-5EHB UFO High Bay Family)

Model Wattage Typical Lumens Voltage CCT Beam
LS-5EHB100W-XXK 100 W 18,000 lm 120 to 277 V 3000 K, 4000 K, 5000 K 120°
LS-5EHB150W-XXK 150 W 27,000 lm 120 to 277 V 3000 K, 4000 K, 5000 K 120°
LS-5EHB200W-XXK 200 W 36,000 lm 120 to 277 V 3000 K, 4000 K, 5000 K 120°
LS-5EHB240W-XXK 240 W 43,200 lm 120 to 277 V 3000 K, 4000 K, 5000 K 120°
LS-5EHB100WHV-XXK 100 W 18,000 lm 277 to 480 V 3000 K, 4000 K, 5000 K 120°
LS-5EHB150WHV-XXK 150 W 27,000 lm 277 to 480 V 3000 K, 4000 K, 5000 K 120°
LS-5EHB200WHV-XXK 200 W 36,000 lm 277 to 480 V 3000 K, 4000 K, 5000 K 120°
LS-5EHB240WHV-XXK 240 W 43,200 lm 277 to 480 V 3000 K, 4000 K, 5000 K 120°

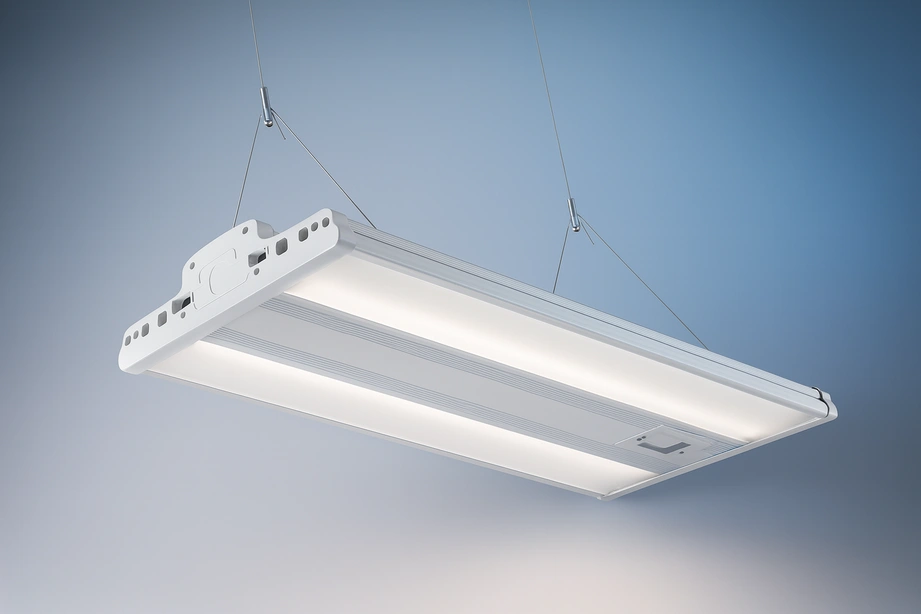

High-resolution 3D render of LS-LHBV2 Linear High Bay LED light with aluminum and gray finishes, suspended on cables against a soft gradient background.

LS-LHBV2 Linear High Bay LED Lights, 110 to 220 W, 140 lm/W

The LS-LHBV2 is a tunable linear high bay engineered for racked aisles and open industrial floors. Three power steps, 110, 165, 220 W, deliver 15,400 to 30,800 lumens at 140 lm per W for efficient HID replacement. A 106° beam provides wide, even coverage, while 4000 K or 5000 K CCT settings align with task needs and rebate specs. Standard 120 to 277 V drivers with 0 to 10 V dimming simplify controls, and the built in sensor receptacle supports plug and play motion sensing. The fixture uses a heavy die cast aluminum housing with a frosted PC lens for durability, suspended or ceiling mounting. Rated for −20 to +40 °C operation with a 5 year limited warranty and 50,000 hour life, it is a reliable choice for warehouses, distribution centers, and production lines.

Key Features

  • 110, 165, 220 W models, 15,400 to 30,800 lm, 140 lm/W.

  • 106° distribution for wide aisle and floor coverage.

  • 4000 K or 5000 K CCT, watt and CCT tunable.

  • 120 to 277 V input with 0 to 10 V dimming driver.

  • Built in sensor receptacle, easy plug and play motion sensing, EBB option.

  • Heavy die cast aluminum housing, frosted PC lens.

  • −20 to +40 °C operation, 5 year limited warranty, 50,000 hour life.

Variations & Ordering (LS-LHBV2 Linear High Bay Family)

Model Wattage Typical Lumens Voltage CCT Beam
LS-LHBV2-110W-XXK 110 W 15,400 lm 120 to 277 V 4000 K or 5000 K 106°
LS-LHBV2-165W-XXK 165 W 23,100 lm 120 to 277 V 4000 K or 5000 K 106°
LS-LHBV2-220W-XXK 220 W 30,800 lm 120 to 277 V 4000 K or 5000 K 106°

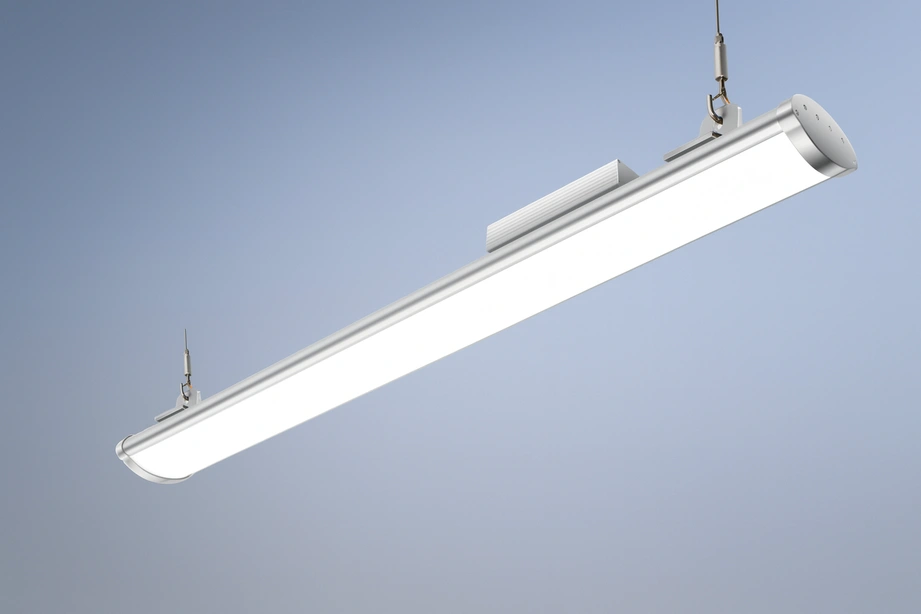

High-resolution 3D render of K5 High Lumen Linear LED High Bay Light with aluminum body, blue end caps, and suspended mounting chains on a soft gradient background.

K5 High Lumen Linear LED High Bay Lights, DLC Premium, 100 to 250 W

Engineered for big aisles and tall bays, the K5 high lumen linear high bay pairs up to 152 lm per W performance with selectable optics, 60°, 90°, 120°, to push light where you need it. Lumen packages span 15,200 to 38,000 across 100, 150, 200, and 250 W models, replacing 250 to 750 W HID while controlling glare and spill. Industrial power is covered with AC 100 to 277 V, 347 V, and 480 V inputs, plus 0 to 10 V, PWM, or resistance dimming. Controls include microwave and daylight sensors with optional Zigbee wireless. A rugged IP54 housing, aviation grade aluminum, and a 7 year warranty support demanding duty cycles, with rated life to 100,000 hours and operation from −20 to +55 °C.

Key Features

  • Up to 152 lm/W efficacy, high lumen outputs to 38,000.

  • Three optic choices, 60°, 90°, 120°, for aisles or open areas.

  • AC 100 to 277 V, 347 V, 480 V input options.

  • 0 to 10 V, PWM, resistance dimming, sensor ready.

  • Microwave and daylight sensors, optional Zigbee wireless control.

  • IP54 construction, aviation aluminum, junction box for safe wiring.

  • 7 year warranty, 100,000 hour life, −20 to +55 °C operation.

Variations & Ordering (K5 High Lumen Linear LED Family)

Model Wattage Typical Lumens Voltage Optics Efficacy IP
HS-HB100W-K5 100 W 15,200 lm 100 to 277 V, 347, 480 60°, 90°, 120° up to 152 lm/W IP54
HS-HB150W-K5 150 W 22,800 lm 100 to 277 V, 347, 480 60°, 90°, 120° up to 152 lm/W IP54
HS-HB200W-K5 200 W 30,400 lm 100 to 277 V, 347, 480 60°, 90°, 120° up to 152 lm/W IP54
HS-HB250W-K5 250 W 38,000 lm 100 to 277 V, 347, 480 60°, 90°, 120° up to 152 lm/W IP54
Photoreal 3D render of FYT Lumen Plus Linear High Bay LED Light, aluminum housing with frosted diffuser, suspended cable mount, clean gradient background.

FYT Lumen Plus Linear High Bay LED Lights, IP65, 150 W and 200 W

Built for dusty or damp interiors, FYT Lumen Plus delivers 140 to 150 lm per W with sealed IP65 construction and a wide 120° beam for uniform aisle coverage. Two outputs cover most warehouse and production needs, 150 W at 20,000 to 22,000 lm and 200 W at 28,000 to 30,000 lm. Clear or frosted PC lenses, CRI over 80, and PF over 0.95 support quality light and stable performance. Operation spans −40 to +45 °C with 50,000 hour life, and drivers from Meanwell or Tomcarline ensure reliability. Certification sets include UL, TUV, DLC, CE, RoHS, and SAA, making FYT a solid choice where moisture or particulate matter are concerns.

Key Features

  • IP65 sealed housing for dusty or damp areas.

  • 150 W and 200 W models, up to 30,000 lm.

  • 140 to 150 lm per W with clear or frosted lens options.

  • 120° beam for wide, even coverage.

  • CRI over 80 and PF over 0.95.

  • Operates from −40 to +45 °C, 50,000 hour life.

  • Meanwell or Tomcarline driver options, multiple certifications.

Variations & Ordering (FYT Lumen Plus Linear LED Family)

Model Wattage Typical Lumens Beam CCT Operating Temp IP Lens
FYT-LP150W 150 W 20,000 to 22,000 lm 120° 3000 K, 4000 K, 5000 K, 6000 K -40 to +45 °C IP65 Clear or frosted
FYT-LP200W 200 W 28,000 to 30,000 lm 120° 3000 K, 4000 K, 5000 K, 6000 K -40 to +45 °C IP65 Clear or frosted
EDGE Series High Temperature LED Flood and High Bay Light with remote driver, rated up to 100°C (212°F), IP66 waterproof, durable aluminum housing, wide and narrow beam options, energy-efficient industrial LED lighting for factories, furnaces, and extreme heat environments.

EDGE Series LED High Bay, IP66, 120 to 600 W, up to 60°C ambient

The EDGE Series LED High Bay is a high efficiency IP66 high bay platform for warehouses, manufacturing facilities, logistics centers, big box retail stores and gymnasiums that need powerful lumen packages with long service life. Modular from 120 to 600 watts, the fixtures deliver up to 96,000 lumens with system efficacy from 160 to 165 lm per watt, reducing energy and maintenance costs compared to legacy HID high bays. The rugged aluminum housing, multiple optical distributions and flexible mounting options make EDGE a versatile choice for new construction or one for one LED retrofits in demanding industrial environments.

Key Features

  • Modular IP66 LED high bay system from 120 to 600 W, suitable for mid to very high mounting heights

  • Philips Lumileds LED chips with L70 lifetime greater than 150,000 hours for long term performance

  • Ultra bright output, up to 96,000 lumens, with system efficacy between 160 and 165 lm per W to maximize energy savings

  • Multiple optical lenses including 22°, 30°, 45°, 60°, 90°, 110°, 150°, 40×100°, 60×100° and 60×100° wide options for tailored light distribution over aisles, racking and open areas

  • IP66 environmental rating with aluminum alloy housing for dusty, damp and washdown industrial locations

  • Operating temperature 30°C below zero to 60°C ambient, with storage to 80°C, ideal for most standard high bay temperature ranges

  • 100 to 277 V AC input standard with 200 to 480 V option, available with non dimming or dimmable drivers and multiple sensor options

  • Universal bracket or hook ring mounting for fast installation in warehouses, manufacturing plants, cold storage and sports facilities

Variations & Ordering (EDGE Series LED High Bay, up to 60°C ambient)

Model Wattage Typical Lumens Voltage Optics (examples) Operating Temp Key Ratings
EL NED 120 HB 120 W 19,200 lm 100 to 277 V AC, 200 to 480 V option 22°, 30°, 45° narrow beams for focused high bay lighting 30°C to 60°C ambient IP66, 160 lm per W, Philips Lumileds, 5 year warranty
EL NED 200 HB 200 W 33,000 lm 100 to 277 V AC, 200 to 480 V option 60°, 90° medium beam optics for general warehouse aisles 30°C to 60°C ambient IP66, 165 lm per W, high power factor driver
EL NED 300 HB 300 W 49,500 lm 100 to 277 V AC, 200 to 480 V option 110°, 150° wide distributions for open areas and sports courts 30°C to 60°C ambient IP66, 165 lm per W, L70 greater than 150,000 hours
EEL NED 400 HB 400 W 66,000 lm 100 to 277 V AC, 200 to 480 V option 40×100° and 60×100° aisle optics for racked storage facilities 30°C to 60°C ambient IP66, 165 lm per W, aluminum alloy housing
EL NED 600 HB 600 W 96,000 lm 100 to 277 V AC, 200 to 480 V option 90°, 110° and 150° optics for very high mounting and large areas 30°C to 60°C ambient IP66, 160 lm per W, five year warranty, multiple sensor options
RT HPH high temperature round high bay LED, 240 W 80 °C rated fixture shown as hot environment high bay option

RT-HPH High Temperature Round High Bay, 240 W, up to 80 °C

For process areas, mills and foundries where a standard LED high bay cannot handle the heat, step up to the RT-HPH High Temperature Round High Bay. This 240 W, IP66 round LED high bay delivers about 31,200 lumens at 130 lm per W and is engineered for ambient temperatures up to 80 °C with 0 to 10 V dimming and universal 100 to 277 V, 200 to 480 V input. View full high temperature specs, mounting details and performance data on the High Temperature Lighting page.

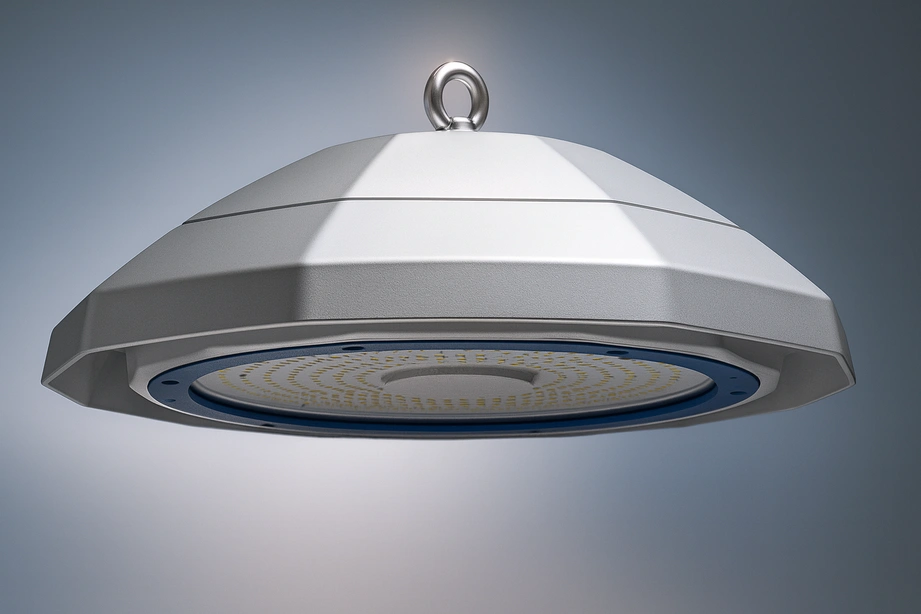

Cold Storage and Food Grade High Bay LED Light 3D render with aluminum housing, detailed LED array, and clean gradient background.

Cold Storage and Food Grade High Bay LED Lights, NSF, IP66 to IP69K

Light freezers, coolers, and sanitary processing zones with sealed, food grade high bay LEDs. These NSF listed fixtures start at −40°C, deliver 150 to 190 lm per W, and use a 115° lens for bright, even coverage. Choose 120 to 277 V or 277 to 480 V drivers, corrosion resistant housings, and washdown rated hardware for IP66 to IP69K environments.

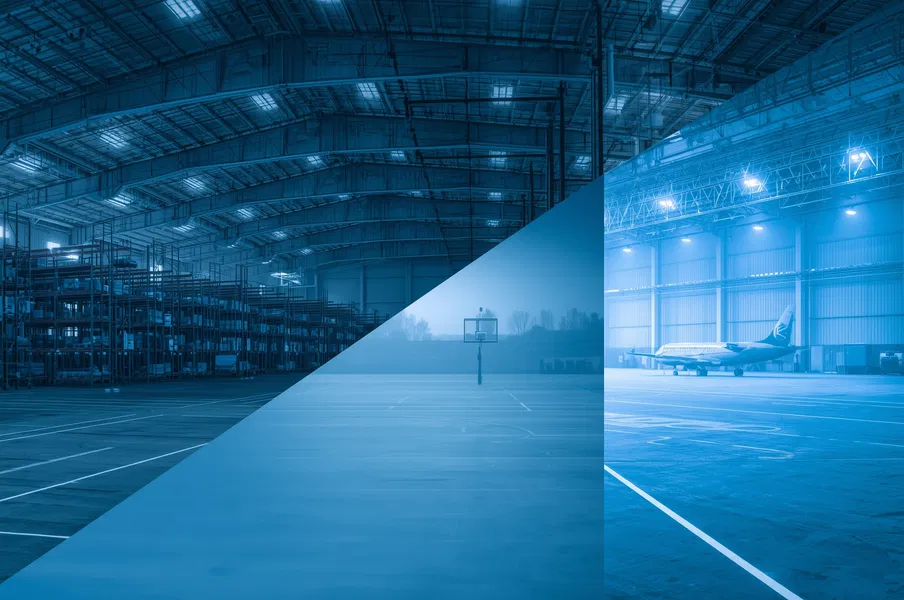

Warehouse and manufacturing hall under high bay LED lights, bright uniform coverage for large spaces

High Bay LED Lighting Applications for Warehouses, Manufacturing, and Gyms

High bay LED lights excel anywhere ceilings are tall and tasks demand bright, even light. Use UFO fixtures for open floors and sports spaces, use linear high bays to push light down long aisles. Pair 0 to 10 V dimming with motion or daylight sensors to cut runtime, and choose 120 to 277 V or 347 to 480 V drivers to match your power.

Key applications include:

  • Warehouses, 3PL hubs, cross dock areas

  • Manufacturing, machining, fabrication, assembly lines

  • Pallet racking aisles in distribution centers

  • Big box retail, wholesale clubs, fulfillment zones

  • Gyms, fieldhouses, indoor courts

  • Aircraft hangars and large maintenance bays

  • Automotive production and inspection areas

  • Convention halls, exhibition and staging spaces

Note, wide optics cover open floors, aisle optics focus light between racks. Our team can size wattage and spacing to your mounting height and target foot-candles.

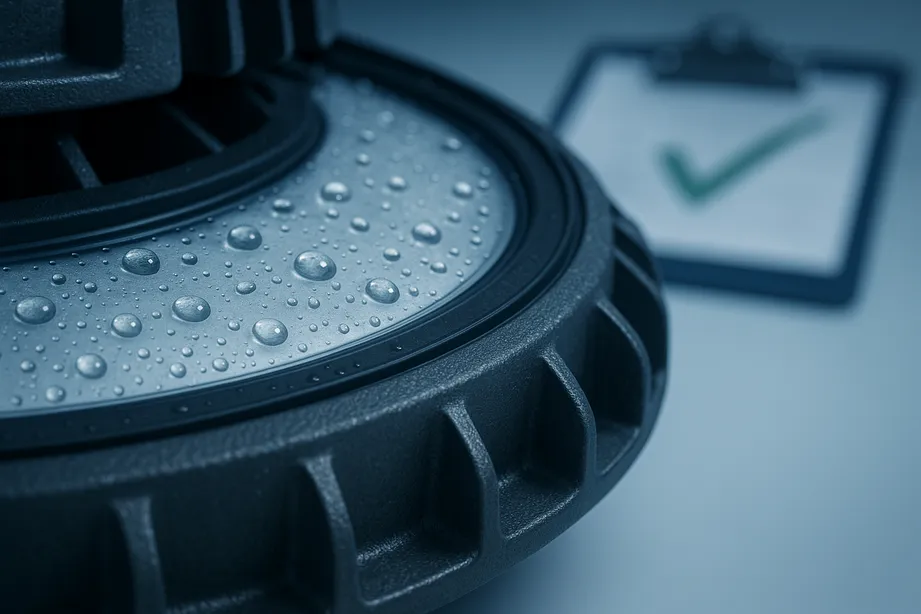

Close up of high bay LED housing and lens, UL and DLC compliant, IP65 to IP69K options

High Bay LED Lighting Certifications and Compliance, DLC, UL, IP65 to IP69K

High bay fixtures must meet safety and energy standards so they install cleanly, pass inspection, and qualify for rebates. The families on this page carry the ratings buyers expect for warehouses, manufacturing, and sports facilities.

Key ratings and compliance items include:

  • DLC or DLC Premium qualification where offered, supports rebate eligibility

  • UL or ETL listings, FCC compliance, and RoHS materials

  • Ingress protection, IP65 on select linear models, IP66 to IP69K for food grade variants where specified

  • Impact protection such as IK10 on rugged housings and lenses

  • Universal input, 120 to 277 V, with 347 or 480 V options on select models, 0 to 10 V dimming ready

  • Documented lifetime, L70 or L90, plus surge protection and ambient temperature ratings

These ratings support safe operation, predictable performance, and code friendly installs in demanding facilities.

Close up of high bay LED housing and lens, UL and DLC compliant, IP65 to IP69K options

High Bay LED Lighting FAQs

What ceiling heights are best for high bay LED lights?

Typically 18 to 45 ft. Use higher wattage and tighter optics as mounting height increases. For lower heights, step down wattage or choose a wider beam to control glare.

When should I choose UFO vs linear high bay?

Pick UFO for open floors, gyms, and wide production areas. Choose linear for pallet racking and long aisles where you want light pushed between racks.

Which optics should I select, wide or aisle?

Wide beams, about 90 to 120 degrees, spread light over open spaces. Aisle or narrow beams, about 30 to 60 degrees, concentrate light down rack corridors and reduce waste on shelf faces.

What voltage options do I need, 120 to 277 V or 347 to 480 V?

Most commercial sites use 120 to 277 V. Large industrial plants often require 347 or 480 V. Match the driver to the building service to avoid external transformers.

Do high bay LEDs work with dimming and controls?

Yes. 0 to 10 V dimming is standard on most models. Add occupancy and daylight sensors to cut runtime, stabilize light levels during bright hours, and improve payback.

Are these suitable for dusty or damp locations?

Select models carry IP65 construction for dust and moisture. For direct washdown or food zones, cross to our food grade high bay section with IP66 to IP69K and NSF options.

How do I qualify for utility rebates, and which CCT is best?

Look for DLC or DLC Premium listings on the exact model and wattage. For color, 5000 K maximizes visual pop and task contrast, 4000 K balances comfort and clarity, and 3000 K is reserved for customer facing areas where warm tone is preferred.

What if my high bay area has very high ambient temperatures?

If your ceiling space routinely runs hotter than about 40 to 50 °C because of ovens, furnaces or process heat, you should move to a high temperature rated LED high bay instead of a standard model. For bays up to 80 °C ambient, use the RT HPH High Temperature Round High Bay. For combined flood and high bay layouts in hot process areas, cross over to the EDGE high temperature LED flood and high bay and RT IL families on the High Temperature Lighting page. This protects the driver, maintains lumen output and avoids premature failures in extreme heat.

Talk to a High Bay Lighting Expert

Need help matching wattage, optics, and mounting height for your warehouse, manufacturing floor, or gym? Our team will size UFO or linear high bays to your ceiling height, run quick photometrics, and spec the right voltage, 120 to 277 V or 347 to 480 V, sensors, and optics for aisles or open floors. Get fast pricing, rebate guidance, and lead times that fit your schedule.
