Get bright, portable, and certified-safe illumination for hazardous jobs and confined spaces. The EX-MV01 delivers up to 1,600 lumens, up to 10 hours of run time, a deployable 360° mast, and UL844 C1D1 / ATEX / IECEx compliance—purpose-built for maintenance, inspection, tank cleaning, emergency response, and more.
Choose portable C1D1/C1D2 work lights when you need code-compliant, move-anywhere lighting—without running cable or installing permanent fixtures:
Maintenance & turnarounds: temporary spot lighting where ignition sources must be contained.
Confined spaces & tank cleaning: compact footprint, 125° beam for wide, close-up work.
Emergency/outage response: High/Low/Flashing modes, full-time battery indicator, and rugged build support long shifts.
Process skids, compressor stations, pipelines: intrinsically safe certifications (Ex ia IIC T4 Ga).
Model / Family | Type | Wattage Range | Lumens | Mounting Options | Certifications | Typical Applications |
---|---|---|---|---|---|---|
EX-MV01 Portable | Portable Work Light | 5–19.5 W | High: 1,600 lm / Low: ≥500 lm | Deployable mast with 360° rotation | UL844 C1D1 (Groups A–D, T4), ATEX / IECEx Ex ia IIC T4 Ga, IP66 | Tank cleaning, confined spaces, maintenance, emergency response |
EXI Linear LED | Linear Fixture | 20–120 W | ~5,600 – 16,800 lm | Ceiling or wall brackets, 2-ft & 4-ft options | UL844 C1D1 & C1D2, Class II Div 1 & 2, Class III, ATEX, IECEx, UL 1598A Marine, IP66/IK10 | Refineries, process corridors, paint booths, marine & offshore |
EXD Flood & High Bay | Flood / High Bay | ~180 W typical (other configs available) | ~30,000 lm output (depending on optic) | Wall, ceiling, or high bay mounting | UL844 C1D1 & C1D2, Class II Div 1 & 2, Class III, ATEX, IECEx, UL 1598A Marine, IP66/IK10 | Power plants, refineries, chemical facilities, large warehouses |
EX-ES03 Emergency / Exit | Emergency / Exit Combo | Spot lights: 5 W each; Exit sign: 3–5 W | Emergency spot ~1,000+ lm (2 heads) | Wall mount; adjustable dual spot heads; exit panel | UL844 C1D1 & C1D2, UL924, ATEX, ETL, Class II Div 1 & 2, Class III, IP66/IK10 | Refineries, escape routes, chemical plants, wastewater, food & alcohol industry |

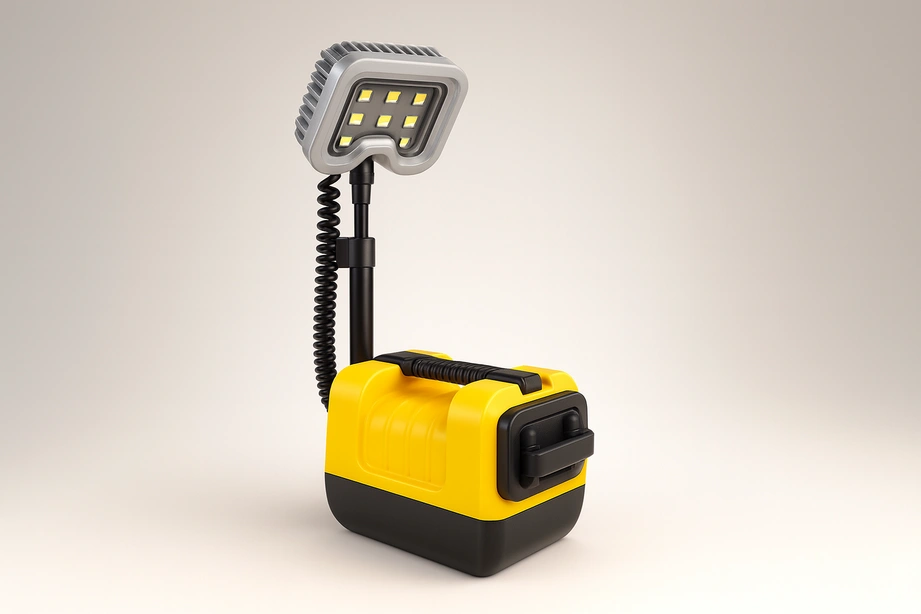

The EX-MV01 is a lightweight, portable LED safety light for hazardous locations—engineered for Class I Division 1 and Division 2 tasks across maintenance, inspection, tank cleaning, confined spaces, and emergency use. A deployable mast with 360° rotation puts light exactly where it’s needed; compact design and battery power make it ideal for temporary and hard-to-reach areas.
Certified: UL844 C1D1 (Groups A–D, T4), Class I Zone 0/ATEX/IECEx Ex ia IIC T4 Ga.
Output & Modes: High 1,600 lm / Low ≥500 lm / Flashing; CCT 4500–5000 K.
Runtime: Up to 10 hours (battery indicator + low-level warning).
Optics: 125° wide beam for close-range tasks.
Mast & Aim: Deployable mast with 360° rotation; multiple positions.
Rugged Build: IP66; aluminum alloy head, heavy-duty plastic body; 15.4 lb for easy carry.
Power & Charging: 10.8 V / 9 Ah Ni-MH battery; rated 5–19.5 W; 100–277 VAC charger.
Environment: Valid from –20°C to 40°C; IP66 dust/water protection.
Model | Modes | Output and runtime | Beam and CCT | Power and battery | Size and weight | Ratings and certifications |
---|---|---|---|---|---|---|
EX-MV01 | High, Low, Flashing | 1600 lm high, ≥500 lm work, up to 10 h | 125°, 4500 to 5000 K | 10.8 V 9 Ah Ni-MH, rated 5 to 19.5 W | 386×210×237 mm, deploy height 567 to 825 mm, 7 kg | IP66, -20 to +40°C, UL844 C1D1 Groups A B C D T4, Class I Zone 0 AEx ia IIC T4 Ga, Ex ia IIC T4 Ga |
Tank cleaning & vessel entry (confined spaces)
Turnarounds, outages, and shutdowns where temporary portable lighting is required
Inspection & maintenance in refineries, chemical plants, power, and process units
Emergency response and spill remediation in hazardous areas
Skids, pump rooms, compressor stations, and pipeline work needing quick, compliant light
UL844 Hazardous Locations: Class I, Division 1, Groups A–D, T4.
ATEX / IECEx: Ex ia IIC T4 Ga (intrinsically safe); Class I, Zone 0 (AEx ia IIC T4 Ga).
Ingress Protection: IP66 dust- and water-resistant enclosure.
Operating Envelope: –20°C to 40°C; beam 125° for close-range work.
Use of C1D1-listed equipment is typically acceptable in C1D2 areas; confirm with your AHJ and the job specification.
Yes, its UL844 C1D1 rating covers Groups A, B, C, and D, which includes hydrogen.
EX-MV01 carries UL844 C1D1 and ATEX/IECEx Ex ia markings. In practice, it’s a portable, intrinsically safe work light designed for use in explosive atmospheres where ignition control is critical.
The unit provides up to 10 hours of run time, with a full-time battery indicator and low-battery warning. Actual duration depends on mode (High vs. Low).
Yes, the deployable mast supports 360° rotation and multiple positions for precise aiming.
Need a certified portable C1D1 or C1D2 work light today? Our experts match EX MV01 configurations to your job spec, confined space needs, and runtime targets, with UL844, ATEX, IECEx compliance and fast shipping nationwide.
