IR3 LED C1D2 Relight for Natural Gas Pump Station
IR3 C1D2 linears brightened valve corridors and bays, improving inspections at a WV pump station.
IR3 LED C1D2 Pump Station Lighting, West Virginia
Specified here
Related Products, IR3 C1D2 Pump Station Lighting
Fixture families specified for this project. Open a category page for the full lineup and configuration data.

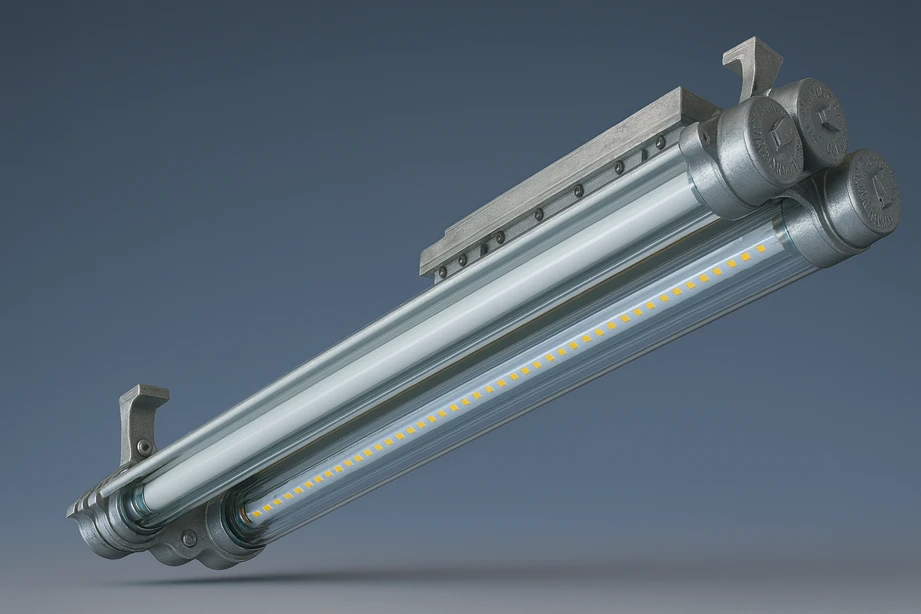

IR4 Explosion Proof Linear LED, Process Areas
C1D1 compliant linear for stricter rooms, temperature code selections, rugged housing.

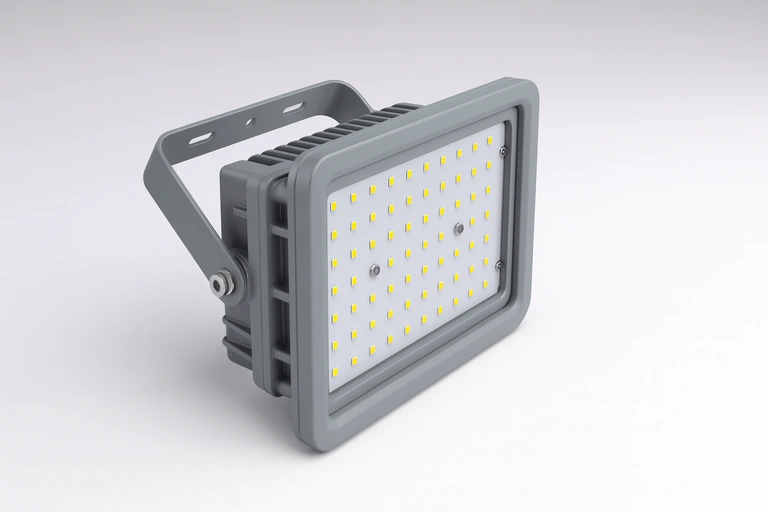

EXA C1D2 LED Flood, Task Aiming
Directional floods to open panels and valves, reduced instrument glare.
Project brief
At a natural gas pump station, we replaced aging fixtures with sealed industrial linears configured for valve corridors and service bays. Using existing circuits kept installation efficient and tidy. The relight reduced dark spots at critical controls, improved camera coverage, and cut service interruptions from failed lamps and ballasts.

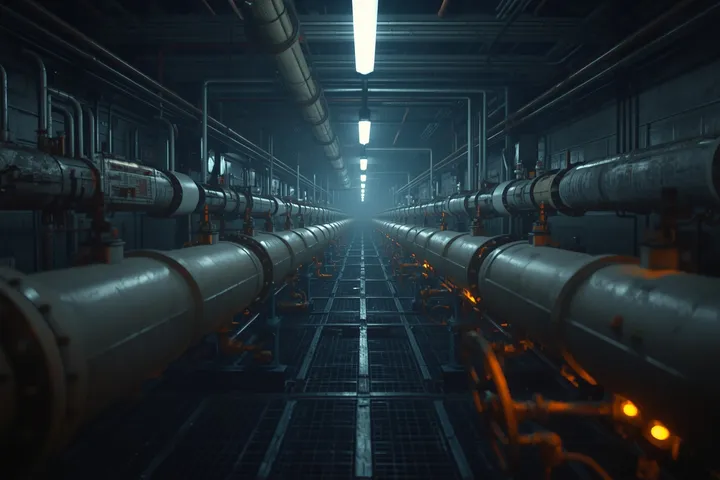

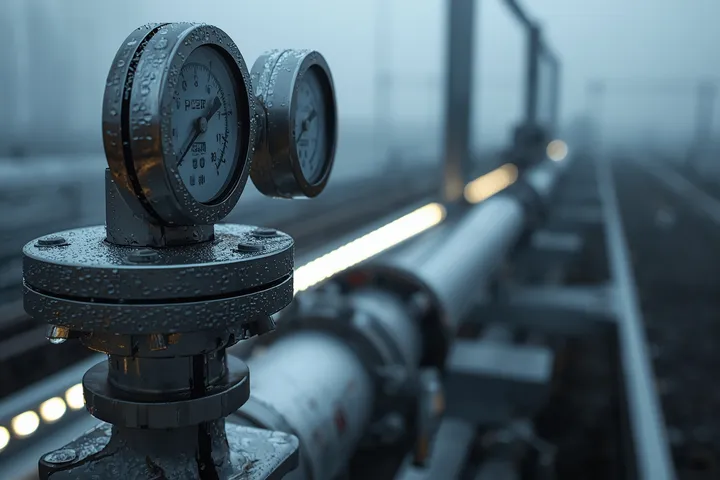

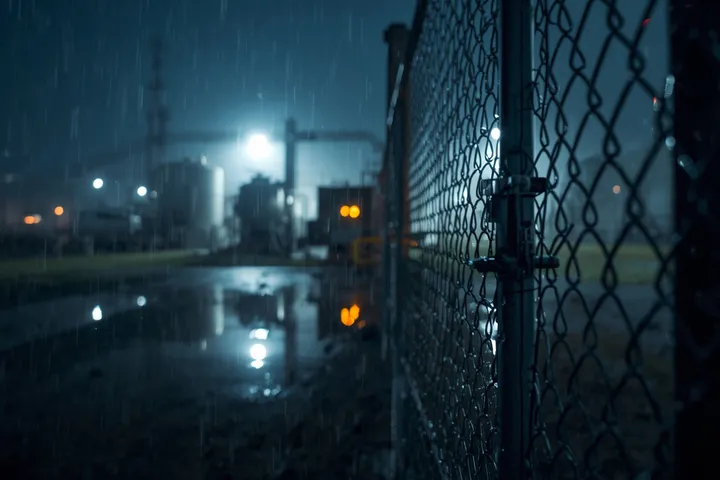

Gallery, IR3 LED C1D2 Pump Station Relight, West Virginia
On site
Project Overview, IR3 LED C1D2 Pump Station Relight, West Virginia
Aging fixtures created dark zones at control panels and corridors. IR3 linears with targeted distributions brightened valve corridors and service bays, tied into existing circuits for a clean retrofit. The upgrade improved inspection speed, camera coverage, and day to day reliability with less maintenance.

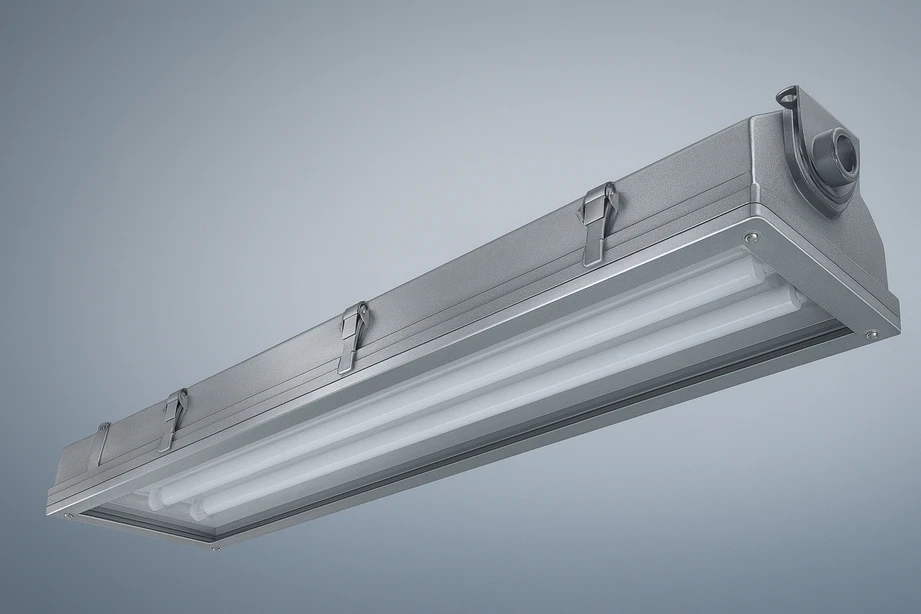

Primary product: IR3 Hazardous Location Linear LED
Upgraded linears brightened valve corridors and service bays while keeping installation on existing circuits.
Shadow reduction: Control panels and isolation valves now read clearly during rounds and camera review.
Reliability: Uniform fixtures simplified spares and lowered unscheduled maintenance.
Inspection efficiency: Faster checks through corridors and better video coverage improved documentation and response.
Lighting meets midstream requirements for gas vapors, electrical safety, and uptime.
UL844 compliant, Class I Division 2 classification for pump environments.
Appropriate T codes chosen for valve corridors and service bays.
Sealed conduit and entries to limit moisture and airborne contamination.
Consistent driver specifications for long duty cycles and reliability.
Common questions
Frequently asked questions
These answers clarify the selection process without replacing project-specific documentation.
What problem did the pump station relight solve?
Aging fixtures had created dark zones at control panels and corridors. IR3 linears with targeted distributions brightened valve corridors and service bays.
Did the retrofit require new circuits?
No — the IR3 linears tied into existing circuits, which kept the installation efficient and tidy.
What improved day to day?
Inspection speed, camera coverage and reliability, with fewer service interruptions from failed lamps and ballasts.
