Product family · Emergency
HPRL high-performance remote fixtures.
Remote emergency heads for areas where the battery cannot be located, documented in one and two head configurations from 6 W to 15 W.
HPRL configurations
Every documented HPRL configuration.

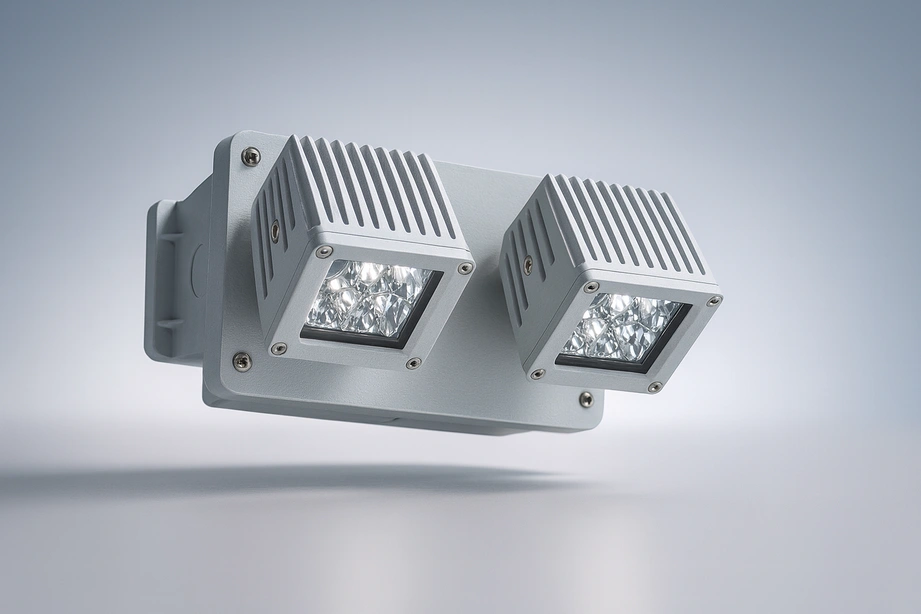

One family, every configuration: the fixture is shown at full size, with each available configuration listed below and specified line by line in the ordering table.
Ordering data
Every documented HPRL configuration.
All 6 configurations of the family are specified on this page, so you can compare wattages, outputs and options side by side.
| Model | Heads | LED head | Output | Input | Operating temp | Key ratings |
|---|---|---|---|---|---|---|
| HPRL L6 | 1 | 6 W | 565 lm | 12 to 24 V DC | -40 to 131 °F | NEMA 4X, UL 924 |
| HPRL L10 | 1 | 10 W | 1000 lm | 12 to 24 V DC | -40 to 131 °F | NEMA 4X, UL 924 |
| HPRL L15 | 1 | 15 W | 1300 lm | 12 to 24 V DC | -40 to 131 °F | NEMA 4X, UL 924 |
| HPRLD L6 | 2 | 6 W each | 565 lm each | 12 to 24 V DC | -40 to 131 °F | NEMA 4X, UL 924 |
| HPRLD L10 | 2 | 10 W each | 1000 lm each | 12 to 24 V DC | -40 to 131 °F | NEMA 4X, UL 924 |
| HPRLD L15 | 2 | 15 W each | 1300 lm each | 12 to 24 V DC | -40 to 131 °F | NEMA 4X, UL 924 |
Confirm the exact configuration against the current manufacturer specification sheet before approval or purchase.
Engineering reference
Selecting within the HPRL family.
Confirm the battery unit first, since these heads draw from it and its capacity determines how many can be supported. Then head count and output per position. The documented −40 to 131 °F range is the widest in the emergency range, which is often why this family is chosen.
HPRL solves a placement problem rather than a lighting one. Where egress illumination is required but a battery unit cannot be mounted — restricted ceilings, washdown zones, classified boundaries — remote heads run from a separate unit over low-voltage wiring.
Common questions
Useful answers before the next step.
These answers clarify the selection process without replacing project-specific documentation.
What powers these fixtures?
A separate battery unit over 12 to 24 V DC wiring. The unit's capacity at the required duration determines how many remote heads it can support, so specify the unit and the heads together.
What operating range is documented?
−40 to 131 °F, the widest in the emergency range, with NEMA 4X construction and UL 924 listing.
