EPC-B B-Series hazardous-location LED luminaires.

Four housing groups cover selectable 40–300 W configurations and fixed 350–550 W B4 models. Match housing, driver, temperature code and mounting path before ordering.

Request a quote Call (866) 860-6399

Product-reference visualization · confirm housing at quote

B-Series family rail

One platform. Four engineering envelopes.

B2, B5, BX and B4 are luminaire housings. A1, B1, C1, D1 and I1 are mounting-method codes—not additional luminaires.

Swipe or scroll to compare all four housings and ratings.

B23-step selectable

40 / 60 / 80 W

Nominal output: 6,400–12,800 lm
Body: B2 housing group

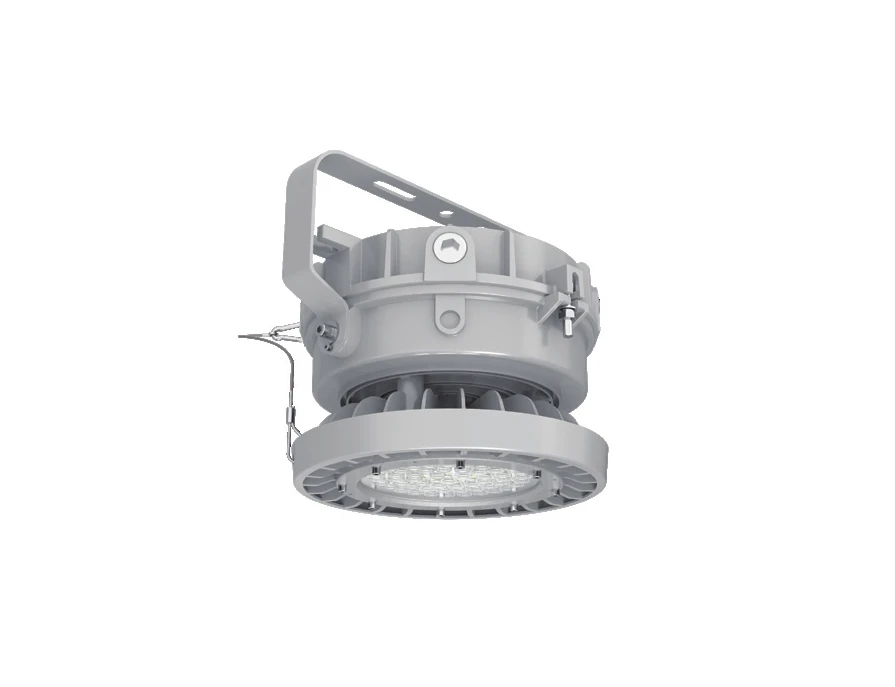

B53-step selectable

60 / 80 / 100 W

Nominal output: 9,600–16,000 lm
Body: B5 housing group

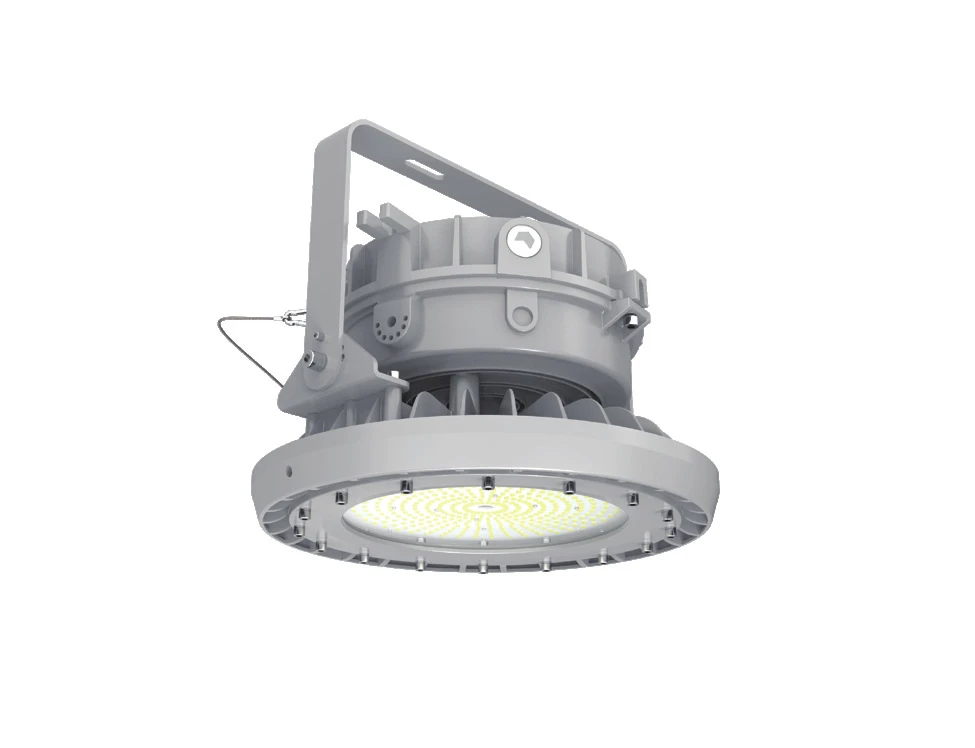

BX3-step selectable

120 / 150 / 200 W

Nominal output: 19,200–32,000 lm
Body: BX housing group

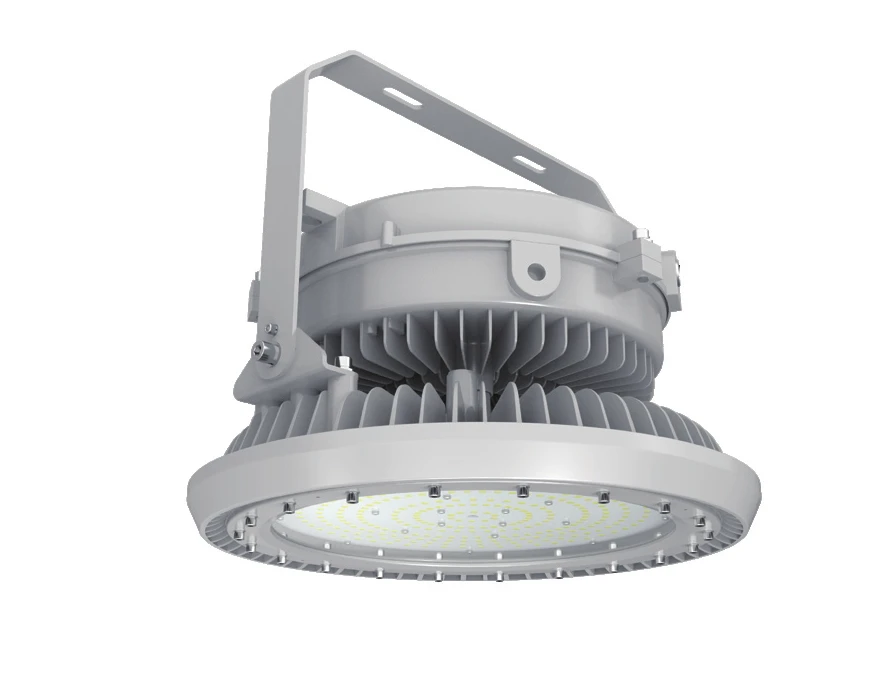

B4Selectable plus fixed outputs

200–550 W

Nominal output: 33,000–49,500 lm at 200–300 W
Body: B4 housing group

UL 844 · C1D2 A–D
C2D1 E/F/G
C2D2 F/G
Class III
UL 1598 Wet
UL 1598A Marine Outside
ABS
NEMA 4X
IP66
IK08 · IK10 with guard

Housing selection

Select the housing before the mounting method.

Four housing groups span selectable 40–300 W configurations and fixed B4 configurations through 550 W.

Scroll the matrix horizontally to read every published specification column.

EPC-B housing selection matrix
Housing	Control	Documented wattages	Nominal efficacy	Nominal lumen range	Input voltage	Packing weight
B2	Selectable	40 / 60 / 80 W	160 lm/W	6,400–12,800 lm	120–347 VAC; 277–480 VAC	6.4 / 7.1 kg net/gross
B5	Selectable	60 / 80 / 100 W	160 lm/W	9,600–16,000 lm	120–277 VAC; 277–480 VAC	7.3 / 8.2 kg net/gross
BX	Selectable	120 / 150 / 200 W	160 lm/W	19,200–32,000 lm	120–277 VAC; 277–480 VAC	11.4 / 12.4 kg net/gross
B4	Selectable 200–300 W; fixed 350–550 W	200 / 250 / 300 / 350 / 400 / 500 / 550 W	Up to 165 lm/W for selectable models	33,000–49,500 lm at 200–300 W; request 350–550 W photometrics	120–277 VAC; 277–480 VAC (driver varies)	17.0 / 23.5 kg net/gross

For fixed-output B4 models, request the photometric package for the selected wattage and application.

Electrical map

Driver, voltage band and housing travel together.

Match the housing and wattage settings to the required input-voltage range. Maes Lighting will confirm the final driver and catalog number during specification.

Scroll the driver map horizontally to compare both voltage ranges.

EPC-B driver and input-voltage map
Housing / output	Low-voltage driver	277–480 VAC driver	Selection note
B2 · 40/60/80 W	FD-100T-054D · 120–347 VAC	VA-100V-054B	Three selectable settings
B5 · 60/80/100 W	SS-100VA-56BHL · 120–277 VAC	VA-100V-054B	Three selectable settings
BX · 120/150/200 W	XLG-240-H-ABL · 120–277 VAC	VA-240V-056B	Three selectable settings
B4 · 200/250/300 W	ELGC-300-H-AB · 120–277 VAC	HVG-480-48AB	Three selectable settings
B4 · 350 W	SS-500VP	HVG-480-48AB	Fixed output
B4 · 400/500/550 W	SS-600VP-56BH	HVG-650-48AB	Fixed output

Temperature code

Ambient limits belong to a housing and voltage row.

T-code and maximum ambient vary across the B-Series. Match the selected row to the site classification, then confirm the exact marking on the ordered luminaire.

Scroll horizontally to compare every documented thermal row.

Documented EPC-B temperature-code rows
Housing / output	Input	Temperature code	Documented ambient
B2	Both voltage bands	T4A	−40 to +55°C
B5	120–277 VAC	T5	−40 to +60°C
B5	277–480 VAC	T5	−40 to +55°C
BX	Both voltage bands	T4A	−40 to +50°C
B4 · 300/350 W	Both voltage bands	T5	−40 to +55°C
B4 · 400 W	120–277 / 277–480 VAC	T4A	−40 to +55°C / +50°C
B4 · 500 W	Both voltage bands	T4A	−40 to +50°C
B4 · 550 W	Both voltage bands	T4A	−40 to +40°C

Performance reference

Review tested configurations and controls.

Published test configurations connect each selectable housing to its wattage settings, driver and supply voltage.

EPC-B tested configurations
Housing	Catalog identity	Settings tested	Driver and supply
B2	EPC80WB2D50D120PMT10T	80 / 60 / 40 W	FD-100T-054D · 120 VAC
B5	EPC100WB5D50D120V10T	100 / 80 / 60 W	SS-100VA-56BHL · 120 VAC
BX	EPC200WBXD50D120X24T	200 / 150 / 120 W	XLG-240-H-ABL · 120 VAC
B4	EPC300WB4D50D120EPG30T	300 / 250 / 200 W	ELGC-300-H-AB · 120 VAC

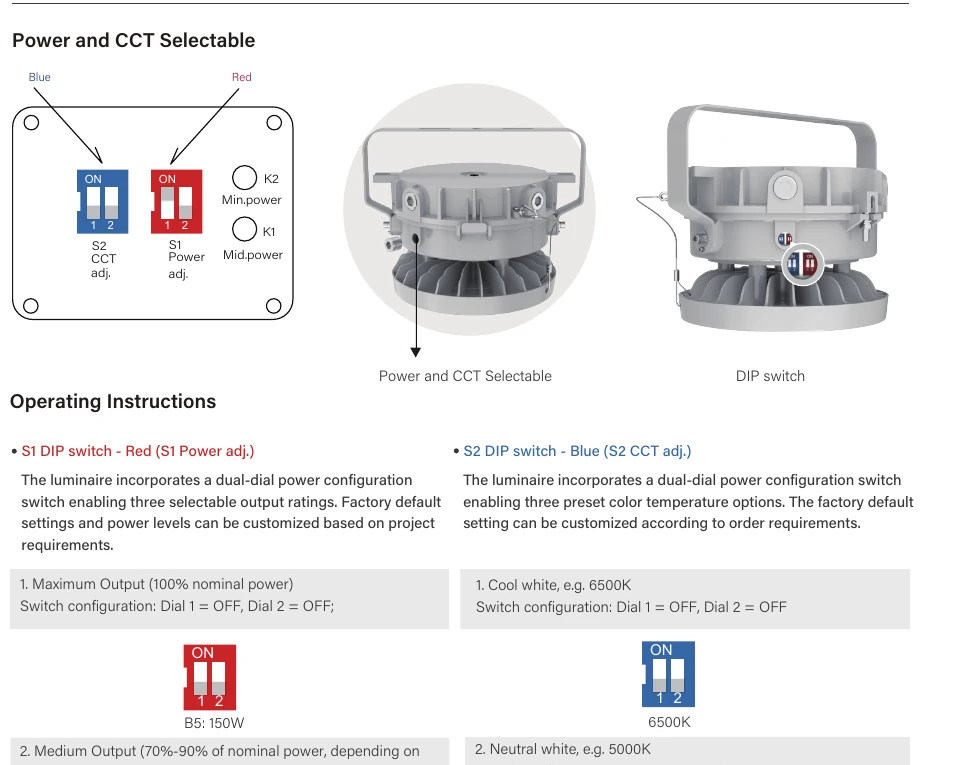

EPC-B selectable-wattage DIP-switch diagram — **Power and CCT selection**Set the controls for the selected housing and driver. Maes Lighting can confirm project-specific setup requirements.

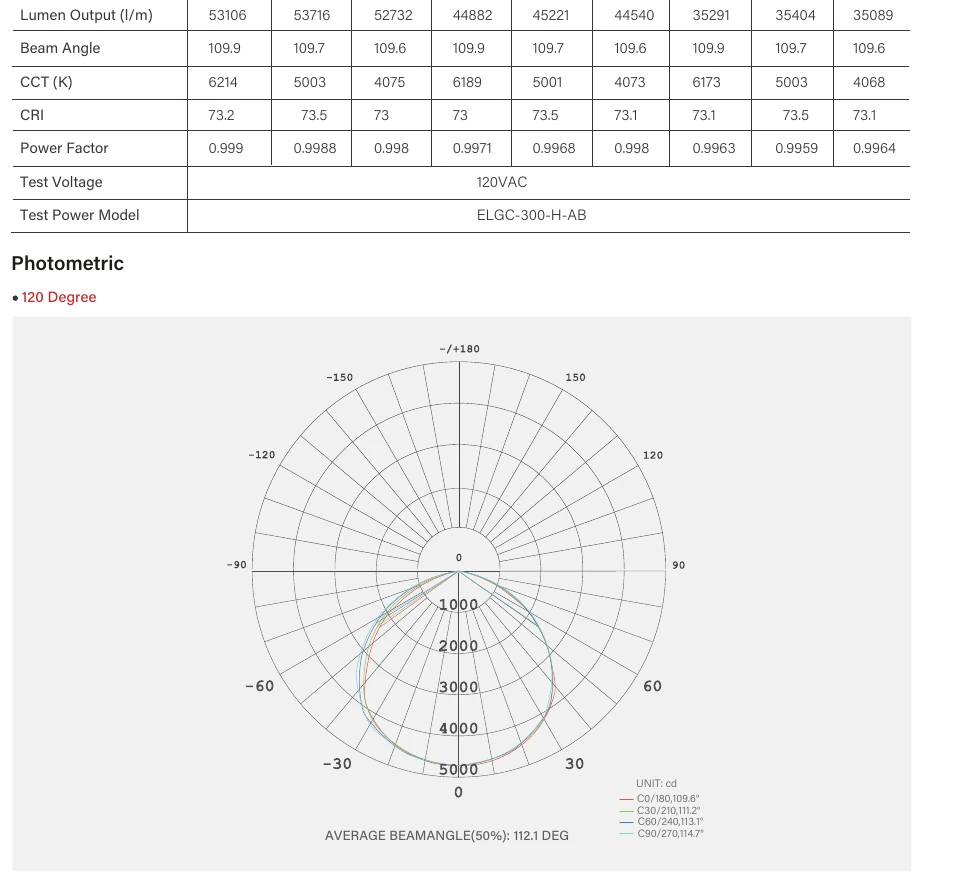

EPC-B polar distribution diagram marked 120 degrees — **120° distribution**Request the applicable photometric file for the exact housing, wattage and project layout.

Mechanical reference

Compare every housing dimension.

Open the engineering drawing at full size to review clearances, cable entry and hardware for the selected housing.

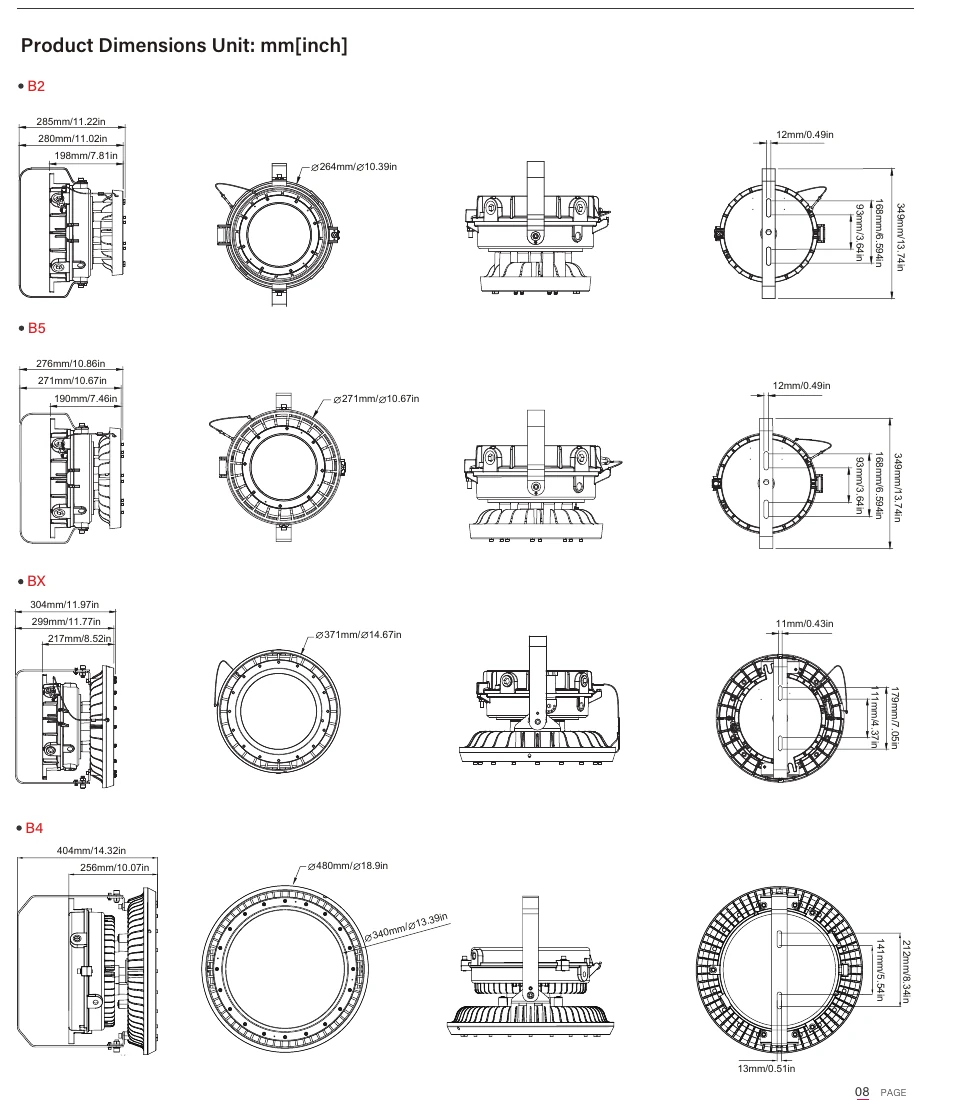

EPC-B B2, B5, BX and B4 dimension drawings — **B2, B5, BX and B4 dimensions**Open the complete drawing to compare all four housing envelopes and plan installation clearances.

Mounting path

Five method codes. One luminaire family.

A1 ceiling, B1 U-bracket, C1 wall, D1 25-degree pole and I1 pendant describe installation methods. They are not separate EPC-B luminaires.

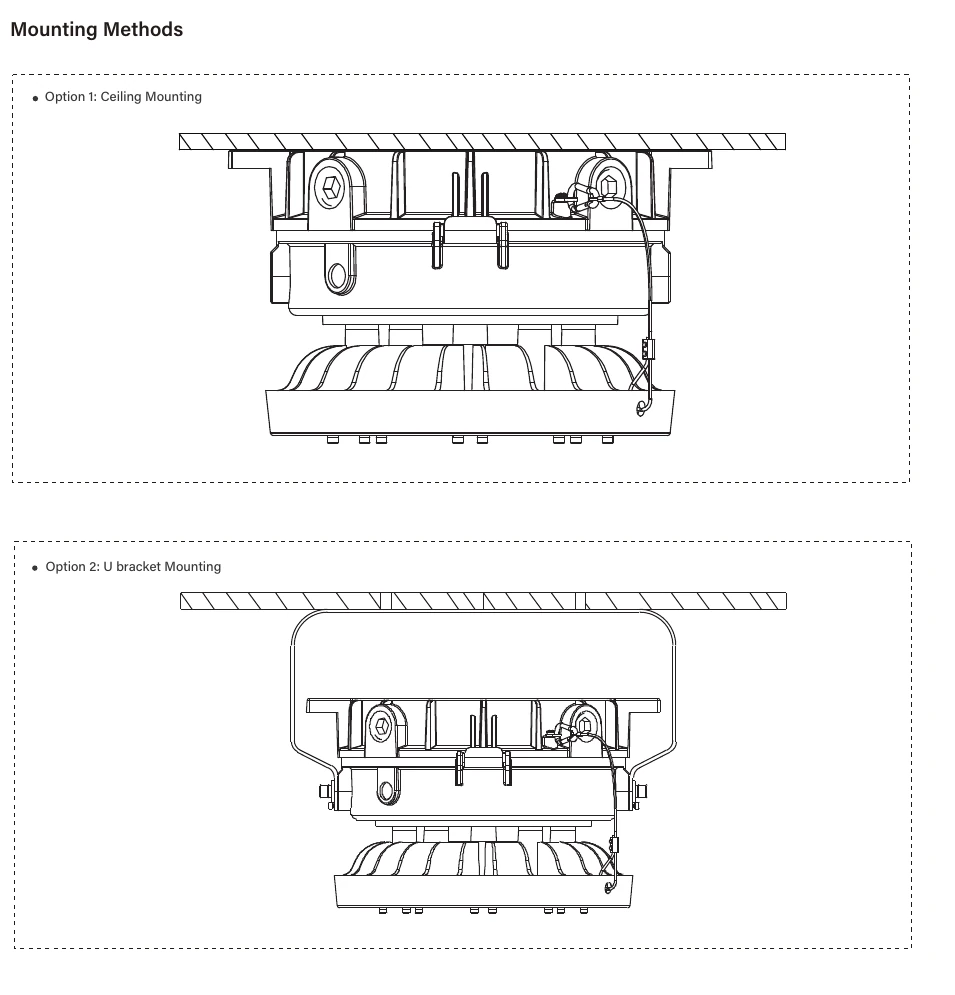

EPC-B A1 ceiling and B1 U-bracket mounting diagrams — **A1 ceiling and B1 U-bracket methods**A1 and B1 are mounting-method codes. Confirm the selected housing, bracket, entry direction and installation clearances.

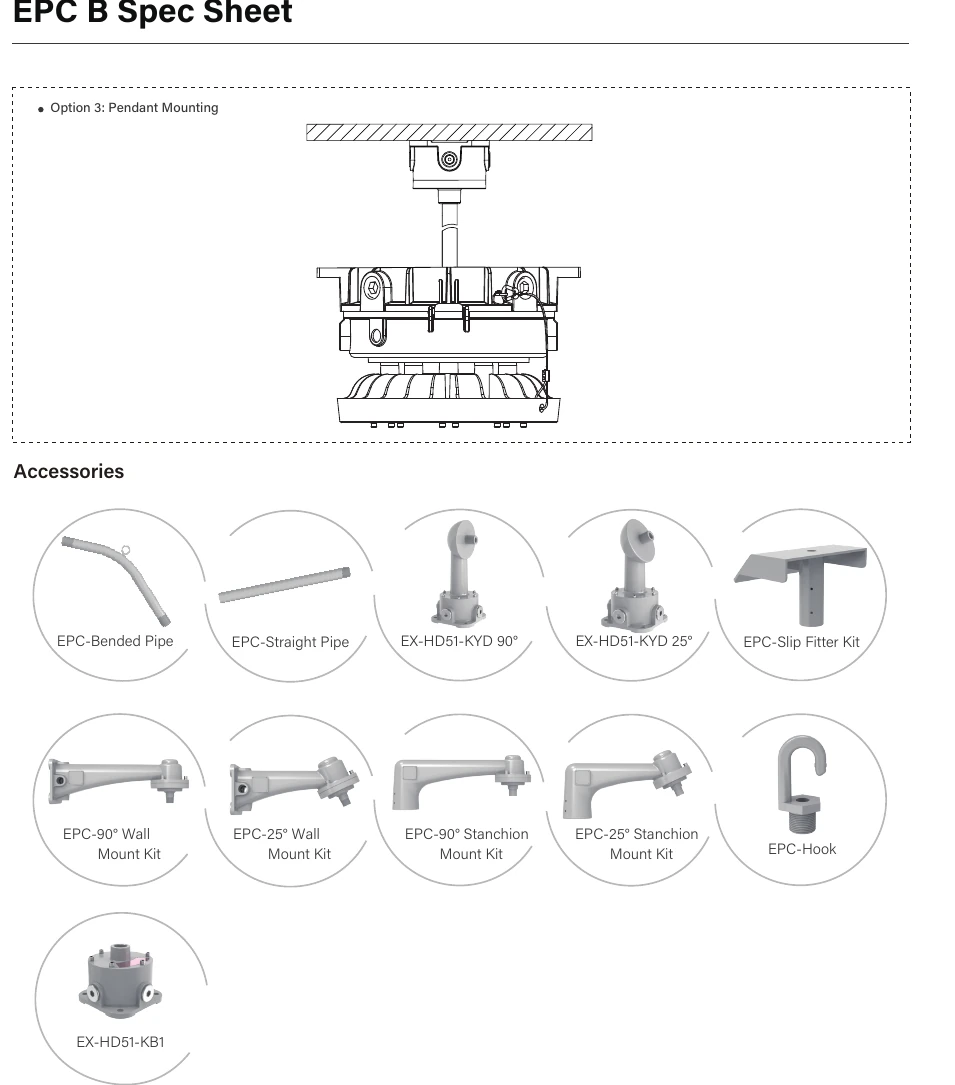

EPC-B wall, pole and pendant mounting diagrams with accessories — **C1, D1 and I1 methods with accessories**C1 wall, D1 25-degree pole and I1 pendant are installation paths, not separate luminaires. Available accessories are shown for configuration planning.

Family details

Build the right EPC-B configuration.

Listings: UL 844 Class I Div 2 Groups A–D; Class II Div 1 Groups E,F,G; Class II Div 2 Groups F,G; Class III; UL 1598 Wet; UL 1598A Marine Outside; ABS
Environmental: IP66; IK08 or IK10 with wire guard; NEMA 4X; 3G vibration; 500-hour salt-spray test
Optical: 4000K / 5000K / 6500K selectable; CRI >70; 120° beam; up to 165 lm/W nominal by housing
Electrical: 50/60 Hz; 1–10 V dimming uses a separate DC circuit; input and driver vary by housing
Construction: Die-cast aluminum housing, clear flat glass, silicone gasket and stainless steel 304 hardware
Mounting: A1 ceiling, B1 U-bracket, C1 wall, D1 25° pole and I1 pendant; 3/4 in NPT
Emergency: Optional on B5 and BX; minimum 90 minutes; confirm complete configuration
Warranty: Five-year fixture warranty; three-year battery-backup warranty

Common questions

Frequently asked questions

These answers clarify the selection process without replacing project-specific documentation.

What hazardous-location listings are available for EPC-B?

EPC-B is listed for UL 844 Class I Division 2 Groups A-D, Class II Division 1 Groups E-F-G, Class II Division 2 Groups F-G and Class III, plus UL 1598 Wet, UL 1598A Marine Outside Type, ABS, NEMA 4X, IP66 and 3G vibration.

Which EPC-B wattages are selectable?

B2 offers 40/60/80 W, B5 offers 60/80/100 W, BX offers 120/150/200 W and B4 offers 200/250/300 W. B4 is also available in fixed 350, 400, 500 and 550 W configurations.

How do I select the right EPC-B housing?

Start with the required wattage and lumen package, then match the voltage range, ambient rating, temperature code and mounting method. Maes Lighting can prepare the complete catalog number for the project.

Can Maes Lighting provide photometric files?

Yes. Request the photometric package for the selected housing, wattage and optical configuration during specification review.

Are A1, B1, C1, D1 and I1 separate EPC-B luminaires?

No. They identify ceiling, U-bracket, wall, 25-degree pole and pendant mounting methods for the EPC-B family.
