Product family · explosion-proof-lighting

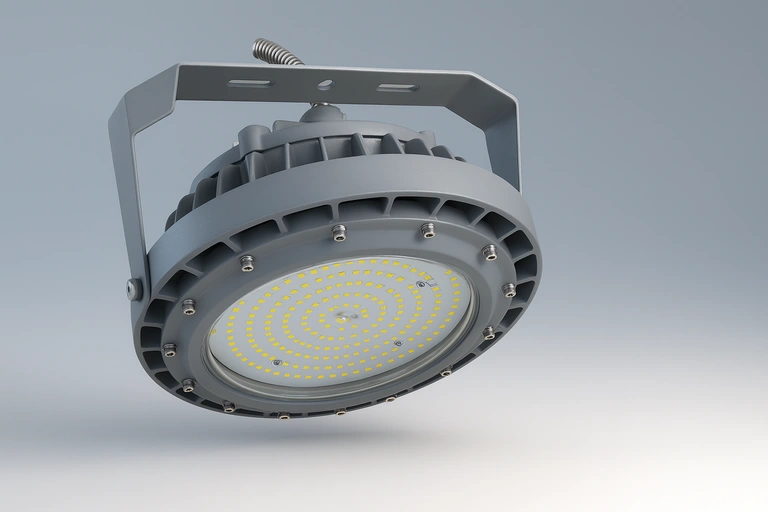

EX-C Series explosion proof LED flood light.
A Class I Division 1 flood carrying ATEX and IECEx markings alongside its North American listings, documented from 20 W to 300 W.
EX-C Series selection guide
EX-C Series models and options.
Compare the documented models and options below. A family name or model reference may need additional selections before it becomes a complete product order code.
Specification comparison
EX-C Series models and specifications.
Compare 7 documented specification rows. A row may describe a model, a model group or several selectable options; it does not necessarily represent one complete order code.
On smaller screens, scroll the table horizontally to see every specification.
| Model | W | Catalog code | Voltage | Typical lumens | Ratings |
|---|---|---|---|---|---|
| EX-20W | 20 | EX-20W C2YZDA | 100 to 277 V, 200 to 480 V | N/A | ATEX IIC Gb Ex db IIC T6 Gb, IIB T6 Gb, IIIC T80 Db, IECEx Ex db IIC T6 Gb, IP66 |
| EX-60W | 60 | EX-60W C2YZDA | 100 to 277 V, 200 to 480 V | N/A | ATEX IIC Gb Ex db IIC T6 Gb, IIB T6 Gb, IIIC T80 Db, IECEx Ex db IIC T6 Gb, IP66 |
| EX-80W | 80 | EX-80W C2YZDA | 100 to 277 V, 200 to 480 V | N/A | ATEX IIC Gb Ex db IIC T6 Gb, IIB T6 Gb, IIIC T80 Db, IECEx Ex db IIC T6 Gb, IP66 |
| EX-100W | 100 | EX-100W CYZDA | 100 to 277 V, 200 to 480 V | 14,000 | ATEX IIC Gb Ex db IIC T6 Gb, IIB T6 Gb, IIIC T80 Db, IECEx Ex db IIC T6 Gb, IP66 |
| EX-150W | 150 | EX-150W CYZDA | 100 to 277 V, 200 to 480 V | N/A | ATEX IIC Gb Ex db IIC T6 Gb, IIB T6 Gb, IIIC T80 Db, IECEx Ex db IIC T6 Gb, IP66 |
| EX-200W | 200 | EX-200W C3YZDA | 100 to 277 V, 200 to 480 V | 28,000 | ATEX IIC Gb Ex db IIC T6 Gb, IIB T6 Gb, IIIC T80 Db, IECEx Ex db IIC T6 Gb, IP66 |
| EX-300W | 300 | EX-300W C3YZDA | 100 to 277 V, 200 to 480 V | 42,000 | ATEX IIC Gb Ex db IIC T6 Gb, IIB T6 Gb, IIIC T80 Db, IECEx Ex db IIC T6 Gb, IP66 |
Confirm the exact configuration against the current manufacturer specification sheet before approval or purchase.
Engineering reference
Choosing the right EX-C Series configuration.
Confirm which marking scheme the project is specified against, since that is the reason to choose this family over EPC-A. Then wattage and voltage band. The published markings include both IIC and IIB gas groups — confirm which applies.
EX-C is the internationally-marked flood in the range. Where EPC-A carries UL 844 Class I Division 2 Groups A–D, EX-C adds ATEX and IECEx gas and dust markings, which is what makes it the family for projects specified against European or IEC standards.
Common questions
Frequently asked questions
These answers clarify the selection process without replacing project-specific documentation.
Are lumen figures published for every configuration?
No. The manufacturer publishes lumen figures for three of the seven configurations; the others are listed without a typical-lumens value. Ask us for current photometrics on any configuration before you specify it.
What international markings are documented?
ATEX Ex db IIC T6 Gb and IIB T6 Gb for gas, IIIC T80 Db for dust, plus IECEx Ex db IIC T6 Gb, with IP66. Confirm the marking that applies to the ordered configuration.
