EXA Series hazardous location flood light.
A hazardous-location flood documented from 20 W to 200 W in eight steps, each with four beam options and full catalog codes.
EXA Series configurations
Every documented EXA Series configuration.

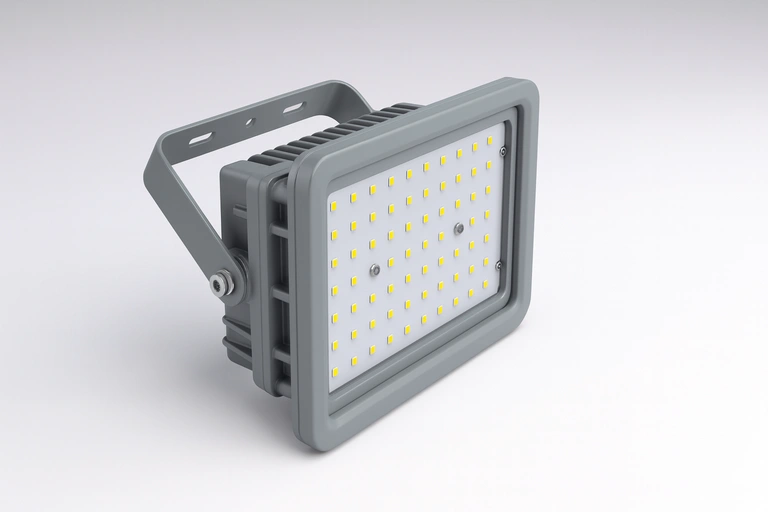

One family, every configuration: the fixture is shown at full size, with each available configuration listed below and specified line by line in the ordering table.
Ordering data
Every documented EXA Series configuration.
All 8 configurations of the family are specified on this page, so you can compare wattages, outputs and options side by side.
| Model | W | Catalog code | Beam options | CCT | Ratings |
|---|---|---|---|---|---|
| EX-20W | 20 | EX-20W A2N50D120 | D40, D60, D90, D120 | 5000 K | UL844 C1D2 A, B, C, D, C2D1 E, F, G, C2D2 E, F, G, Class III, IP66, IK10 |
| EX-40W | 40 | EX-40W A2N50D120 | D40, D60, D90, D120 | 5000 K | UL844 C1D2 A, B, C, D, C2D1 E, F, G, C2D2 E, F, G, Class III, IP66, IK10 |
| EX-60W | 60 | EX-60W A2N50D120 | D40, D60, D90, D120 | 5000 K | UL844 C1D2 A, B, C, D, C2D1 E, F, G, C2D2 E, F, G, Class III, IP66, IK10 |
| EX-80W | 80 | EX-80W A2N50D120 | D40, D60, D90, D120 | 5000 K | UL844 C1D2 A, B, C, D, C2D1 E, F, G, C2D2 E, F, G, Class III, IP66, IK10 |
| EX-100W | 100 | EX-100W A2N50D120 | D40, D60, D90, D120 | 5000 K | UL844 C1D2 A, B, C, D, C2D1 E, F, G, C2D2 E, F, G, Class III, IP66, IK10 |
| EX-150W | 150 | EX-150W A3N50D120 | D40, D60, D90, D120 | 5000 K | UL844 C1D2 A, B, C, D, C2D1 E, F, G, C2D2 E, F, G, Class III, IP66, IK10 |
| EX-180W | 180 | EX-180W A3N50D120 | D40, D60, D90, D120 | 5000 K | UL844 C1D2 A, B, C, D, C2D1 E, F, G, C2D2 E, F, G, Class III, IP66, IK10 |
| EX-200W | 200 | EX-200W A3N50D120 | D40, D60, D90, D120 | 5000 K | UL844 C1D2 A, B, C, D, C2D1 E, F, G, C2D2 E, F, G, Class III, IP66, IK10 |
Confirm the exact configuration against the current manufacturer specification sheet before approval or purchase.
Engineering reference
Selecting within the EXA Series family.
Beam angle first — D40 through D120 change the throw substantially — then the wattage for the level at that distance. The published catalog code carries the beam and colour temperature, so confirm the whole code rather than the wattage alone.
EXA is the flood counterpart to the EXI linear: same classification territory, aimed output instead of area coverage. Every configuration carries its own full catalog code, which makes EXA the most directly orderable family in the range.
Common questions
Useful answers before the next step.
These answers clarify the selection process without replacing project-specific documentation.
Are lumen figures published for EXA?
No. The manufacturer's EXA table carries model, wattage, catalog code, beam, colour temperature and ratings, but publishes no lumen figures. Ask us for current photometrics on any EXA configuration before you specify.
What do the D40 to D120 codes mean?
Beam angle: 40°, 60°, 90° and 120°. They form part of the catalog code, so the beam is fixed at order rather than adjustable on site.
