Product family · explosion-proof-lighting

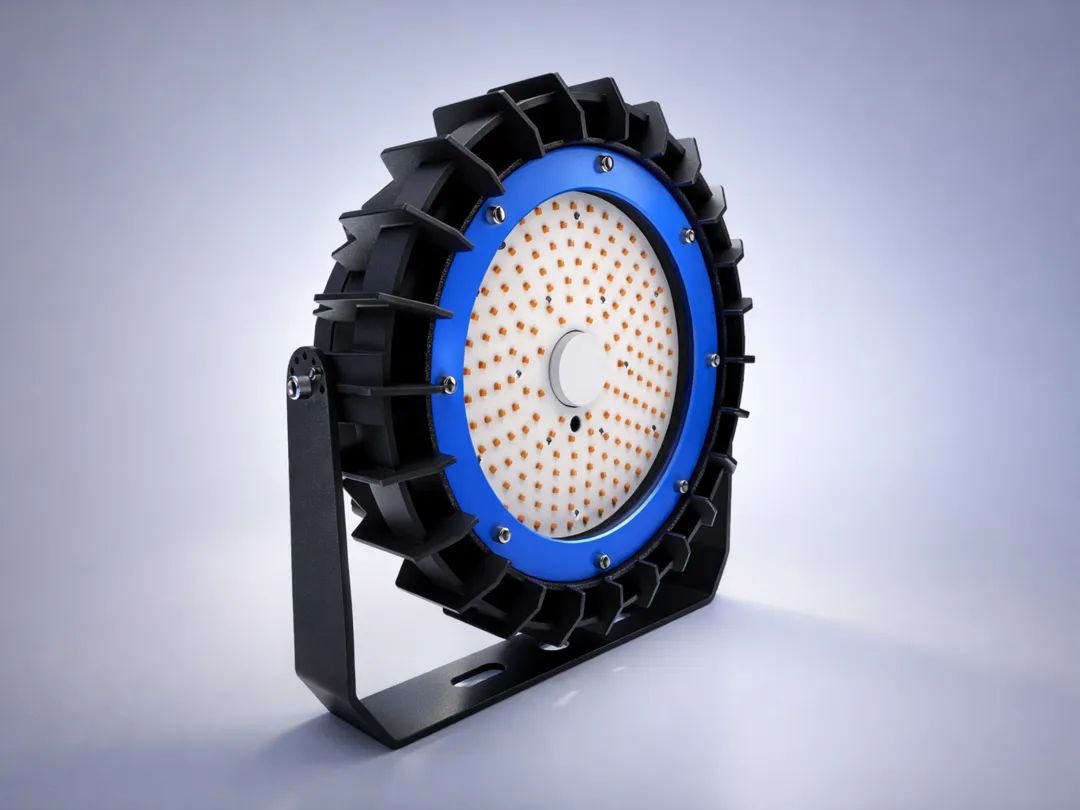

FYS and FYD Series explosion proof LED light.
Two round housings covering 20 W to 200 W, documented as FYS for the lower range and FYD for the higher.
FYS / FYD selection guide
FYS / FYD models and options.
Compare the documented models and options below. A family name or model reference may need additional selections before it becomes a complete product order code.
Specification comparison
FYS / FYD models and specifications.
Compare 2 documented specification rows. A row may describe a model, a model group or several selectable options; it does not necessarily represent one complete order code.
On smaller screens, scroll the table horizontally to see every specification.
| Model group | Models included | Power range (W) | Lumen range (lm) | Housing Size | Key specs |
|---|---|---|---|---|---|
| FYS | FYS-20W, FYS-40W, FYS-50W, FYS-60W, FYS-70W, FYS-80W | 20 to 80W | 3,000 to 12,000 lm | φ308mm x 166mm | 100 to 277VAC / 200 to 480VAC; IP66, IK10; Class I Div 2 (A-D), Class II Div 2 (F,G), Class III |
| FYD | FYD-100W, FYD-120W, FYD-130W, FYD-140W, FYD-160W, FYD-180W, FYD-200W | 100 to 200W | 15,000 to 30,000 lm | φ358mm x 157.4mm | 100 to 277VAC / 200 to 480VAC; IP66, IK10; Class I Div 2 (A-D), Class II Div 2 (F,G), Class III |
Confirm the exact configuration against the current manufacturer specification sheet before approval or purchase.
Engineering reference
Choosing the right FYS / FYD configuration.
Output decides the body: below 80 W the FYS housing is sufficient, above 100 W the FYD is required. Confirm the physical envelope, since the two differ in both diameter and depth, and confirm the voltage band.
FYS and FYD are one platform in two body sizes: FYS at φ308 mm covers 20 to 80 W, FYD at φ358 mm covers 100 to 200 W. Keeping them on one page reflects how they are specified — a facility standardises on the platform and picks the body by output.
Common questions
Frequently asked questions
These answers clarify the selection process without replacing project-specific documentation.
What is the difference between FYS and FYD?
Housing size and output range. FYS is φ308 × 166 mm covering 20 to 80 W at 3,000 to 12,000 lumens; FYD is φ358 × 157.4 mm covering 100 to 200 W at 15,000 to 30,000 lumens.
What classification is documented?
Class I Division 2 Groups A to D, Class II Division 2 Groups F and G, and Class III, with IP66 and IK10. Confirm against the specific catalog number.
