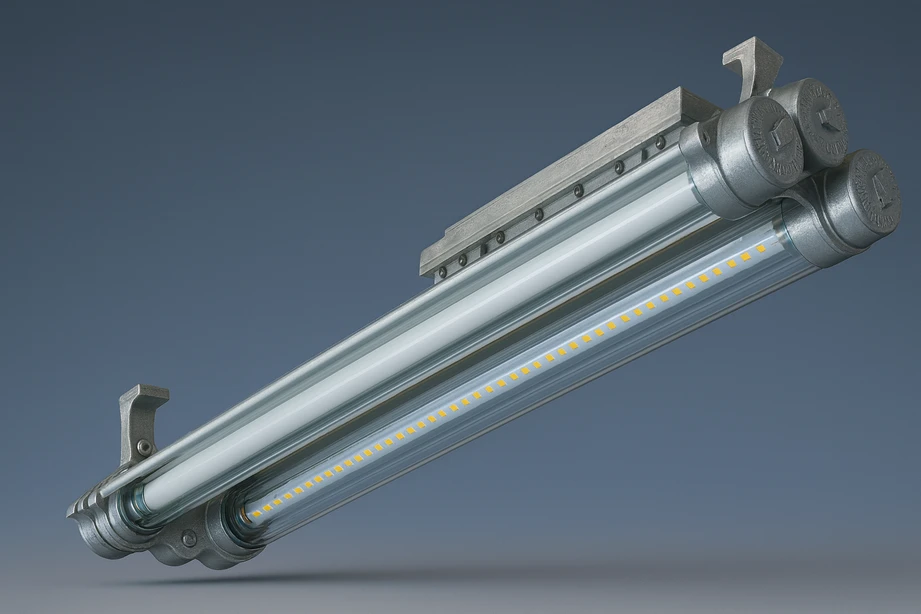

IR4 explosion proof linear LED, Class I Division 1.
A Class I Division 1 linear documented in 2 ft and 4 ft configurations at 40 W and 80 W, with selectable output and colour-temperature packages.
IR4 selection guide
IR4 models and options.
Compare the documented models and options below. A family name or model reference may need additional selections before it becomes a complete product order code.
Specification comparison
IR4 models and specifications.
Compare 2 documented specification rows. A row may describe a model, a model group or several selectable options; it does not necessarily represent one complete order code.
On smaller screens, scroll the table horizontally to see every specification.
| Configuration | Documented Model | Wattage | Typical Lumens | Voltage | Beam | CCT | Operating Temp |
|---|---|---|---|---|---|---|---|
| 2 ft / 2-strip | Not specified in source | 40 W | 5,000 or 10,000 lm | 120 to 277 V AC; 347 V / 480 V options | 120° | 4000 K or 5000 K | Confirm at quote |
| 4 ft / 2-strip | IR4-4-2-LED-UNV | 80 W | 10,000 or 13,000 lm | 120 to 277 V AC; 347 V / 480 V options | 120° | 4000 K or 5000 K | Confirm at quote |
Confirm the exact configuration against the current manufacturer specification sheet before approval or purchase.
Engineering reference
Choosing the right IR4 configuration.
Confirm the area is genuinely Division 1, then select the 2 ft or 4 ft body, output package and 4000 K or 5000 K colour temperature. Maes Lighting will confirm the complete catalog number and temperature range for the selected configuration.
IR4 is the Division 1 linear in the IR range. It offers 2 ft and 4 ft configurations, selectable 4000 K or 5000 K colour temperature, and lumen packages from 5,000 to 13,000 lumens. Where IR1 and IR3 serve Division 2 and marine work, IR4 is specified where the classification is continuous rather than abnormal-condition.
Common questions
Frequently asked questions
These answers clarify the selection process without replacing project-specific documentation.
How does IR4 differ from IR1 and IR3?
Classification. IR4 is documented for Class I Division 1, where IR1 and IR3 are Division 2 and marine. Division 1 covers areas where a hazardous atmosphere is present continuously or frequently rather than only under abnormal conditions.
What configurations and outputs are documented?
The 2 ft configuration is 40 W with 5,000 or 10,000 lumen options. The 4 ft configuration is 80 W with 10,000 or 13,000 lumen options. Both are documented at 4000 K or 5000 K with a 120° beam.
What operating range should be specified?
The operating range depends on the selected configuration. Share the project ambient conditions so Maes Lighting can confirm the applicable temperature range before ordering.
