Product family · Flood & Area

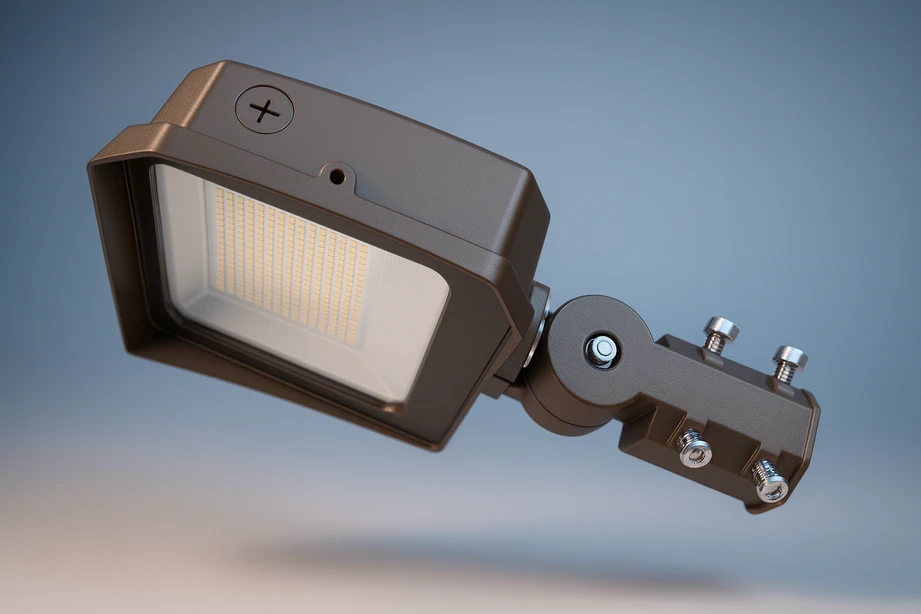

LS-FL tunable LED flood lights.
A flood light with both power and colour temperature selectable on the fixture, documented from 15 W to 150 W across three bodies.
LS-FL Tunable selection guide
LS-FL Tunable models and options.
Compare the documented models and options below. A family name or model reference may need additional selections before it becomes a complete product order code.
Specification comparison
LS-FL Tunable models and specifications.
Compare 3 documented specification rows. A row may describe a model, a model group or several selectable options; it does not necessarily represent one complete order code.
On smaller screens, scroll the table horizontally to see every specification.
| Model | Power Options, W | Lumens by Setting | Voltage | CCT Options | Beam | Operating Temp |
|---|---|---|---|---|---|---|
| LS3FL-35/20/15W | 15, 20, 35 | 2,025, 2,700, 4,725 lm | 120 to 277 V or 120 to 347 V AC | 3000 K, 4000 K, 5000 K | 120° | -20 to +60°C |
| LS3FL-80/60/35W | 35, 60, 80 | 4,725, 8,100, 10,800 lm | 120 to 277 V or 120 to 347 V AC | 3000 K, 4000 K, 5000 K | 120° | -20 to +60°C |
| LS3FL-150/120/100W | 100, 120, 150 | 13,500, 16,200, 20,250 lm | 120 to 277 V or 120 to 347 V AC | 3000 K, 4000 K, 5000 K | 120° | -20 to +60°C |
Confirm the exact configuration against the current manufacturer specification sheet before approval or purchase.
Engineering reference
Choosing the right LS-FL Tunable configuration.
Choose the body whose switchable steps bracket the target level, then set power and colour temperature on site. Confirm the voltage band, since 120 to 347 V is documented alongside 120 to 277 V.
Three physical fixtures cover a ten-to-one output range because each carries three switchable wattages. For projects specifying across many small positions — signage, entries, equipment bays — that reduces the part count substantially without giving up the ability to tune each position.
Common questions
Frequently asked questions
These answers clarify the selection process without replacing project-specific documentation.
What is selectable on this fixture?
Both power and colour temperature. Each of the three bodies carries three wattage settings, and colour temperature is selectable across 3000 K, 4000 K and 5000 K.
What operating range is documented?
−20 to +60 °C with a 120° beam. Confirm the rating for the ordered configuration.
