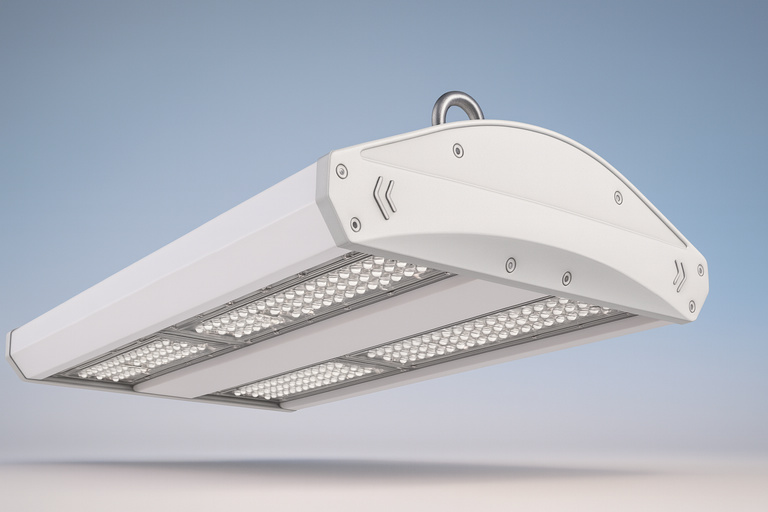

FY-HB Series food grade linear high bay.
A washdown-rated linear high bay for production areas, documented from 80 W to 300 W with an unusually wide optic set for a food-grade fixture.
FY-HB Series selection guide
FY-HB Series models and options.
Compare the documented models and options below. A family name or model reference may need additional selections before it becomes a complete product order code.
Specification comparison
FY-HB Series models and specifications.
Compare 5 documented specification rows. A row may describe a model, a model group or several selectable options; it does not necessarily represent one complete order code.
On smaller screens, scroll the table horizontally to see every specification.
| Model | Wattage | Typical lumens | Voltage | Beam options | CCT | Ratings |
|---|---|---|---|---|---|---|
| FY-HB-450C-80W | 80 W | 12,000 lm | 120 to 277 V AC, 200 to 480 V AC | 15°, 25°, 40°, 60°, 90°, 120°, 30×70°, 49×21°, 136×78° | 3000 to 6500 K | IP69K, NSF |
| FY-HB-600C-120W | 120 W | 18,000 lm | 120 to 277 V AC, 200 to 480 V AC | 15°, 25°, 40°, 60°, 90°, 120°, 30×70°, 49×21°, 136×78° | 3000 to 6500 K | IP69K, NSF |
| FY-HB-600C-160W | 160 W | 24,000 lm | 120 to 277 V AC, 200 to 480 V AC | 15°, 25°, 40°, 60°, 90°, 120°, 30×70°, 49×21°, 136×78° | 3000 to 6500 K | IP69K, NSF |
| FY-HB-600C-200W | 200 W | 30,000 lm | 120 to 277 V AC, 200 to 480 V AC | 15°, 25°, 40°, 60°, 90°, 120°, 30×70°, 49×21°, 136×78° | 3000 to 6500 K | IP69K, NSF |
| FY-HB-900C-300W | 300 W | 45,000 lm | 120 to 277 V AC, 200 to 480 V AC | 15°, 25°, 40°, 60°, 90°, 120°, 30×70°, 49×21°, 136×78° | 3000 to 6500 K | IP69K, NSF |
Confirm the exact configuration against the current manufacturer specification sheet before approval or purchase.
Engineering reference
Choosing the right FY-HB Series configuration.
Confirm the washdown pressure and chemistry first, since that decides whether this family or a vapor tight is appropriate. Then match the beam to the line layout — the asymmetric options exist for edge and aisle positions — and finally the wattage and colour temperature.
FY-HB covers tall production space where the fixture has to survive sanitation as well as light the floor. The optic list runs from a 15° spot to 120° wide and includes asymmetric distributions, which matters over lines and conveyors where a symmetric beam wastes output on walls.
Common questions
Frequently asked questions
These answers clarify the selection process without replacing project-specific documentation.
What ingress rating does this family carry?
IP69K, which covers high pressure and high temperature close-range washdown. Confirm the rating on the specific catalog number before approval.
Which beam should be used over a production line?
Asymmetric options such as 30×70° and 136×78° are available alongside symmetric beams from 15° to 120°. Asymmetric distributions suit edge and aisle mounting — confirm against your line layout.
