Product family · Food Processing

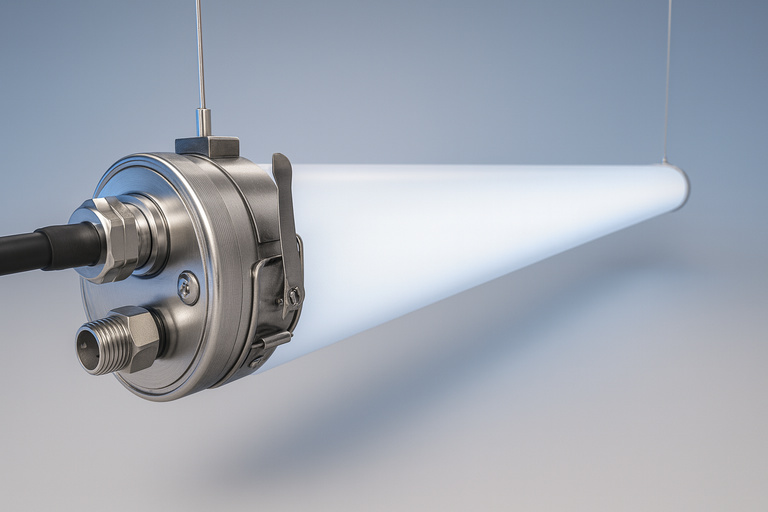

SL Series food grade vapor tight LED.
A sealed linear fixture for wet rooms and line-side tasks, documented in 2 ft and 4 ft lengths from 20 W to 60 W with NSF listing.
SL Series selection guide
SL Series models and options.
Compare the documented models and options below. A family name or model reference may need additional selections before it becomes a complete product order code.
Specification comparison
SL Series models and specifications.
Compare 7 documented specification rows. A row may describe a model, a model group or several selectable options; it does not necessarily represent one complete order code.
On smaller screens, scroll the table horizontally to see every specification.
| Model | Length | Wattage | Typical lumens | Voltage | CCT options | Beam | Ratings |
|---|---|---|---|---|---|---|---|
| SL-P69X2-20-X | 2 ft | 20 W | 2,600 lm | 100 to 277 V AC | 3000 K, 4000 K, 5000 K, 6000 K | 120° | IP69K, IK10, NSF |
| SL-P69X2-30-X | 2 ft | 30 W | 3,900 lm | 100 to 277 V AC | 3000 K, 4000 K, 5000 K, 6000 K | 120° | IP69K, IK10, NSF |
| SL-P69X4-36-X | 4 ft | 36 W | 4,680 lm | 100 to 277 V AC | 3000 K, 4000 K, 5000 K, 6000 K | 120° | IP69K, IK10, NSF |
| SL-P69X4-50-X | 4 ft | 50 W | 6,500 lm | 100 to 277 V AC | 3000 K, 4000 K, 5000 K, 6000 K | 120° | IP69K, IK10, NSF |
| SL-P69X5-45-X | 5 ft | 45 W | 5,850 lm | 100 to 277 V AC | 3000 K, 4000 K, 5000 K, 6000 K | 120° | IP69K, IK10, NSF |
| SL-P69X5-50-X | 5 ft | 50 W | 6,500 lm | 100 to 277 V AC | 3000 K, 4000 K, 5000 K, 6000 K | 120° | IP69K, IK10, NSF |
| SL-P69X5-60-X | 5 ft | 60 W | 7,800 lm | 100 to 277 V AC | 3000 K, 4000 K, 5000 K, 6000 K | 120° | IP69K, IK10, NSF |
Confirm the exact configuration against the current manufacturer specification sheet before approval or purchase.
Engineering reference
Choosing the right SL Series configuration.
Choose the length to suit the run, then the wattage for the target level at working height. Colour temperature is specifiable across four values, and the fixture is documented as linkable, so confirm the run length and feed position before ordering.
SL is the line-side counterpart to the high bay families: lower mounting, shorter runs and a cylindrical sealed body. It serves sanitary and general wet-location work equally, which is why it appears under both food processing and vapor tight — this page carries the family's complete specification.
Common questions
Frequently asked questions
These answers clarify the selection process without replacing project-specific documentation.
What lengths are documented?
The table lists 2 ft and 4 ft configurations across the 20 W to 60 W range. Confirm the exact length and wattage combination against the specification sheet.
Is this family suitable outside food areas?
Yes. It is listed under both food processing and vapor tight. The IP69K and IK10 construction suits general wet and washdown work; the NSF listing is what makes it appropriate for sanitary areas specifically.
