Product family · High Bay

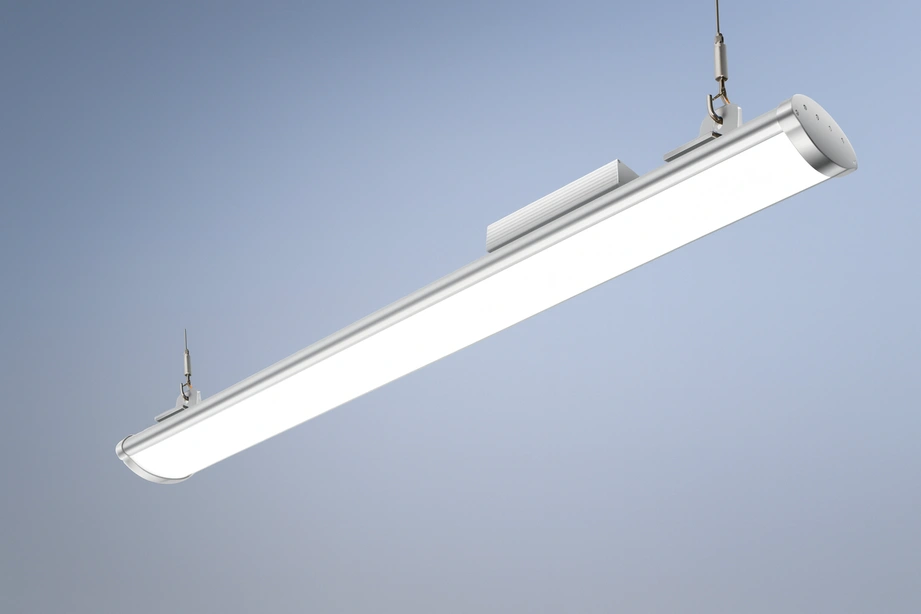

FYT Lumen Plus linear high bay, IP65.
An IP65-rated linear high bay in two wattages, documented at 150 W and 200 W for dusty and damp industrial interiors.
FYT Lumen Plus selection guide
FYT Lumen Plus models and options.
Compare the documented models and options below. A family name or model reference may need additional selections before it becomes a complete product order code.
Specification comparison
FYT Lumen Plus models and specifications.
Compare 2 documented specification rows. A row may describe a model, a model group or several selectable options; it does not necessarily represent one complete order code.
On smaller screens, scroll the table horizontally to see every specification.
| Model | Wattage | Typical Lumens | Beam | CCT | Operating Temp | IP | Lens |
|---|---|---|---|---|---|---|---|
| FYT-LP150W | 150 W | 20,000 to 22,000 lm | 120° | 3000 K, 4000 K, 5000 K, 6000 K | -40 to +45 °C | IP65 | Clear or frosted |
| FYT-LP200W | 200 W | 28,000 to 30,000 lm | 120° | 3000 K, 4000 K, 5000 K, 6000 K | -40 to +45 °C | IP65 | Clear or frosted |
Confirm the exact configuration against the current manufacturer specification sheet before approval or purchase.
Engineering reference
Choosing the right FYT Lumen Plus configuration.
Two wattages keep selection simple: confirm the target level at mounting height and choose between them. The lens choice matters more — clear for maximum output, frosted where fixtures sit in a sightline and glare is a concern.
FYT is the sealed option among the linear high bays. IP65 will not survive washdown, but it does keep dust and incidental moisture out of the optical chamber, which is the failure mode in most manufacturing environments that do not run a sanitation programme.
Common questions
Frequently asked questions
These answers clarify the selection process without replacing project-specific documentation.
What does the IP65 rating cover?
Dust ingress and low-pressure water jets. It is not a washdown rating — for high-pressure sanitation, review the vapor tight or food processing categories.
What operating range is documented?
−40 to +45 °C, with four colour temperatures from 3000 K to 6000 K and a choice of clear or frosted lens.
