Product family · High Bay

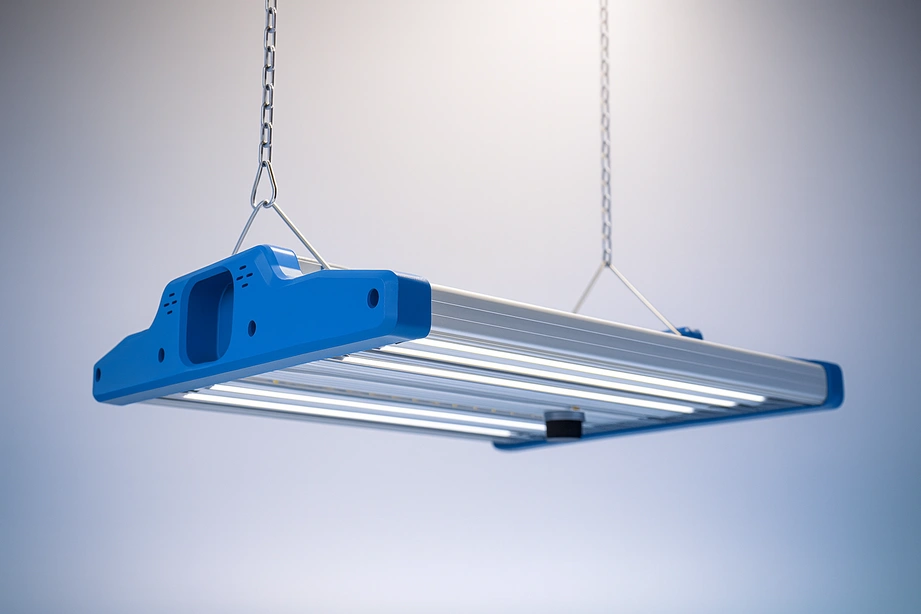

K5 high lumen linear LED high bay.
A linear high bay with three beam choices and high-voltage availability, documented from 100 W to 250 W at up to 152 lumens per watt.
K5 High Lumen selection guide
K5 High Lumen models and options.
Compare the documented models and options below. A family name or model reference may need additional selections before it becomes a complete product order code.
Specification comparison
K5 High Lumen models and specifications.
Compare 4 documented specification rows. A row may describe a model, a model group or several selectable options; it does not necessarily represent one complete order code.
On smaller screens, scroll the table horizontally to see every specification.
| Model | Wattage | Typical Lumens | Voltage | Optics | Efficacy | IP |
|---|---|---|---|---|---|---|
| HS-HB100W-K5 | 100 W | 15,200 lm | 100 to 277 V, 347, 480 | 60°, 90°, 120° | up to 152 lm/W | IP54 |
| HS-HB150W-K5 | 150 W | 22,800 lm | 100 to 277 V, 347, 480 | 60°, 90°, 120° | up to 152 lm/W | IP54 |
| HS-HB200W-K5 | 200 W | 30,400 lm | 100 to 277 V, 347, 480 | 60°, 90°, 120° | up to 152 lm/W | IP54 |
| HS-HB250W-K5 | 250 W | 38,000 lm | 100 to 277 V, 347, 480 | 60°, 90°, 120° | up to 152 lm/W | IP54 |
Confirm the exact configuration against the current manufacturer specification sheet before approval or purchase.
Engineering reference
Choosing the right K5 High Lumen configuration.
Beam angle first: 60° for tall narrow aisles, 120° for lower open bays, 90° between them. Then wattage for the target level, then voltage — the 347 and 480 V options are the reason this family appears on larger industrial services.
K5 is the linear family with genuine optical choice — 60°, 90° and 120° — where the other linear high bays publish a single distribution. Combined with 347 and 480 V availability, that suits it to larger industrial services where both the electrical infrastructure and the aisle geometry are fixed constraints.
Common questions
Frequently asked questions
These answers clarify the selection process without replacing project-specific documentation.
What beam options are documented?
60°, 90° and 120° across the wattage range. Narrower beams suit taller mounting and narrower aisles; wider beams suit lower, more open bays.
What ingress rating does K5 carry?
IP54, which suits dusty or damp interiors but not washdown. For wet or washdown areas, review the vapor tight category instead.
