Product family · High Bay

LS-5EHB UFO high bay LED lights.

The most efficient high bay documented in this catalogue at 180 lumens per watt, offered from 100 W to 240 W in a round UFO body.

Request a quote Call (866) 860-6399
LS-5EHB LS-5EHB UFO High Bay LED Lights
UFO high bay · 100 W to 240 W · 180 lm/W

LS-5EHB selection guide

LS-5EHB models and options.

Compare the documented models and options below. A family name or model reference may need additional selections before it becomes a complete product order code.

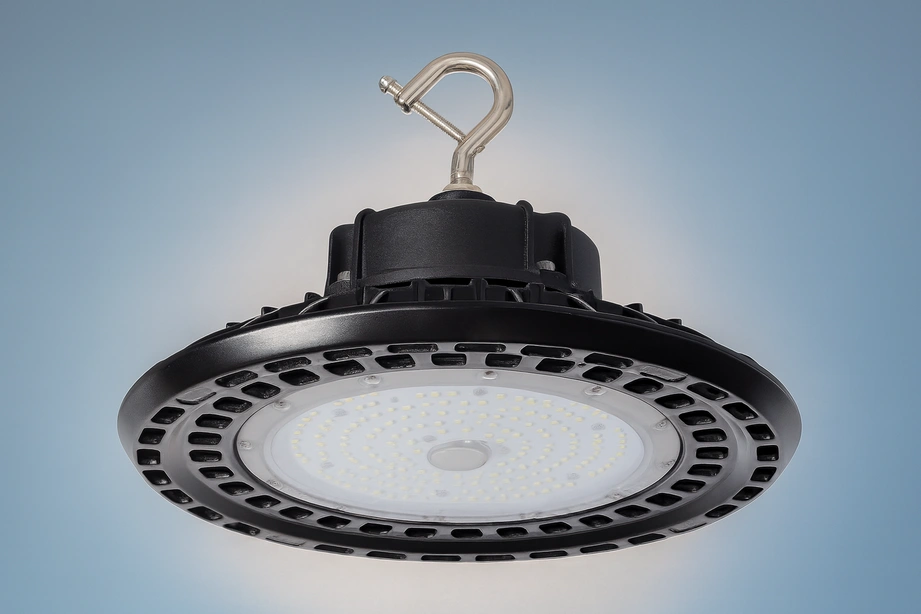

LS-5EHB LS-5EHB UFO High Bay LED Lights
Family reference image; appearance may vary by model and selected options.
  1. LS-5EHB100W-XXKWattage: 100 WTypical Lumens: 18,000 lm
  2. LS-5EHB150W-XXKWattage: 150 WTypical Lumens: 27,000 lm
  3. LS-5EHB200W-XXKWattage: 200 WTypical Lumens: 36,000 lm
  4. LS-5EHB240W-XXKWattage: 240 WTypical Lumens: 43,200 lm
  5. LS-5EHB100WHV-XXKWattage: 100 WTypical Lumens: 18,000 lm
  6. LS-5EHB150WHV-XXKWattage: 150 WTypical Lumens: 27,000 lm
  7. LS-5EHB200WHV-XXKWattage: 200 WTypical Lumens: 36,000 lm
  8. LS-5EHB240WHV-XXKWattage: 240 WTypical Lumens: 43,200 lm

For a quote or submittal, include the model reference and required options from the specification table. Our team will confirm the complete order code and current documentation.

Specification comparison

LS-5EHB models and specifications.

Compare 8 documented specification rows. A row may describe a model, a model group or several selectable options; it does not necessarily represent one complete order code.

On smaller screens, scroll the table horizontally to see every specification.

LS-5EHB UFO High Bay LED Lights, 180 lm/W, 120 to 480 V
ModelWattageTypical LumensVoltageCCTBeam
LS-5EHB100W-XXK100 W18,000 lm120 to 277 V3000 K, 4000 K, 5000 K120°
LS-5EHB150W-XXK150 W27,000 lm120 to 277 V3000 K, 4000 K, 5000 K120°
LS-5EHB200W-XXK200 W36,000 lm120 to 277 V3000 K, 4000 K, 5000 K120°
LS-5EHB240W-XXK240 W43,200 lm120 to 277 V3000 K, 4000 K, 5000 K120°
LS-5EHB100WHV-XXK100 W18,000 lm277 to 480 V3000 K, 4000 K, 5000 K120°
LS-5EHB150WHV-XXK150 W27,000 lm277 to 480 V3000 K, 4000 K, 5000 K120°
LS-5EHB200WHV-XXK200 W36,000 lm277 to 480 V3000 K, 4000 K, 5000 K120°
LS-5EHB240WHV-XXK240 W43,200 lm277 to 480 V3000 K, 4000 K, 5000 K120°

Confirm the exact configuration against the current manufacturer specification sheet before approval or purchase.

Engineering reference

Choosing the right LS-5EHB configuration.

Confirm the layout is open floor rather than racked — if it is racked, the linear families suit better. Then set mounting height and target level, choose the wattage, and confirm the voltage band, since 277 to 480 V is documented alongside 120 to 277 V.

LS-5EHB suits open floor rather than racked aisles: a 120° round distribution covers area efficiently but puts light on the tops of shelves in a racked layout. At 180 lumens per watt it is the efficacy leader in the range, which is what makes it the default for large uninterrupted spaces.

Common questions

Frequently asked questions

These answers clarify the selection process without replacing project-specific documentation.

When should a UFO high bay be used instead of a linear?

UFO high bays suit open floor and large uninterrupted areas where a round distribution covers efficiently. Racked aisles and production lines usually want a linear optic that runs along the path.

What efficacy is documented?

180 lumens per watt across the family, reaching up to 43,200 lumens at 240 W. Confirm the figure for the exact configuration ordered.
