Product family · High Bay

LS-LHBV2 linear high bay LED lights.

A linear high bay for racked aisles and production lines, documented at 110 W, 165 W and 220 W with tunable colour temperature.

Request a quote Call (866) 860-6399

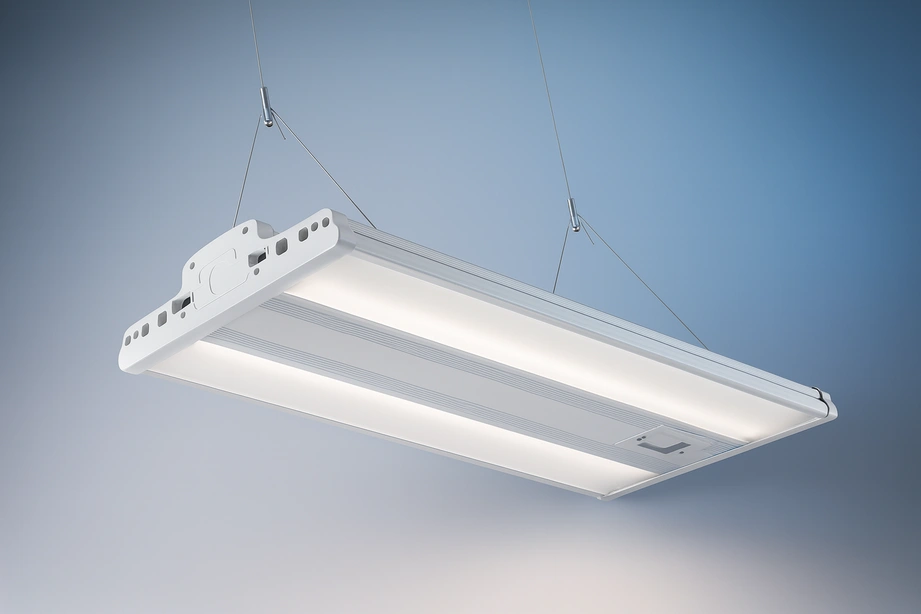

LS-LHBV2 LS-LHBV2 Linear High Bay LED Lights
Linear high bay · 110 W to 220 W · CCT tunable

LS-LHBV2 configurations

Every documented LS-LHBV2 configuration.

One family, every configuration: the fixture is shown at full size, with each available configuration listed below and specified line by line in the ordering table.

LS-LHBV2 LS-LHBV2 Linear High Bay LED Lights
  1. LS-LHBV2-110W-XXKWattage: 110 W15,400 lm
  2. LS-LHBV2-165W-XXKWattage: 165 W23,100 lm
  3. LS-LHBV2-220W-XXKWattage: 220 W30,800 lm

Ordering data

Every documented LS-LHBV2 configuration.

All 3 configurations of the family are specified on this page, so you can compare wattages, outputs and options side by side.

LS-LHBV2 Linear High Bay LED Lights, 110 to 220 W, 140 lm/W
ModelWattageTypical LumensVoltageCCTBeam
LS-LHBV2-110W-XXK110 W15,400 lm120 to 277 V4000 K or 5000 K106°
LS-LHBV2-165W-XXK165 W23,100 lm120 to 277 V4000 K or 5000 K106°
LS-LHBV2-220W-XXK220 W30,800 lm120 to 277 V4000 K or 5000 K106°

Confirm the exact configuration against the current manufacturer specification sheet before approval or purchase.

Engineering reference

Selecting within the LS-LHBV2 family.

Confirm the aisle geometry and mounting height, then choose from the three documented wattages. Because colour temperature is tunable, it does not need deciding at order — but the dimming strategy does, since 0 to 10 V control is documented.

The 106° linear distribution is the point of this family: it runs light along an aisle rather than spreading it in a circle, which is what racking and production lines need. Colour temperature is tunable rather than fixed at order, so one part number covers areas with different appearance requirements.

Common questions

Useful answers before the next step.

These answers clarify the selection process without replacing project-specific documentation.

What does CCT tunable mean on this fixture?

The table documents 4000 K or 5000 K as selectable on the fixture rather than fixed at order, so one part number serves areas with different appearance requirements.

How many wattages are available?

Three: 110 W, 165 W and 220 W, at 15,400, 23,100 and 30,800 lumens respectively.
