Product family · High Temperature

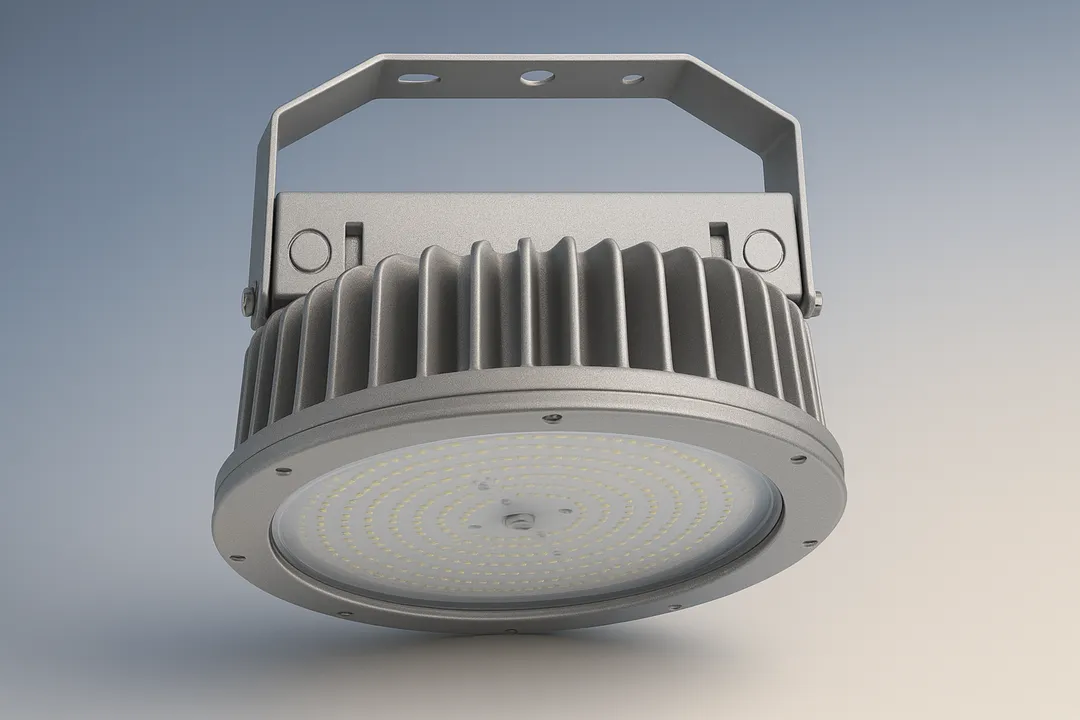

RT-HPH high temperature round high bay.
A single-configuration round high bay for hot bays, documented at 240 W and 31,200 lumens with a 120° distribution and an 80 °C ambient ceiling.
RT-HPH selection guide
RT-HPH models and options.
Compare the documented models and options below. A family name or model reference may need additional selections before it becomes a complete product order code.
Specification comparison
RT-HPH models and specifications.
Compare 1 documented specification row. A row may describe a model, a model group or several selectable options; it does not necessarily represent one complete order code.
On smaller screens, scroll the table horizontally to see every specification.
| Model | Wattage | Typical Lumens | Voltage | Optics | Operating Temp | Key Ratings |
|---|---|---|---|---|---|---|
| HPH240UC RT-HPH High Temperature Round High Bay | 240 W | 31,200 lm | 100 to 277 V AC, 200 to 480 V option | 120° wide distribution | 40°C to 80°C ambient, 10 to 90 percent RH | IP66, 130 lm per W, 0 to 10 V dimming, power factor greater than 0.9, DLC Standard, cULus, 5 year warranty |
Confirm the exact configuration against the current manufacturer specification sheet before approval or purchase.
Engineering reference
Choosing the right RT-HPH configuration.
There is one configuration, so selection is a yes or no against the ambient and mounting. Confirm the measured ambient sits inside the documented range and that the 120° distribution suits the mounting height before ordering.
RT-HPH is a one-model family rather than a wattage ladder. It exists to put a conventional round high bay form factor into a bay that a standard high bay cannot survive, which is why it is listed under both high temperature and high bay.
Common questions
Frequently asked questions
These answers clarify the selection process without replacing project-specific documentation.
Is more than one wattage available in this family?
No. The family is a single 240 W configuration at 31,200 lumens. If you need wattage flexibility in a hot bay, look at the EDGE or RT-IL families instead.
Why does RT-HPH appear under both high temperature and high bay?
It serves both selection paths — a high bay that happens to tolerate heat, or a high temperature fixture that happens to be a round high bay. Either way, this is the family's complete specification.
