RT-IL 150°C industrial and oven installations
Real project photographs document a 100 W industrial installation and 50 W fixtures inside an industrial oven.
Explore RT-IL 150°C industrial and oven installationsProduct family · High Temperature

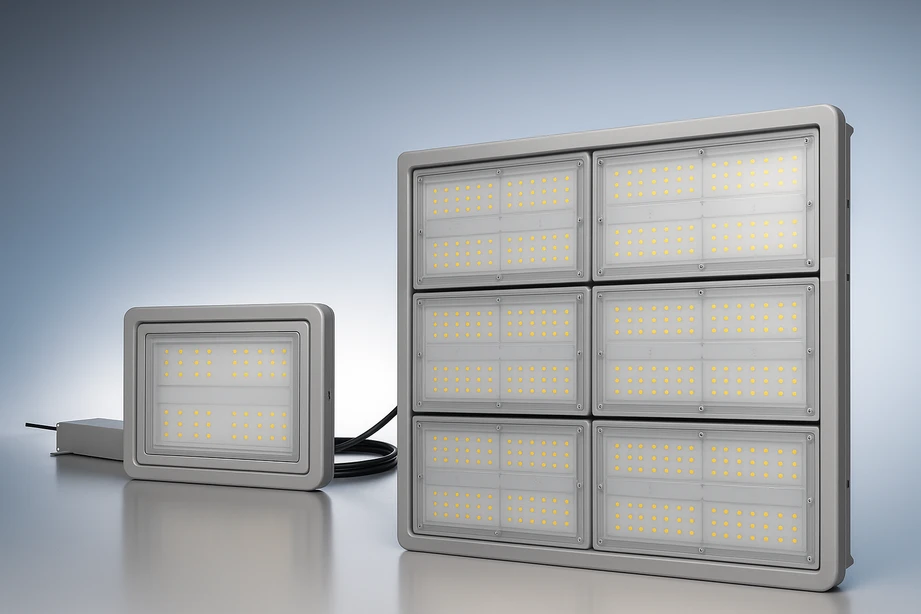

RT-IL-150C ultra high temperature LED.
The highest ambient tier documented in this catalogue — a 150 °C light head with the driver mounted remotely, from 50 W to 500 W.
External driver · light head to 150 °C
RT-IL-150C selection guide
RT-IL-150C 5000 K ordering codes.
Compare the documented models and options below. A family name or model reference may need additional selections before it becomes a complete product order code.
Specification comparison
RT-IL-150C models and specifications.
Compare 7 documented specification rows. A row may describe a model, a model group or several selectable options; it does not necessarily represent one complete order code.
On smaller screens, scroll the table horizontally to see every specification.
| Wattage reference | Wattage | Typical lumens | Voltage | Beam options | CCT | Operating temp (light head) | Driver temp rating | Ratings |
|---|---|---|---|---|---|---|---|---|
| RT-IL-150C-50 | 50 W | 7,500 lm | 90 to 295 V AC or 249 to 528 V AC | 10°, 25°, 40°, 60°, 90° | 2700 to 6500 K, custom 1500 to 10000 K | -40 to +150°C (302°F) | External driver: up to +100°C (212°F); keep outside hotter areas | IP67 |
| RT-IL-150C-100 | 100 W | 15,000 lm | 90 to 295 V AC or 249 to 528 V AC | 10°, 25°, 40°, 60°, 90° | 2700 to 6500 K, custom 1500 to 10000 K | -40 to +150°C (302°F) | External driver: up to +100°C (212°F); keep outside hotter areas | IP67 |
| RT-IL-150C-150 | 150 W | 22,500 lm | 90 to 295 V AC or 249 to 528 V AC | 10°, 25°, 40°, 60°, 90° | 2700 to 6500 K, custom 1500 to 10000 K | -40 to +150°C (302°F) | External driver: up to +100°C (212°F); keep outside hotter areas | IP67 |
| RT-IL-150C-200 | 200 W | 30,000 lm | 90 to 295 V AC or 249 to 528 V AC | 10°, 25°, 40°, 60°, 90° | 2700 to 6500 K, custom 1500 to 10000 K | -40 to +150°C (302°F) | External driver: up to +100°C (212°F); keep outside hotter areas | IP67 |
| RT-IL-150C-300 | 300 W | 45,000 lm | 90 to 295 V AC or 249 to 528 V AC | 10°, 25°, 40°, 60°, 90° | 2700 to 6500 K, custom 1500 to 10000 K | -40 to +150°C (302°F) | External driver: up to +100°C (212°F); keep outside hotter areas | IP67 |
| RT-IL-150C-400 | 400 W | 60,000 lm | 90 to 295 V AC or 249 to 528 V AC | 10°, 25°, 40°, 60°, 90° | 2700 to 6500 K, custom 1500 to 10000 K | -40 to +150°C (302°F) | External driver: up to +100°C (212°F); keep outside hotter areas | IP67 |
| RT-IL-150C-500 | 500 W | 75,000 lm | 90 to 295 V AC or 249 to 528 V AC | 10°, 25°, 40°, 60°, 90° | 2700 to 6500 K, custom 1500 to 10000 K | -40 to +150°C (302°F) | External driver: up to +100°C (212°F); keep outside hotter areas | IP67 |
Confirm the exact configuration against the current manufacturer specification sheet before approval or purchase.
Product order codes
Specify the exact 5000 K configuration.
Choose one complete code for the required wattage and voltage. HT150C identifies the 150°C light-head rating; the driver remains limited to 100°C.
On smaller screens, scroll the table horizontally to view every column.
| Product code | Wattage | Voltage | Color temperature |
|---|---|---|---|
| RT-IL-50W-HT150C-5000K-90-295V | 50 W | 90–295 V AC | 5000 K |
| RT-IL-50W-HT150C-5000K-249-528V | 50 W | 249–528 V AC | 5000 K |
| RT-IL-100W-HT150C-5000K-90-295V | 100 W | 90–295 V AC | 5000 K |
| RT-IL-100W-HT150C-5000K-249-528V | 100 W | 249–528 V AC | 5000 K |
| RT-IL-150W-HT150C-5000K-90-295V | 150 W | 90–295 V AC | 5000 K |
| RT-IL-150W-HT150C-5000K-249-528V | 150 W | 249–528 V AC | 5000 K |
| RT-IL-200W-HT150C-5000K-90-295V | 200 W | 90–295 V AC | 5000 K |
| RT-IL-200W-HT150C-5000K-249-528V | 200 W | 249–528 V AC | 5000 K |
| RT-IL-300W-HT150C-5000K-90-295V | 300 W | 90–295 V AC | 5000 K |
| RT-IL-300W-HT150C-5000K-249-528V | 300 W | 249–528 V AC | 5000 K |
| RT-IL-400W-HT150C-5000K-90-295V | 400 W | 90–295 V AC | 5000 K |
| RT-IL-400W-HT150C-5000K-249-528V | 400 W | 249–528 V AC | 5000 K |
| RT-IL-500W-HT150C-5000K-90-295V | 500 W | 90–295 V AC | 5000 K |
| RT-IL-500W-HT150C-5000K-249-528V | 500 W | 249–528 V AC | 5000 K |
The model labels above identify wattage configurations. Use these complete codes for quotes and submittals. Other documented color temperatures, beam angles, cable lengths and mounts are confirmed at quote.
Engineering reference
Choosing the right RT-IL-150C configuration.
Confirm the ambient at the light head and, separately, that a driver location inside its own 100 °C limit is available within the cable run. Then choose wattage, voltage, colour temperature and beam. Consider the 100 °C RT-IL family only where the installation ambient stays within that family's rating.

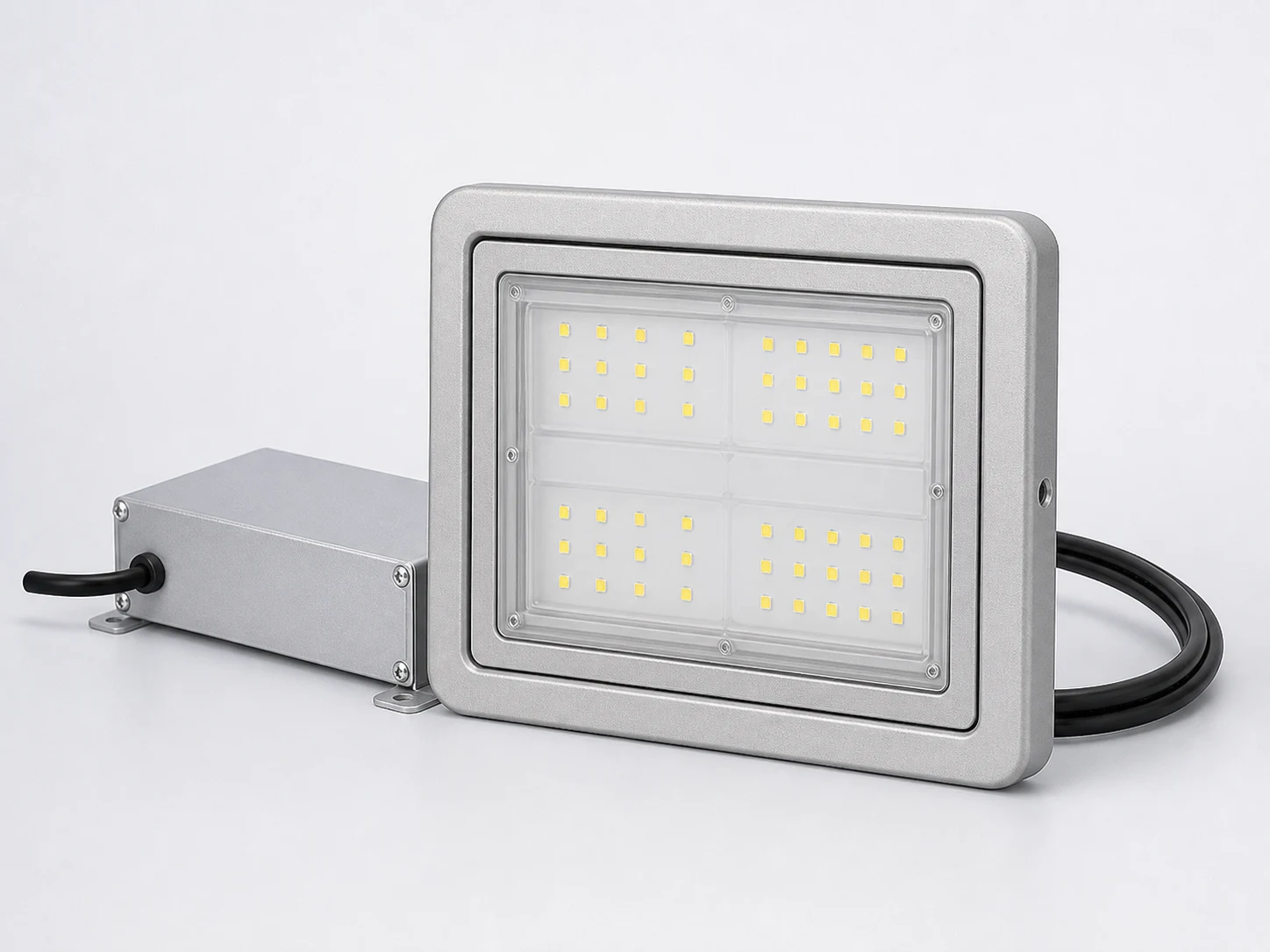

At 150 °C the driver can no longer sit with the LEDs, so this family separates the two. The light head is rated to 150 °C while the driver carries its own limit of 100 °C and mounts away from the heat. That single decision changes the installation more than any other specification in the family.

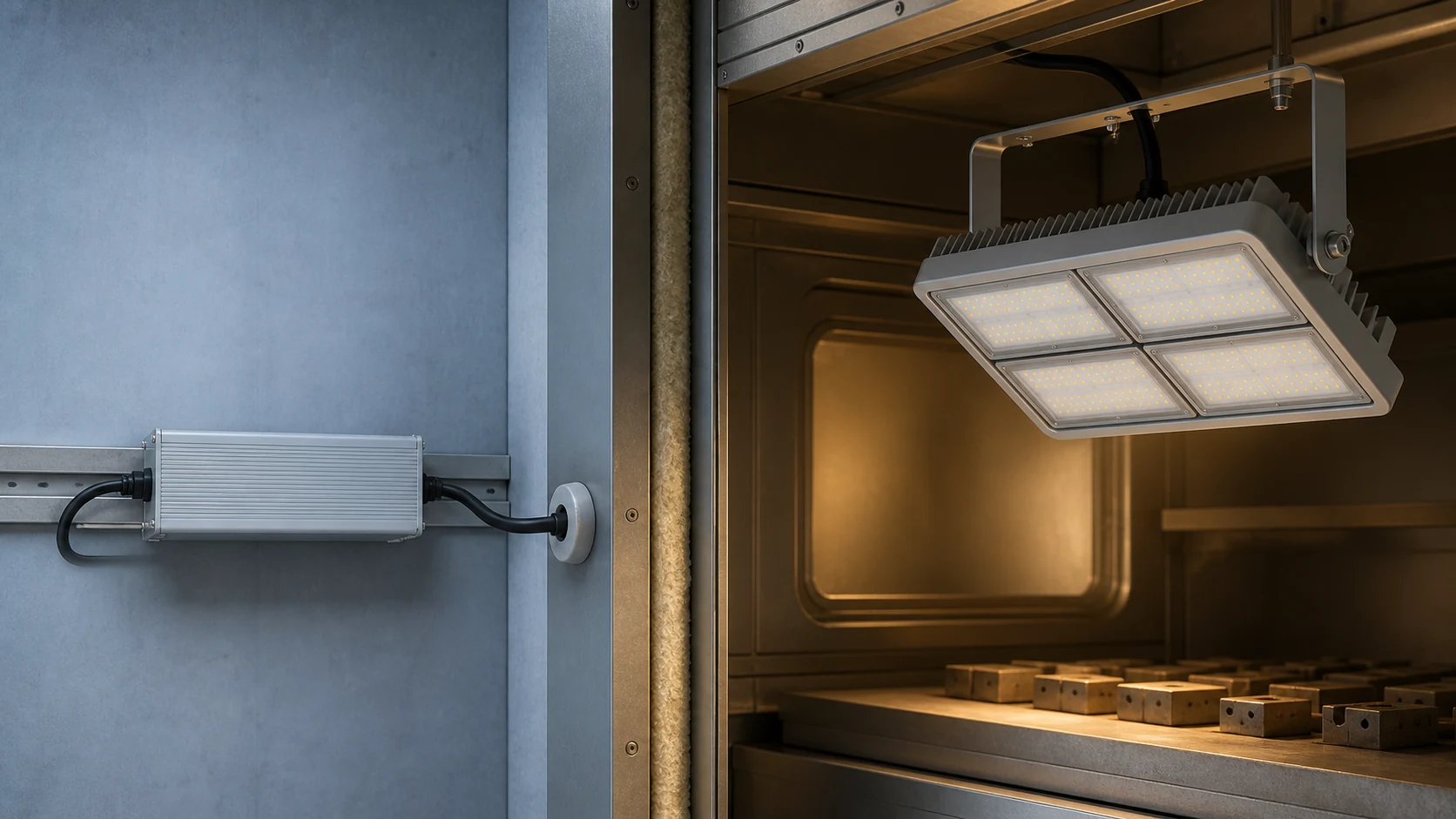

Installation guidance
Separate the driver from the heat before selecting the mount.
The light head and driver operate under different temperature limits. Read the thermal boundary first, then confirm the mounting method and cable path.
External driver Cooler zone · ≤100°C / 212°F
Light head Hot zone · ≤150°C / 302°F
Installed in the field
See this family in a documented application.
Open the field note for real installation photographs and the application details supplied with the project record.
Common questions
Frequently asked questions
These answers clarify the selection process without replacing project-specific documentation.
Why does this family use an external driver?
The light head is rated to 150 °C — beyond the driver's own 100 °C rating — so the driver mounts remotely where the ambient is lower. Plan the driver location and cable run before installation.
What is the difference between this family and RT-IL 100 °C?
This family uses an external driver and rates the light head to 150 °C, with seven wattages from 50 W to 500 W. The RT-IL 100 °C family has modular and COBB designs with different configuration ranges. Compare the selected design's sheet; the families are not interchangeable in a 150 °C environment.
What temperature range is the light head rated for?
The table documents −40 °C to +150 °C (302 °F) for the light head, with the driver rated to +100 °C (212 °F). Both limits need checking against their respective mounting positions.
