Product family · Vapor Tight

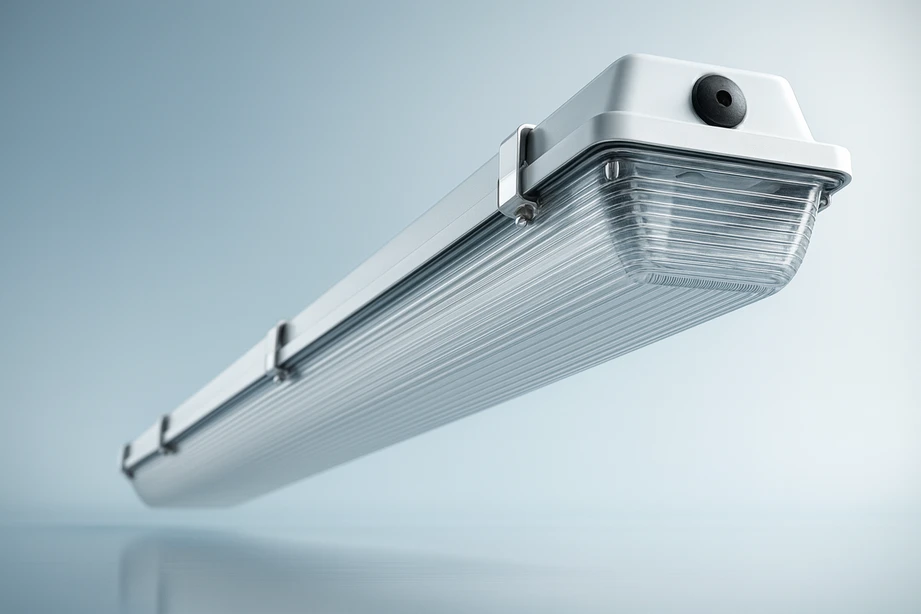

CIT2 LED vapor tight for wet locations.
A sealed linear platform for wet, washdown and corrosive areas, documented from 17 W to 140 W across 2 ft, 4 ft and 8 ft bodies.
CIT2 selection guide
CIT2 models and options.
Compare the documented models and options below. A family name or model reference may need additional selections before it becomes a complete product order code.
Specification comparison
CIT2 models and specifications.
Compare 6 documented specification rows. A row may describe a model, a model group or several selectable options; it does not necessarily represent one complete order code.
On smaller screens, scroll the table horizontally to see every specification.
| Model | Wattage | Typical Lumens | Voltage | Optics | Operating Temp | Key Ratings |
|---|---|---|---|---|---|---|
| CIT2-LED-2FT-17 | 17 W | 3,166 lm | 0 to 10 V dimmable driver, per build | Frosted, Polycarb, Silver reflector | Not specified, verify per application | IP65, IP66, IP67, NEMA 4X, NSF, UL |
| CIT2-LED-2FT-39 | 39 W | 6,452 lm | 0 to 10 V dimmable driver, per build | Frosted, Polycarb, Silver reflector | Not specified, verify per application | IP65, IP66, IP67, NEMA 4X, NSF, UL |
| CIT2-LED-4FT-37 | 37 W | 6,910 lm | 0 to 10 V dimmable driver, per build | Frosted, Wide reflector option | Not specified, verify per application | IP65, IP66, IP67, NEMA 4X, NSF, UL |
| CIT2-LED-4FT-70 | 70 W | 11,797 lm | 0 to 10 V dimmable driver, per build | Frosted, Wide reflector option | Not specified, verify per application | IP65, IP66, IP67, NEMA 4X, NSF, UL |
| CIT2-LED-8FT-96 | 96 W | 17,280 lm | 0 to 10 V dimmable driver, per build | Frosted, Wide reflector option | Not specified, verify per application | IP65, IP66, IP67, NEMA 4X, NSF, UL |
| CIT2-LED-8FT-140 | 140 W | 23,594 lm | 0 to 10 V dimmable driver, per build | Frosted, Wide reflector option | Not specified, verify per application | IP65, IP66, IP67, NEMA 4X, NSF, UL |
Confirm the exact configuration against the current manufacturer specification sheet before approval or purchase.
Engineering reference
Choosing the right CIT2 configuration.
Confirm the exposure first: wet, washdown or corrosive, and whether cleaning is manual or high pressure. Then choose the length and wattage, then the optic. A silver reflector concentrates output downward where a frosted lens spreads it, which is the difference between an aisle and a general area.
CIT2 is the general-purpose vapor tight in the range. Three optic choices — frosted, polycarbonate and silver reflector — change the distribution substantially in the same housing, so the lens is as much a specification decision as the wattage.
Common questions
Frequently asked questions
These answers clarify the selection process without replacing project-specific documentation.
What operating temperature is documented?
The manufacturer does not publish a blanket operating range for this family — the ambient is confirmed per application. Check your conditions against the current specification sheet rather than assuming a range.
How do the three optics differ?
The table lists frosted, polycarbonate and silver reflector. The reflector concentrates output downward, the frosted lens diffuses it more widely. Choose against the task and mounting height rather than defaulting.
Does CIT2 carry an NSF listing?
NSF options are documented for this family, which is why it also appears under food processing. Confirm the listing applies to the exact configuration ordered.
