Product family · Vapor Tight

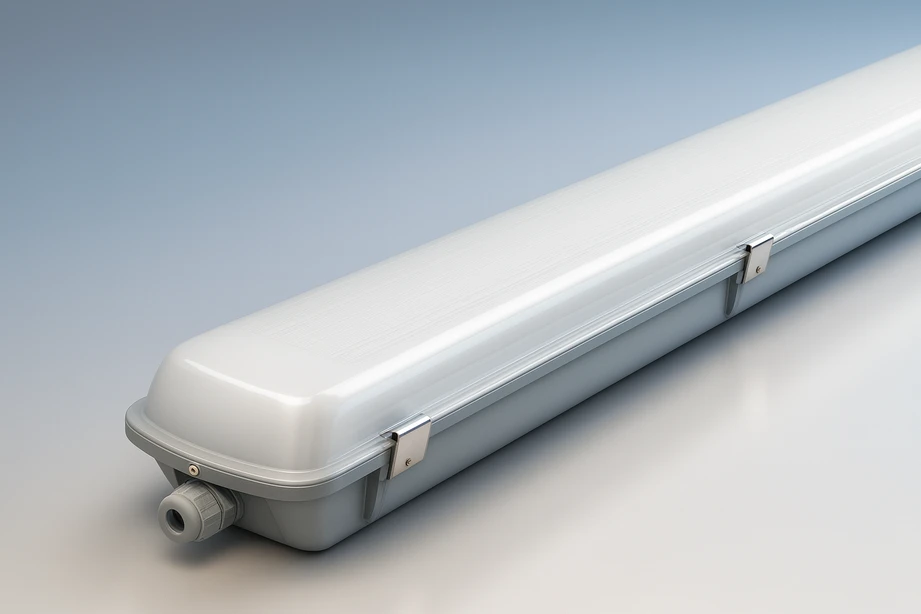

LS-VT vapor tight LED, multi-watt.
A 4-foot multi-watt vapor tight with field-selectable output, documented from 40 W to 60 W with DLC Premium listing.
LS-VT selection guide
LS-VT models and options.
Compare the documented models and options below. A family name or model reference may need additional selections before it becomes a complete product order code.
Specification comparison
LS-VT models and specifications.
Compare 3 documented specification rows. A row may describe a model, a model group or several selectable options; it does not necessarily represent one complete order code.
On smaller screens, scroll the table horizontally to see every specification.
| Configuration | Wattage | Typical Lumens | Voltage | Optics | Operating Temp | Key Ratings |
|---|---|---|---|---|---|---|
| 40 W setting | 40 W | 5,400 lm | 100 to 277 V | 110° beam, opal prismatic lens | -4°F to 104°F | DLC Premium, ETL, 50,000 h |
| 50 W setting | 50 W | 6,750 lm | 100 to 277 V | 110° beam, opal prismatic lens | -4°F to 104°F | DLC Premium, ETL, 50,000 h |
| 60 W setting | 60 W | 8,100 lm | 100 to 277 V | 110° beam, opal prismatic lens | -4°F to 104°F | DLC Premium, ETL, 50,000 h |
Confirm the exact configuration against the current manufacturer specification sheet before approval or purchase.
Engineering reference
Choosing the right LS-VT configuration.
Confirm the target level at working height and set the wattage accordingly — all three settings ship in the same fixture. The 110° opal prismatic lens is the only optic documented for this family, so if the application needs a narrower distribution, the CIT families are the alternative.
LS-VT trades the CIT platform's lens choice for field-selectable wattage in a single 4-foot body. Where a project needs one part number across areas with different light-level targets, the multi-watt switch does the work that separate catalog numbers would otherwise require.
Common questions
Frequently asked questions
These answers clarify the selection process without replacing project-specific documentation.
What does multi-watt mean on this fixture?
The table documents 40 W to 60 W as selectable settings within one fixture rather than separate models, so a single part number covers the range. Confirm the switching method on the specification sheet.
What operating range is documented?
−4 °F to 104 °F, alongside a 50,000 hour rating and DLC Premium listing. Confirm against the ordered configuration.
