R5 slim body vapor tight LED fixture.
A slim-profile vapor tight with selectable wattage at every length, documented from 15 W to 125 W across 2 ft, 4 ft and 8 ft bodies.
R5 Slim Body configurations
Every documented R5 Slim Body configuration.

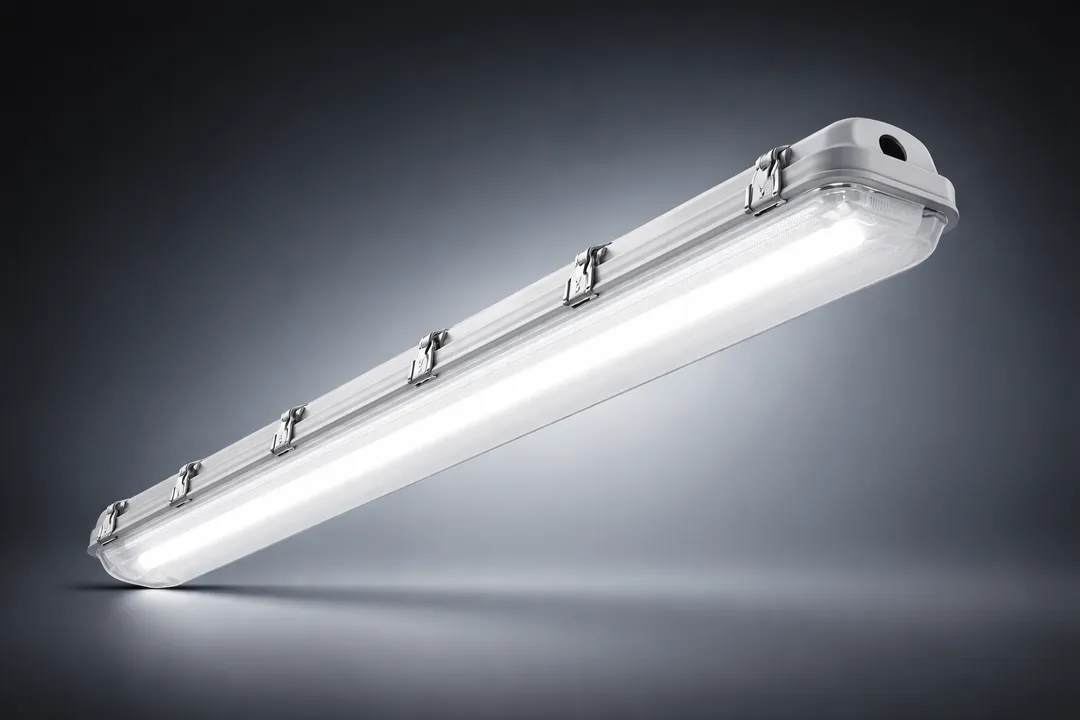

One family, every configuration: the fixture is shown at full size, with each available configuration listed below and specified line by line in the ordering table.
Ordering data
Every documented R5 Slim Body configuration.
All 13 configurations of the family are specified on this page, so you can compare wattages, outputs and options side by side.
| Model | Series | Wattage | Typical Lumens | Efficacy | Voltage | Optics | Operating Temp | Key Ratings |
|---|---|---|---|---|---|---|---|---|
| R5-2VTA25WD(HV1)3P-3CK | 2 ft · DLC 5.1 | 25/20/15 W (selectable) | 3,500 lm | 140 lm/W | 120 to 277 V (std), 120 to 347 V (opt) | Built-in lens (std), Milky or Anti-glare lens (opt) | -40°C to +40°C | NSF, IP66, IP69K, NEMA 4X, IK10 |
| R5-4VTA35WD(HV1)3P-3CK | 4 ft · DLC 5.1 | 35/28/20 W (selectable) | 4,900 lm | 140 lm/W | 120 to 277 V (std), 120 to 347 V (opt) | Built-in lens (std), Milky or Anti-glare lens (opt) | -40°C to +40°C | NSF, IP66, IP69K, NEMA 4X, IK10 |
| R5-4VTA46WD(HV1)3P-3CK | 4 ft · DLC 5.1 | 46/38/30 W (selectable) | 6,440 lm | 140 lm/W | 120 to 277 V (std), 120 to 347 V (opt) | Built-in lens (std), Milky or Anti-glare lens (opt) | -40°C to +40°C | NSF, IP66, IP69K, NEMA 4X, IK10 |
| R5-4VTA60WD(HV1)3P-3CK | 4 ft · DLC 5.1 | 60/45/30 W (selectable) | 8,400 lm | 140 lm/W | 120 to 277 V (std), 120 to 347 V (opt) | Built-in lens (std), Milky or Anti-glare lens (opt) | -40°C to +40°C | NSF, IP66, IP69K, NEMA 4X, IK10 |
| R5-4VTA50WD(HV1)3P-3CK | 4 ft new · DLC 6.0, non-isolated driver | 50/40/30 W (selectable) | 7,500 lm | 150 lm/W | 120 to 277 V (std), 120 to 347 V (opt) | Built-in lens (std), Milky or Anti-glare lens (opt) | -40°C to +40°C | NSF, IP66, IP69K, NEMA 4X, IK10 |
| R5-4VTA60WD(HV1)3P-3CK | 4 ft new · DLC 6.0, non-isolated driver | 60/45/30 W (selectable) | 9,000 lm | 150 lm/W | 120 to 277 V (std), 120 to 347 V (opt) | Built-in lens (std), Milky or Anti-glare lens (opt) | -40°C to +40°C | NSF, IP66, IP69K, NEMA 4X, IK10 |
| R5-4VTA75WD(HV1)3P-3CK | 4 ft new · DLC 6.0, non-isolated driver | 75/60/45 W (selectable) | 11,250 lm | 150 lm/W | 120 to 277 V (std), 120 to 347 V (opt) | Built-in lens (std), Milky or Anti-glare lens (opt) | -40°C to +40°C | NSF, IP66, IP69K, NEMA 4X, IK10 |
| R5-8VTA65WD(HV1)3P-3CK | 8 ft · DLC 5.1 | 65/55/45 W (selectable) | 9,750 lm | 140 lm/W | 120 to 277 V (std), 120 to 347 V (opt) | Built-in lens (std), Milky or Anti-glare lens (opt) | -40°C to +40°C | NSF, IP66, IP69K, NEMA 4X, IK10 |
| R5-8VTA90WD(HV1)4P-3CK | 8 ft · DLC 5.1 | 90/75/65/55 W (selectable) | 12,600 lm | 140 lm/W | 120 to 277 V (std), 120 to 347 V (opt) | Built-in lens (std), Milky or Anti-glare lens (opt) | -40°C to +40°C | NSF, IP66, IP69K, NEMA 4X, IK10 |
| R5-8VTA110WD(HV1)4P-3CK | 8 ft · DLC 5.1 | 110/90/75/65 W (selectable) | 15,400 lm | 140 lm/W | 120 to 277 V (std), 120 to 347 V (opt) | Built-in lens (std), Milky or Anti-glare lens (opt) | -40°C to +40°C | NSF, IP66, IP69K, NEMA 4X, IK10 |
| R5-8VTA80WD(HV1)3P-3CK | 8 ft new · DLC 6.0, non-isolated driver | 80/65/55 W (selectable) | 12,800 lm | 160 lm/W | 120 to 277 V (std), 120 to 347 V (opt) | Built-in lens (std), Milky or Anti-glare lens (opt) | -40°C to +40°C | NSF, IP66, IP69K, NEMA 4X, IK10 |
| R5-8VTM100WD(HV1)3P-3CK | 8 ft new · DLC 6.0, non-isolated driver | 100/80/60 W (selectable) | 16,000 lm | 160 lm/W | 120 to 277 V (std), 120 to 347 V (opt) | Built-in lens (std), Milky or Anti-glare lens (opt) | -40°C to +40°C | NSF, IP66, IP69K, NEMA 4X, IK10 |
| R5-8VTM125WD(HV1)3P-3CK | 8 ft new · DLC 6.0, non-isolated driver | 125/100/75 W (selectable) | 20,000 lm | 160 lm/W | 120 to 277 V (std), 120 to 347 V (opt) | Built-in lens (std), Milky or Anti-glare lens (opt) | -40°C to +40°C | NSF, IP66, IP69K, NEMA 4X, IK10 |
Confirm the exact configuration against the current manufacturer specification sheet before approval or purchase.
Engineering reference
Selecting within the R5 Slim Body family.
Choose the length, then the configuration whose selectable steps bracket the target level. Lens options are built-in, milky or anti-glare, which matters where the fixture sits in a sightline. Confirm the voltage band, since 120 to 347 V is an option rather than standard.
R5 is the widest vapor tight family in the range — thirteen documented configurations across two driver generations, each with selectable wattage steps. The original DLC 5.1 series runs at 140 lm/W; the newer DLC 6.0 non-isolated-driver series reaches 150 to 160 lm/W.
