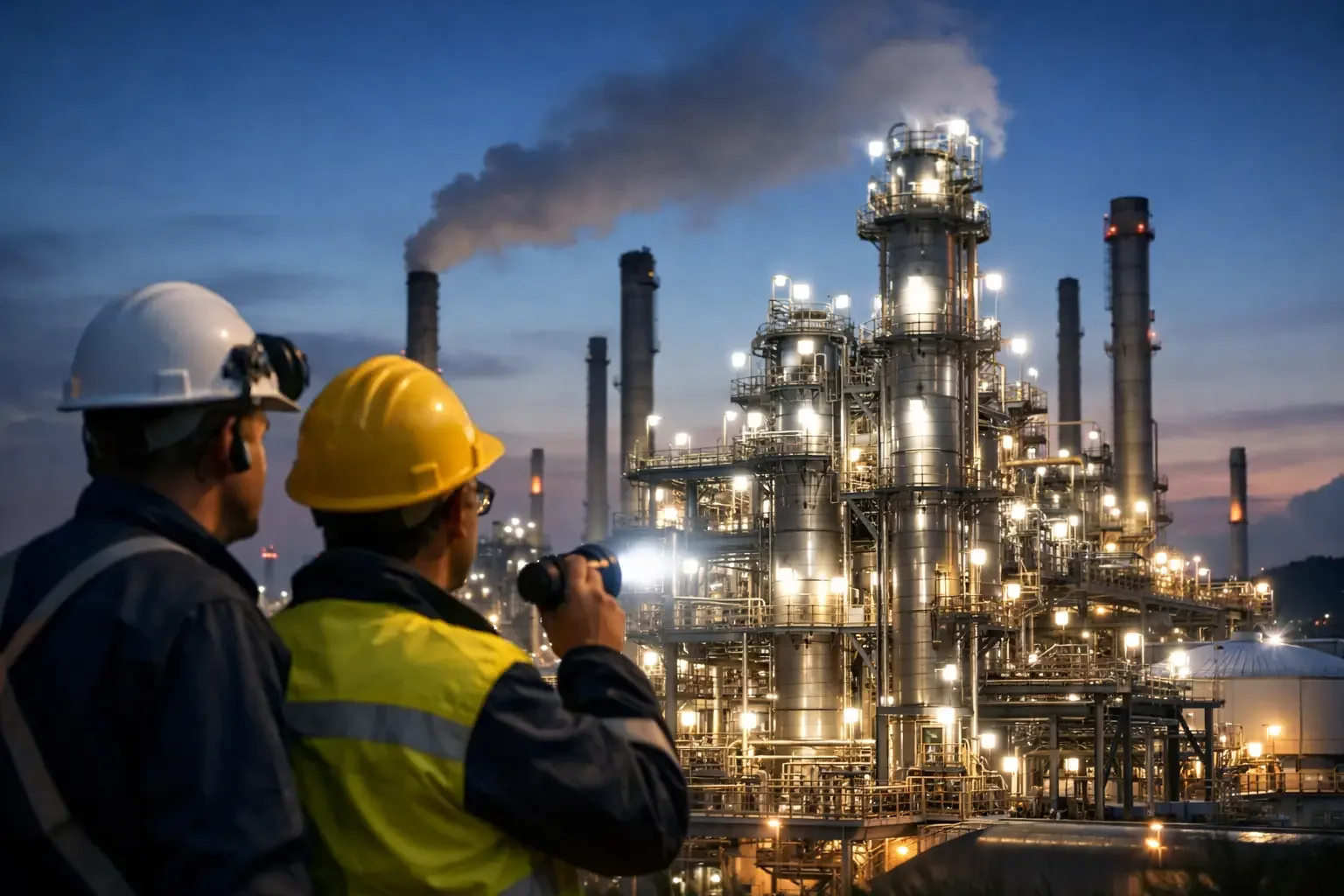

A refinery lighting upgrade example is most useful when it starts with the operating conditions, not a fixture catalog. Consider an aging crude-unit and tank-farm lighting system with corroded HID fixtures, inconsistent illumination at grade, frequent lamp and ballast failures, and maintenance work occurring near classified process areas. The objective is not simply to replace metal halide with LED. It is to improve visibility, reduce exposure during maintenance, preserve hazardous-location compliance, and provide documentation that supports the electrical design and project submittal.
For a refinery project involving classified areas, request a fixture review from Maes Lighting for explosion-proof lighting matched to the area classification, ambient temperature, mounting arrangement, and required light levels. A proper review can identify where explosion-proof luminaires are necessary, where vapor-tight equipment may be appropriate in unclassified support spaces, and which cut sheets, certifications, and photometric files should be included before procurement.
The Starting Condition: More Than Poor Light
In this refinery lighting upgrade example, the facility had a mix of 400-watt metal halide floodlights, aging high bays in maintenance areas, and several enclosed fixtures around pump skids and access platforms. Many fixtures still operated, but their output had declined substantially. Lens yellowing, dirt accumulation, and inconsistent lamp performance created dark pockets on stairs, handrails, valves, and equipment identification points.
The maintenance burden was equally significant. Relamping a fixture mounted on a pipe rack or structure required permits, access equipment, coordination with operations, and personnel time in active process areas. A failed lamp or ballast was therefore not a minor inconvenience. It created a work order, a potential safety concern, and sometimes a delayed repair when access could not be safely scheduled.
The site also needed to account for different environmental zones. Hydrocarbon-processing areas required fixtures suitable for the applicable Class I hazardous location classification. Exterior roads, loading areas, and unclassified maintenance buildings had different requirements. Treating every location as identical would either create an unnecessary budget burden or leave the facility with equipment that was not appropriate for its environment.
How the Upgrade Scope Was Built
The first step was a field survey organized by area rather than by fixture count. The project team documented mounting heights, existing wattage, branch circuits, voltage, mounting hardware, aiming direction, obstructions, and likely exposure to vibration, salt, chemical vapor, dust, or washdown. They also noted whether fixtures were installed in classified locations and verified the governing classification with the facility's electrical drawings and area-classification documentation.
This distinction matters because an LED fixture's advertised brightness does not establish its suitability for a refinery. The selected luminaire must carry the required hazardous-location markings for the specific location, while its temperature code must be compatible with the material group and site requirements. Ambient temperature ratings also require attention. A fixture that performs well at ordinary outdoor temperatures may not be appropriate near hot process equipment, in direct sun, or where elevated ambient conditions are expected.
Lighting levels were then evaluated by task. Pipe-rack walkways required dependable horizontal illumination for safe access. Stairs and platforms needed vertical light that made handrails, step edges, gauges, and labels easier to see. Pump and valve areas needed controlled glare as well as adequate light. Floodlighting was evaluated with aiming and shielding in mind so the new fixtures would not put excessive brightness into an operator's line of sight or create spill toward roads and neighboring operations.
Fixture Selection by Area
For classified exterior process areas, explosion-proof LED luminaires and floodlights were selected based on classification, mounting height, beam distribution, lumen package, and environmental exposure. The goal was to replace poor-performing HID equipment with fewer watts while maintaining useful light where technicians actually work. In a refinery, a higher lumen output is not automatically better if it causes glare, shadows, or uneven coverage around structural steel.
Unclassified but wet, dusty, or corrosive locations used vapor-tight fixtures where the enclosure and ingress protection suited the application. These can be effective in electrical rooms, workshops, covered loading spaces, utility corridors, and other support areas, but they should not be substituted for hazardous-location equipment where an explosion-proof listing is required.
Maintenance-shop high bays were evaluated separately. A high bay with the right optical distribution can improve work-plane visibility and reduce the number of fixtures needed, but mounting height, racking, overhead cranes, and reflective surfaces affect the final layout. Exterior perimeter and roadway locations used LED floodlights selected for mounting geometry and controlled distribution rather than a simple one-for-one wattage conversion.
The Documentation That Kept the Project Moving
The upgrade was approved more efficiently because the fixture package was assembled before the purchase order stage. Each selected product was supported with a datasheet, hazardous-location certification information where applicable, mounting details, electrical characteristics, and photometric files for the lighting calculation. This gave the engineer, contractor, and owner a common technical record instead of requiring clarifications after equipment had arrived on site.
Documentation also helped separate fixture suitability from installation responsibility. The luminaire listing and ratings need to align with the specified environment, but field installation must still comply with the National Electrical Code, facility standards, wiring-method requirements, grounding practices, and local authority requirements. Junction boxes, conduit seals, glands, supports, and circuit protection all remain part of the compliant system.
For projects with domestic-content requirements, procurement should verify the exact Buy America Act status at the model level. The Explosion Proof IR1, IR3, IR4, and IR7 series are covered under the Buy America Act. The CIT models in the vapor-tight product line are also covered. That distinction should be documented early, particularly when project schedules, public funding, or owner specifications require specific domestic-preference evidence.
Installation Strategy: Keep the Unit Operating
The refinery did not attempt a facility-wide shutdown for lighting. Instead, installation was planned in work packages tied to operating areas and access windows. Crews replaced fixtures during scheduled maintenance periods, using temporary lighting where necessary to maintain safe access. Existing poles, brackets, and structural mounting points were inspected before reuse, since corrosion or vibration damage can undermine even a well-selected fixture.
Aiming was treated as a commissioning task, not an afterthought. After dark, the team checked walkways, platforms, valve stations, and access points for shadows and glare. Several floodlights were re-aimed to improve uniformity near a pump area. This was a small adjustment with a practical payoff: technicians could see work surfaces without looking directly into the source.
The project also used circuit-level controls where operationally appropriate. Photocells and scheduling can reduce unnecessary runtime in perimeter areas, while critical process and emergency routes may require different control logic. Controls should support operational needs without creating uncertainty during night work, emergency response, or maintenance activities.
Results That Matter in Refinery Service
The most immediate improvement was consistent visibility. Operators and maintenance personnel had better light on access routes, equipment labels, stairs, and work zones. The LED system also reduced connected load compared with the legacy HID installation, but energy reduction was not the only value driver. Longer service life meant fewer relamping events, less lift-equipment use, and fewer maintenance entries into difficult locations.
There were trade-offs. Higher-output fixtures may require additional glare control. Some legacy mounting locations need adapters or structural reinforcement. A direct fixture replacement can also reveal inadequate circuit capacity, deteriorated conduit, or poor grounding that must be corrected before energization. These are not reasons to delay an upgrade. They are reasons to survey thoroughly and specify the project as a complete field installation rather than a box-for-box purchase.
A refinery lighting upgrade succeeds when the new system helps people perform routine work safely, supports the site's hazardous-location requirements, and reduces avoidable maintenance exposure. The right fixture is the one that fits the classified area, the environment, the task, and the documentation requirements - then continues performing after heat, weather, vibration, and process demands have tested it.
